Access Point|MIKROTIK|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|1xUSB 2.0|5x10/100M|RB951UI-2HND

About this product

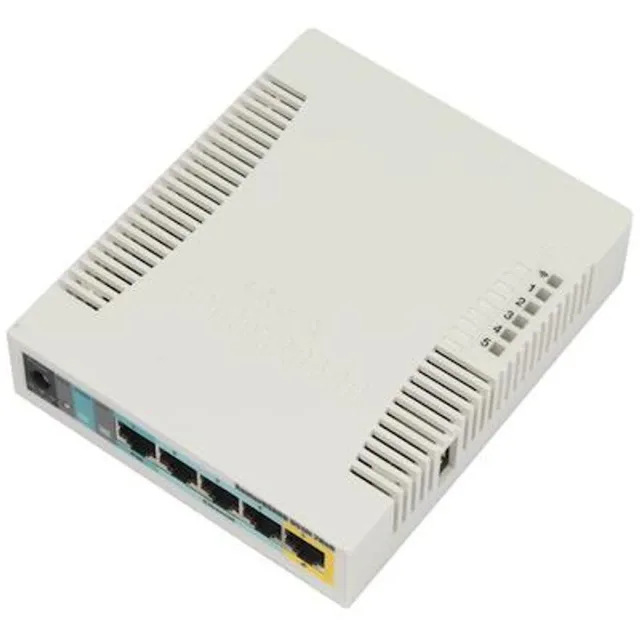

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied
to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Specifications

Unit Calculated Weight: 0.43 kg
Unit Calculated Volume: 0.00174 cubm
Units per Shipping Box: 1
Summary: Mikrotik RB951Ui-2HnD. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 7 W
Vendor Homepage: https://routerboard.com/RB951Ui-2HnD
Category Code: WAP
Unit Box Height: 0.145
Unit Box Length: 0.2
Unit Box Width: 0.06
Model name: RB951Ui-2HnD // RB951Ui-2HnD

Features

2.4 GHz: Yes
Ethernet LAN data rates: 10/100 Mbit/s
Frequency band: 2.4 GHz
Modulation: 16-QAM/64-QAM/BPSK/CCK/DBPSK/DQPSK/DSSS/OFDM/QPSK
Networking standards: IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3u
Receiver sensitivity: 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s<br/> 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5
USB 2.0 ports quantity: 1
USB connector type: USB Type-A

Power

AC input voltage: 7 - 31 V
Power consumption (max): 7 W
Power over Ethernet (PoE): Yes

Design

Housing material: Plastic
Internal: No
LED indicators: Yes
Product colour: White

Antenna

Antenna gain level (max): 2.5 dBi
Antenna type: Internal

Performance

Built-in processor: Yes
Internal memory: 128 MB
Internal memory type: DDR2
Processor frequency: 600 MHz
Processor model: Qualcomm Atheros AR9344-DC3A

Weight & dimensions

Depth: 113 mm
Height: 29 mm
Width: 138 mm

Packaging content

Bundled software: MikroTik RouterOS

Operational conditions

Operating temperature (T-T): -20 - 50 °C

Logistics data

Harmonized System (HS) code: 85176990

Identifiers

Brand: MIKROTIK
Categories: Networking
Model: RB951UI-2HND
EAN: 4752224001146
