ASUS

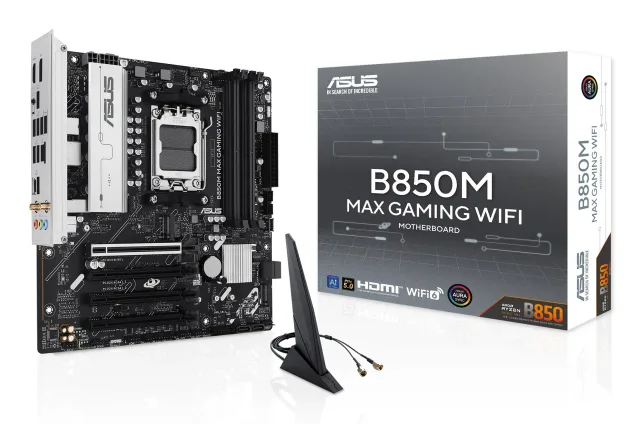

Mainboard|ASUS|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|2xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|B850MMAXGAMINGWIFI
About this product
B850M MAX GAMING WIFI
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
- Unit Calculated Weight
- 1.52 kg
- Unit Calculated Volume
- 0.006259 cubm
- Units per Shipping Box
- 10
- Summary
- ASUS B850M MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- Vendor Homepage
- https://www.asus.com/motherboards-components/motherboards/others/b850m-max-gaming-wifi/
- Category Code
- MBA
- Unit Box Height
- 0.27
- Unit Box Length
- 0.275
- Unit Box Width
- 0.07
- Model
- B850M MAX GAMING WIFI
Features
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- AMD B850
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64/Windows 11
Processor
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
Memory
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 3
Rear panel I/O ports
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Line-in
- Yes
- Microphone in
- Yes
- USB 2.0 ports quantity
- 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 1
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
Expansion slots
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 3.0
- 3rd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 3
- PCI Express x16 (Gen 4.x) slots
- 3
- PCI Express x16 (Gen 5.x) slots
- 1
BIOS
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
Packaging data
- Package depth
- 275 mm
- Package height
- 67.5 mm
- Package weight
- 1383 g
- Package width
- 275 mm
Weight & dimensions
- Depth
- 244 mm
- Width
- 244 mm
Packaging content
- Antenna included
- Yes
- Cables included
- SATA
- Screws included
- Yes
Other features
- Weight
- 859 g
Identifiers
- Brand
- ASUS
- Categories
- Components
- Model
- B850M MAX GAMING WIFI
- EAN
- 4711636062343
