Processor family Intel B760, Processor socket 1 x LGA1700 Socket
Processor family Intel B760, Processor socket 1 x LGA1700 Socket, 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered, Supported hard disk drive interfaces SATA-600 (RAID), 3 x M.2, Number of SATA connectors 4
Asus · 4711387469798
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387469798
- Brand
- Asus
Description

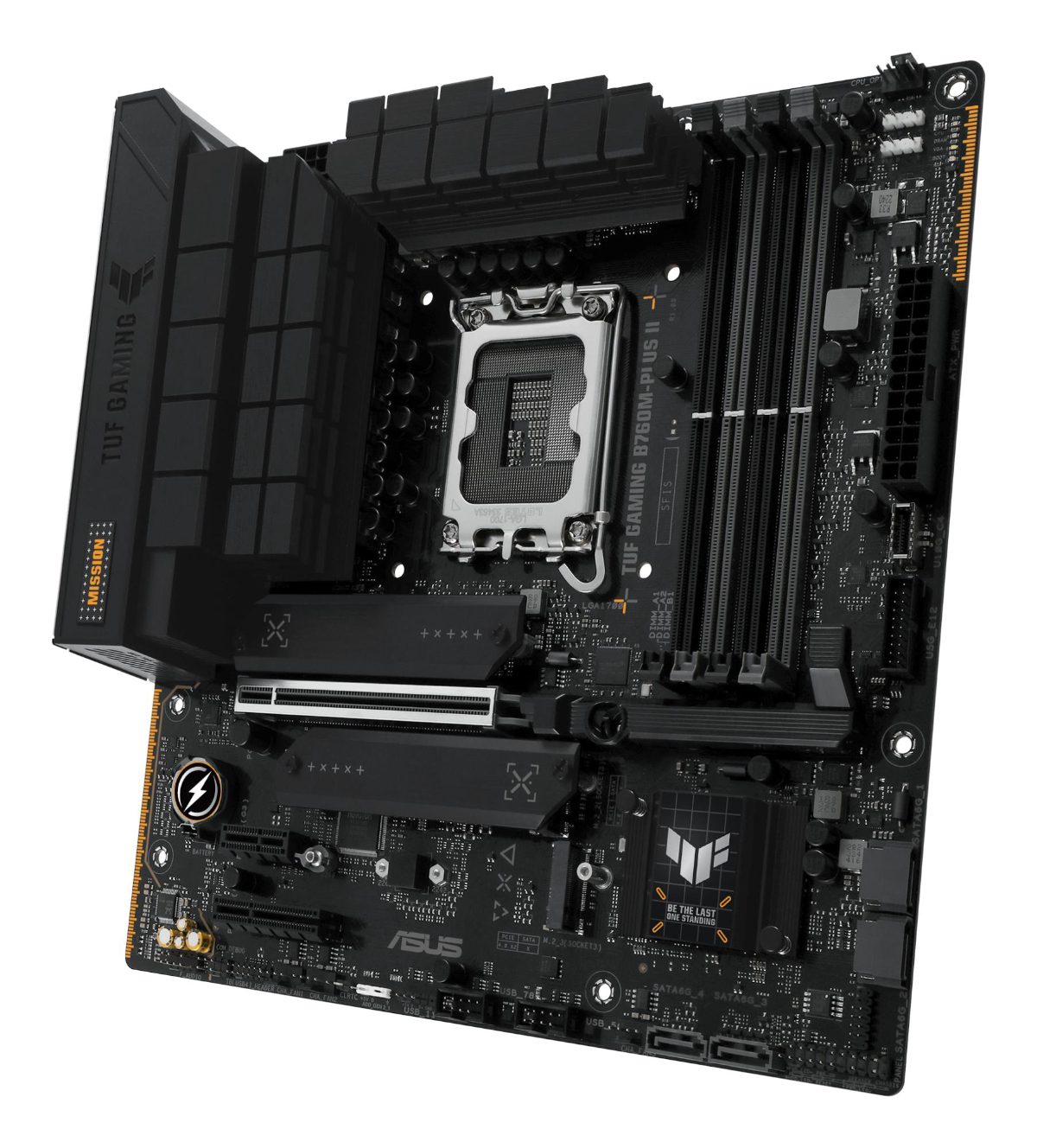

TUF GAMING B760M-PLUS II
TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 192 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7800 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Fan connector count | 3 |
| SATA connectors | 4 |
| Thunderbolt headers | 1 |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 1 |
| USB 3.2 Gen 2 connectors | 1 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| Headphone outputs | 1 |
| Microphone input | Yes |
| S/PDIF out connector | Yes |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| M.2 slot count | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Height | 50 mm |
| Width | 244 mm |
| Cables included | SATA |
| Screws included | Yes |
| Weight | 982 g |
| Model | TUF GAMING B760M-PLUS II |
