ASUS
Mainboard|ASUS|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|6xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 3.0|4xUSB 3.1|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|ROGMAXIMUSZ890HERO
About this product

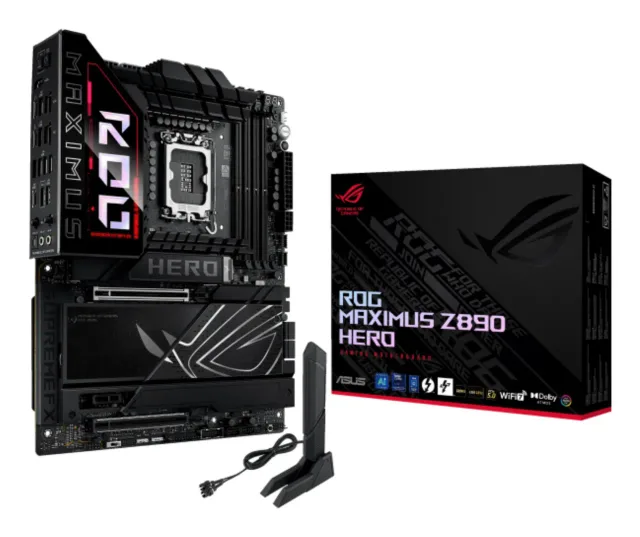

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Specifications
- Unit Calculated Weight
- 3.42 kg
- Unit Calculated Volume
- 0.01486 cubm
- Units per Shipping Box
- 4
- Summary
- ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Vendor Homepage
- https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
- Category Code
- MBI
- Unit Box Height
- 0.31
- Unit Box Length
- 0.37
- Unit Box Width
- 0.11
- Model
- ROG MAXIMUS Z890 HERO
Features
- Audio chip
- Realtek ALC4082
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel Z890
- Motherboard chipset family
- Intel
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 11
Processor
- Compatible processor series
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
Memory
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 192 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8800 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 10
- RAID levels
- 0/1/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
Graphics
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 4
- Number of SATA III connectors
- 4
- Thunderbolt headers
- 1
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
Rear panel I/O ports
- Ethernet LAN (RJ-45) ports
- 2
- HDMI ports quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- Thunderbolt ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB connector type
- USB Type-A/USB Type-C
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 2.5 Gigabit Ethernet/5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
Expansion slots
- Number of M.2 (M) slots
- 6
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
BIOS
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
Packaging data
- Package depth
- 312 mm
- Package height
- 108 mm
- Package width
- 370 mm
Weight & dimensions
- Depth
- 244 mm
- Width
- 305 mm
Identifiers
- Brand
- ASUS
- Categories
- Components
- Model
- ROG MAXIMUS Z890 HERO
- EAN
- 4711387747223
