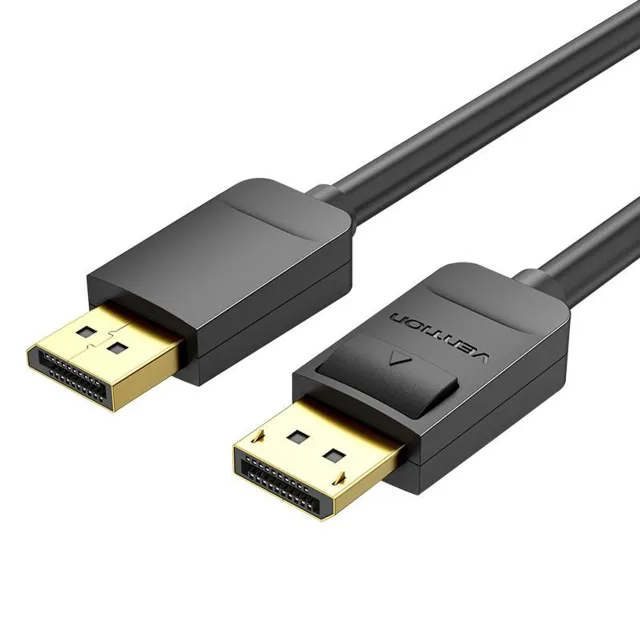

CABLE DP 2M/HACBH VENTION
About this product
- DP Cable:DisplayPort to DisplayPort cable allows you to connect a DisplayPort from Laptops to a High-Res Monitor or projector with Display input
- Extension and Mirroring:DisplayPort cables transmit High definition audio and video. The DisplayPort cable connects and configures your monitor for an extended desktop or mirrored displays
- 4K Resolution:DisplayPort cables of 1.2 support video resolutions up to 4K and 1080P, as well as uncompressed digital 7.1, 5.1 or 2-channel perfect audio pass-through
- High Performance:It is made of Alumium foil shielding and metal braid shielding to ensure interference-free signal transmission
- Card hook design:The DisplayPort connector has a card hook to provide secure connection with the port. Press the button down before unplugging the connector
DP1.2 HD Cable
DP male to male connection
DP1.2 / 144Hz
Bandwidth up to 21.6Gbps
4K Incredible Clear Picture
Support 3840*2160
Immersive 3D Effect
Support general 3D format Dual video streaming output
Audio and Video Synchronization
DP Laptop to DP Monitor
Multi-screen Expansion
Triple Shielding
Picture is stable without distortion
Anti-loosing Design
Press the hook button when pulling out
Applicable Device
Support the connection between DP devices
Specifications
- Unit Calculated Weight
- 0.12 kg
- Unit Calculated Volume
- 0.001425 cubm
- Units per Shipping Box
- 1
- Units per Pallet
- 0
- Summary
- Vention DP Cable 2M Black. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7 mm. Quantity per pack: 1 pc(s)
- Vendor Homepage
- https://ventiontech.com/products/dp-cable-black?_pos=1&_psq=HACBF&_ss=e&_v=1.0&variant=43162141458598
- Category Code
- CDP
- Unit Box Height
- 0.25
- Unit Box Length
- 0.03
- Unit Box Width
- 0.19
- Model
- HACBH
Features
- 3D
- Yes
- AWG wire size
- 30
- Cable length
- 2 m
- Cable material
- Copper
- Cable shielding
- Aluminum mylar foil
- Cable type
- Round cable
- Channels quantity
- 7.1 channels
- Connector 1
- DisplayPort
- Connector 1 form factor
- Straight
- Connector 1 gender
- Male
- Connector 1 lockable
- Yes
- Connector 2
- DisplayPort
- Connector 2 form factor
- Straight
- Connector 2 gender
- Male
- Connector 2 lockable
- Yes
- Connector contacts plating
- Gold
- Connector housing material
- Acrylonitrile butadiene styrene (ABS)
- Data transfer rate
- 21.6 Gbit/s
- DisplayPort version
- 1.2
- Jacket material
- Polyvinyl chloride (PVC)
- Magnetically shielded
- Yes
- Maximum refresh rate
- 144 Hz
- Maximum resolution
- 3840 x 2160 pixels
- Number of shielding layers
- 3
- Plug and Play
- Yes
- Product colour
- Black
- Supported video modes
- 1080p/2160p
Weight & dimensions
- Cable diameter
- 7 mm
Packaging content
- Quantity per pack
- 1 pc(s)
Identifiers
- Brand
- VENTION
- Categories
- Cables & Adapters
- Model
- HACBH
- EAN
- 6922794733299
