GIGABYTE

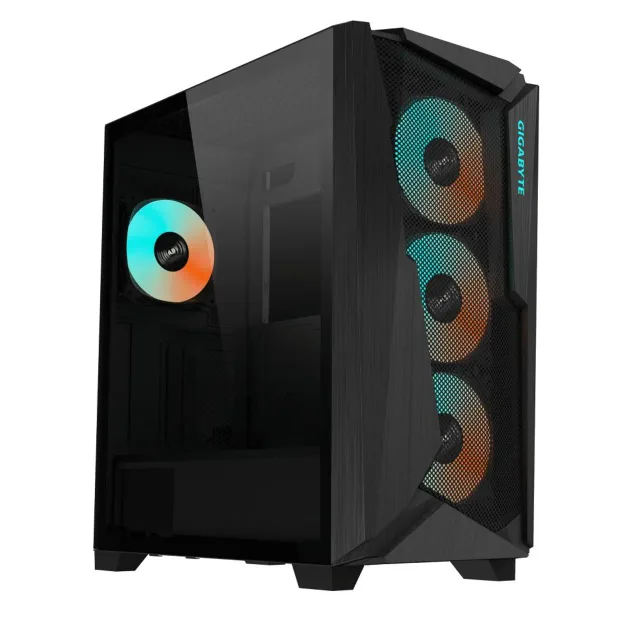

Case|GIGABYTE|C301G V2 BLACK|MidiTower|Case product features Transparent panel|Not included|ATX|EATX|MicroATX|MiniITX|Colour Black|C301GV2

About this product

KEY FEATURE
Optimized Airflow Design
RGB Fusion with ARGB Connector Hub
Support Motherboards up to E-ATX
Up to 360mm Liquid Cooling Compatible
Support Vertical GPU Installation
Full-Size Tempered Glass Side Panel
With USB 3.0 x2 and USB 3.1 Type-C x1 on I/O panel
Pre-installed 4 ARGB & PWM fans

OPTIMIZED AIRFLOW DESIGN
The GIGABYTE C301 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow for optimized cooling with premium aesthetics.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices.

ARGB CONNECTOR HUB
The built-in ARGB connector hub is equipped with six 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.

MAX COMPATIBILITY
The GIGABYTE C301 GLASS can fit up to E-ATX motherboards, up to seven 120mm fan support, and up to 360mm radiator, providing users with the upmost flexibility.

TEMPERED GLASS SIDE PANEL
Built with 4mm black tempered glass on side panel, GIGABYTE C301 GLASS is an attractive, versatile chassis that can be a stunning showpiece for your PC parts. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.

PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.

DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top magnetic filter, along with the removable filter at the bottom, make maintenance easy.

I/O PANEL
Equipped with a USB 3.1 Type-C port
two USB 3.0 ports
audio ports
a RGB LED switch and a power button



Specifications

Unit Calculated Weight
9 kg
Unit Calculated Volume
0.08146 cubm
Units per Shipping Box
1
Summary
GIGABYTE C301 GLASS. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 282 mm, Depth: 530 mm, Height: 530 mm
Vendor Homepage
https://www.gigabyte.com/PC-Case/GB-C301G-TYPE-C#kf
Category Code
CAS
Unit Box Height
0.53
Unit Box Length
0.53
Unit Box Width
0.29
Cooling & Ventilation System
Pre-installed Fan
Case product features
Transparent panel
Model name
C301 GLASS

Design

Anti-dust filter
Yes
Cable management
Yes
Form factor
Midi Tower
Illumination
Yes
Illumination colour
Blue/Green/Red
Illumination location
PSU fan
LED indicators
Yes
Material
Glass/Plastic/Steel
Number of 2.5" bays
2
Number of 3.5" bays
2
Number of expansion slots
7
On/off button
Yes
Product colour
Black
Reset button
Yes
Side window
Yes
Suitable for
Gaming
Supported motherboard form factors
ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s)
Yes
Type
PC

Power supply

Power supply included
No
Power supply location
Bottom
Supported power supply form factors
ATX

Ports & interfaces

Audio input
Yes
Audio output
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

Cooling

Front fans diameters supported
120/140 mm
Front fans installed
3x 120 mm
Number of front fans supported (max)
3
Number of rear fans supported (max)
1
Number of top fans supported (max)
3
Rear fans diameters supported
120/140 mm
Rear fans installed
1x 120 mm
Rear radiator sizes supported
140 mm
Top fans diameters supported
120/140 mm
Top radiator sizes supported
360 mm

Storage

Supported HDD sizes
2.5/3.5 "

Weight & dimensions

Depth
530 mm
Height
530 mm
Weight
7800 g
Width
282 mm

Packaging data

Package weight
9000 g

Identifiers

Brand
GIGABYTE
Categories
Components
Model
C301GV2
EAN
4719331553463
