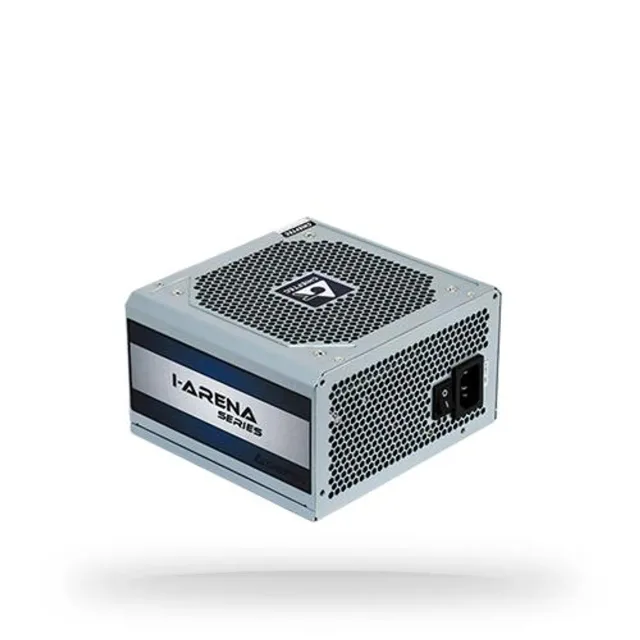

CASE PSU ATX 700W/GPC-700S CHIEFTEC

About this product

In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.

Specifications

Unit Calculated Weight: 1.65 kg
Unit Calculated Volume: 0.004671 cubm
Units per Shipping Box: 10
Units per Pallet: 0
Summary: Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Vendor Homepage: https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html
Category Code: PSU
Unit Box Height: 0.21
Unit Box Length: 0.145
Unit Box Width: 0.09

Power

AC input frequency: 50 Hz
AC input voltage: 230 V
Combined power (+3.3V): 130 W
Combined power (+5Vsb): 12.5 W
Input current: 6.3 A
Max output current (+12V1): 52.5 A
Max output current (+3.3V): 22 A
Max output current (+5V): 22 A
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.3 A
Power Factor Correction (PFC) type: Active
Power protection features: Over voltage/Overload/Short circuit/Under voltage
Total power: 700 W

Ports & interfaces

Cabling type: Non-Modular
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2

Performance

ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
Purpose: PC

Design

Fan diameter: 120 mm
Number of fans: 1 fan(s)
Product colour: Silver

Weight & dimensions

Depth: 150 mm
Height: 87 mm
Width: 140 mm

Logistics data

Harmonized System (HS) code: 84733020

Identifiers

Brand: CHIEFTEC
Model: GPC-700S
EAN: 4710713234161
