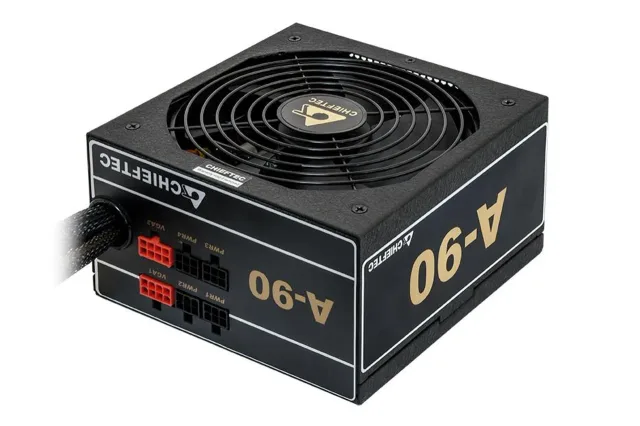

CASE PSU ATX 750W/GDP-750C CHIEFTEC
About this product
Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
Specifications
- Unit Calculated Weight
- 2.6 kg
- Unit Calculated Volume
- 0.006408 cubm
- Units per Shipping Box
- 6
- Units per Pallet
- 0
- Summary
- Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm
- Vendor Homepage
- https://www.chieftec.eu/en/psus/a-90-serie/gdp-750c.html
- Category Code
- PSU
- Unit Box Height
- 0.1
- Unit Box Length
- 0.25
- Unit Box Width
- 0.22
Power
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 744 W
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Combined power (+5Vsb)
- 2.5 W
- Max output current (+12V1)
- 62 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 22 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
- Total power
- 750 W
Ports & interfaces
- Cabling type
- Semi-Modular
- EPS power connector (8-pin)
- Yes
- Floppy drive power connector
- 1
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 8
- PCI Express power connectors (6+2 pin)
- 4
- Peripheral (Molex) power connectors (4-pin)
- 3
Performance
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
Design
- Fan diameter
- 140 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)
- Product colour
- Black
Weight & dimensions
- Depth
- 150 mm
- Height
- 87 mm
- Width
- 160 mm
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- Frequency tolerance
- 90 %
Identifiers
- Brand
- CHIEFTEC
- Model
- GDP-750C
- EAN
- 4710713230842
