BE QUIET

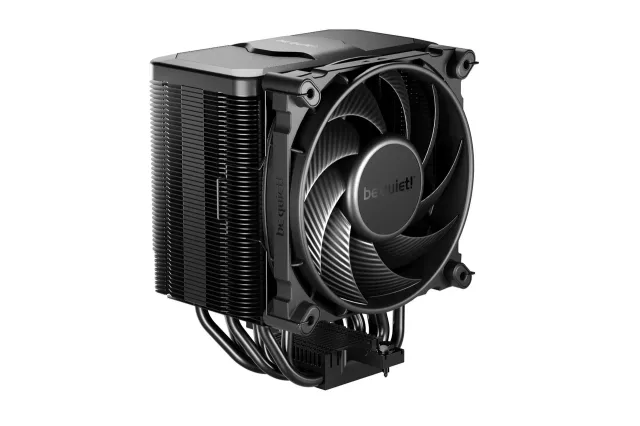

CPU COOLER S_MULTI/DARK ROCK 5 BK035 BE QUIET
About this product
Unleashed performance and compatibility
Dark Rock 5 is the compact embodiment of performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds.
- 6 advanced high-performance heat pipes
- Silent Wings 4 120mm PWM fan for perfect air pressure and virtually inaudible operation
- High RAM and VRM cooler compatibility thanks to an asymmetrical design and cut-outs on the heat sink
- Achieves only 29.8dB(A) at maximum fan speed
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- A second fan can optionally be installed at the exhaust for even higher air pressure
Specifications
- Unit Calculated Weight
- 1.55 kg
- Unit Calculated Volume
- 0.007884 cubm
- Units per Shipping Box
- 12
- Units per Pallet
- 0
- Summary
- be quiet! DARK ROCK 5. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (max): 2100 RPM, Airflow: 93.5 m³/h, Maximum air pressure: 2.73 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 136 mm, Depth: 101 mm, Height: 161 mm. Product colour: Black
- Vendor Homepage
- https://www.bequiet.com/en/download/casefans/5110?utm_source=newsletter
- Category Code
- COC
- Unit Box Height
- 0.23
- Unit Box Length
- 0.15
- Unit Box Width
- 0.2
- Model name
- BK035
- Model
- DARK ROCK 5
Performance
- Airflow
- 93.5 m³/h
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Fan diameter
- 120 mm
- Fan's mean time to failure (MTTF)
- 300000 h
- Maximum air pressure
- 2.73 mmH2O
- Maximum airflow
- 55 cfm
- Noise level (high speed)
- 29.8 dB
- Noise level (low speed)
- 11.9 dB
- Pulse-width modulation (PWM) support
- Yes
- Quantity per pack
- 1 pc(s)
- Rotational speed (max)
- 2100 RPM
- Suitable location
- Processor
- Supported processor sockets
- LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM4/Socket AM5
- Type
- Air cooler
Design
- Base plate material
- Copper
- Fan connector
- 4-pin
- Fins material
- Aluminium
- Number of fans
- 1 fan(s)
- Number of heat pipes
- 6
- Product colour
- Black
Power
- Fan current
- 0.1 A
- Fan power consumption
- 2.4 W
- Maximum current
- 0.2 A
- Rated voltage
- 12 V
- Thermal Design Power (TDP)
- 210 W
Weight & dimensions
- Cable length
- 0.22 m
- Depth
- 101 mm
- Fan dimensions (W x D x H)
- 120 x 120 x 25 mm
- Heat pipes diameter
- 6 mm
- Height
- 161 mm
- Package depth
- 198 mm
- Package height
- 224 mm
- Package weight
- 1500 g
- Package width
- 146 mm
- Radiator depth
- 76 mm
- Radiator height
- 161 mm
- Radiator width
- 136 mm
- Weight
- 1030 g
- Width
- 136 mm
Technical details
- Compliance certificates
- CE/RoHS/TÜV mark/UKCA/UL/WEEE
- Warranty period
- 3 year(s)
Packaging content
- CPU bracket(s)
- Yes
- Installation instruction
- Yes
- Mounting kit
- Yes
- Number of nuts
- 4
- Number of screws
- 8
- Screws included
- Yes
Other features
- Thermal grease
- Yes
Logistics data
- Products per shipping (inner) case
- 12 pc(s)
- Shipping (inner) case gross weight
- 18600 g
- Shipping (inner) case height
- 483 mm
- Shipping (inner) case length
- 610 mm
- Shipping (inner) case width
- 310 mm
Identifiers
- Brand
- BE QUIET
- Categories
- Components
- Model
- BK035
- EAN
- 4260052190739
