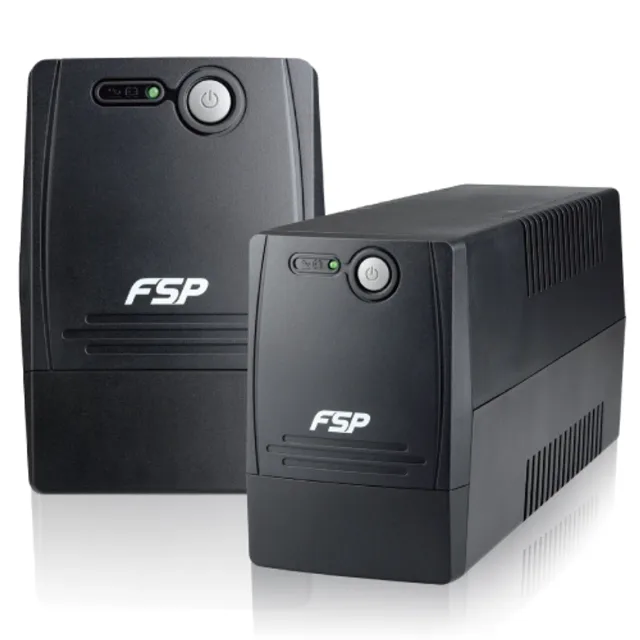

FSP | FP 800 | 800 VA | 220 V | 290 V

Specifications

Power

Power supply input frequency

50/60 Hz

Input operation voltage (min)

162 V

Output power capacity

800 VA

Output operation voltage (max)

220 V

Output power

480 W

Input operation voltage (max)

290 V

Output operation voltage (min)

220 V

Battery

Battery recharge time

6 h

Battery replacement alarms

Audible

Cold start

Yes

Number of batteries supported

1

Battery capacity

9 Ah

Battery voltage

12 V

Performance

LED indicators

Yes

Off-mode charging

Yes

Power protection features

Overcharge, Overload

Automatic Voltage Regulation (AVR)

Yes

Waveform

Sine

Auto-restart

Yes

Noise level (max)

40 dB

Audible alarm(s)

Yes

UPS topology

Line-Interactive

Capacity

800 VA

Design

Form factor

Tower

Weight & dimensions

Weight

4.9 g

Width

10.1 cm

Height

14.2 cm

Depth

27.9 cm

Features

Colour of product

Black

Product type

•Compact size•Excellent microprocessor control guarantees high reliability•Boost and buck AVR for voltage stabilization•Auto restart while AC is recovering•Simulated sine wave•Off-mode charging•Cold start function•Generator compatible

Ports & interfaces

AC outlets quantity

2

AC outlet types

Type F (Schuko)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90 %

Technical details

Warranty

24 month(s)

Net weight

4.097 kg

Producer

FSP

Producer product name

FP 800

Gross weight

5 kg

Package features

WEEE tax

Yes

Packing quantity

4.00 pc(s)

TI weight (kg)

3.60 kg

Gross depth master carton

590 mm

Gross width master carton

344 mm

Gross height master carton

245.00 mm

Net weight master carton

20 kg

Tare weight master carton

0.845 kg

Volume (m3)

0.01001 m³

Tare weight (kg)

0.903 kg

Composition of battery

CL127:NK:2016-12-09

Classification of battery

CL126:PE:2016-12-09

Embeeded battery

Yes

Type of battery

Accumulator

WEE classification

CL109:5:2017-04-01

Gross depth (mm)

325 mm

Gross width (mm)

140.00 mm

Gross height (mm)

220.00 mm

Plastic (No PET)

148.00 g

Paper/Pasteboard

755.00 g

Palette Qty

136 pc(s)

Identifiers

Brand

FSP

Categories

UPS

Model

FP800

E13

4711140489254

Safety & compliance
