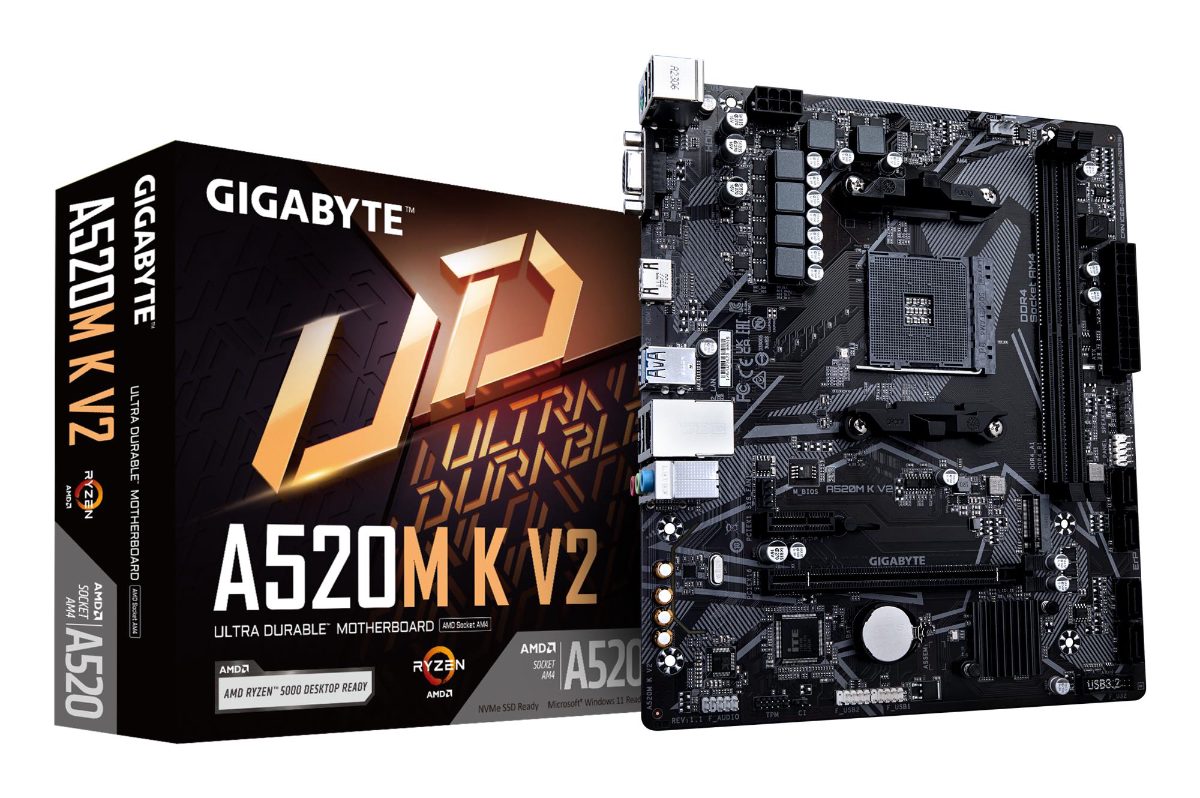

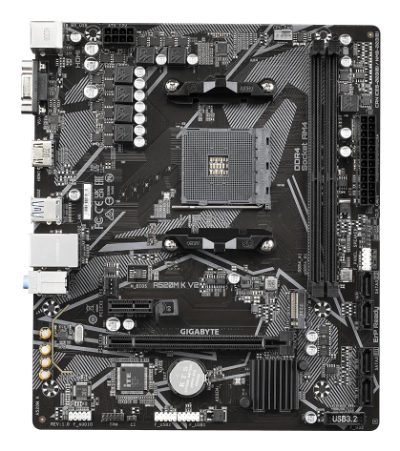

A520M K V2 1.0 M/B, Processor family AMD, Processor socket AM4

A520M K V2 1.0 M/B, Processor family AMD, Processor socket AM4, DDR4 DIMM, Memory slots 2, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4, Chipset AMD A520, Micro ATX

Gigabyte · 4719331852771

A520M K V2 1.0 M/B, Processor family AMD, Processor socket AM4, DDR4 DIMM, Memory slots 2, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4, Chipset AMD A520, Micro ATX
—

The invoice is sent as soon as you order.

Out of stock
  • Payment: bank transfer or cash on delivery
  • Delivery: 1–3 working days, anywhere in Latvia
  • Expected: around 26.08.
  • Warranty: 36 mo.
  • Invoice: with every order
EAN
4719331852771
Brand
Gigabyte

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors​
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​
  • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
  • GbE LAN with Bandwidth Management​
  • 8-Channel HD Audio with High Quality Audio Capacitors​
  • Rear HDMI and D-sub for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
  • GIGABYTE APP Center, Simple and Easy Use​​

Specifications

Audio output channels7.1 channels
Component forPC
ChipsetAMD A520
Chipset familyAMD
Form factormicro ATX
PC health monitoringFan/Temperature/Voltage
Supported Windows operating systemsWindows 10 x64/Windows 11 x64
Compatible processor seriesAMD Ryzen 3000 Series/AMD Ryzen 5000 Series
Processor manufacturerAMD
Processor socketSocket AM4
ECC compatibilityECC & Non-ECC
Maximum memory64 GB
Memory channelsDual-channel
Memory form factorDIMM
Number of memory slots2
Memory frequency (max)5100 MHz
Supported memory clock speeds2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 MHz
Supported memory typesDDR4-SDRAM
Unbuffered memoryYes
Supported storage drives5
RAID levels0/1/10
RAID supportYes
Supported drive interfacesM.2,SATA III
Supported drive typesHDD & SSD
HDCPYes
Maximum resolution4096 x 2160 pixels
Multi-GPU technologyNot supported
12V power connectorYes
ATX power connectorYes
Chassis intrusion connectorYes
CPU fan connectorYes
EPS power connectorYes
Front panel audio connectorYes
Front panel connectorYes
SATA connectors4
TPM headerYes
Internal USB 2.0 connectors2
Internal USB 3.2 Gen 1 connectors1

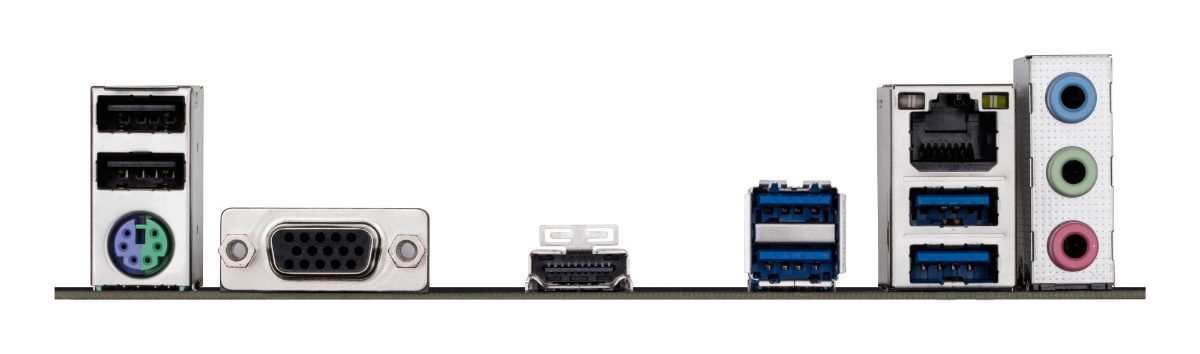

Ethernet (RJ-45) ports1
HDMI ports1
HDMI version2.1
Headphone outputs3
Microphone inputYes
PS/2 ports1
USB 2.0 ports2
USB 3.2 Gen 1 Type-A ports4
USB connector typeUSB Type-A
VGA (D-Sub) input ports1
Ethernet typeGigabit Ethernet
Ethernet LANYes
Wi-FiNo
M.2 slot count1
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 slots1
ACPI version5.0
BIOS memory size128 Mbit
BIOS typeUEFI AMI
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
SMBIOS version2.7
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3 g
Country of originChina
Lithium weight per battery0.07 g
Number of battery cells1
Depth198 mm
Height35 mm
Width233 mm
Batteries includedYes
Bundled softwareNorton Internet Security
Cables includedSATA
Warranty3 year(s)
ModelA520M K V2 (rev. 1.1)
