Gigabyte Z790 EAGLE, Processor family Intel, Processor socket LGA1700
Gigabyte Z790 EAGLE, Processor family Intel, Processor socket LGA1700, DDR5 DIMM, Supported hard disk drive interfaces M.2, SATA, Number of SATA connectors 4
Gigabyte · 4719331860981
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4719331860981
- Brand
- Gigabyte
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN

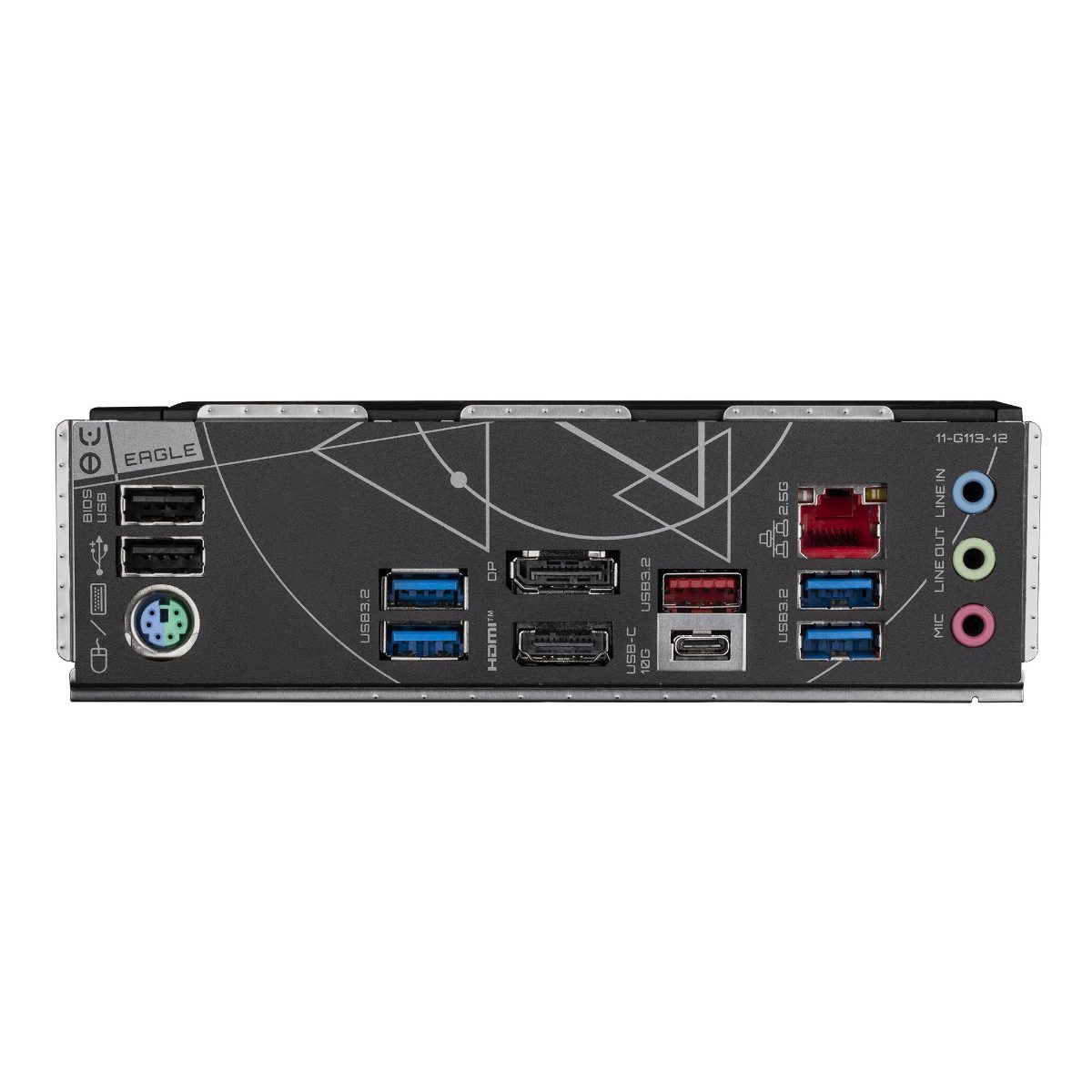

- Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel Z790 |
| Chipset family | Intel |
| Form factor | ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source | ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | ECC & Non-ECC |
| Maximum memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7600 MHz |
| Supported memory clock speeds | 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Multi-GPU technology | Not supported |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 4 |
| Number of CPU fan connectors | 2 |
| EPS power connector count | 2 |
| Number of RGB LED pin headers | 2 |
| SATA connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Thunderbolt headers | 2 |
| TPM header | Yes |
| Internal USB 2.0 connectors | 2 |
| Internal USB 3.2 Gen 1 connectors | 2 |
| DisplayPort out version | 1.2 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line in | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| M.2 slot count | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| SMBIOS version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Warranty | 3 year(s) |
| Model | Z790 EAGLE (rev. 1.0) |
