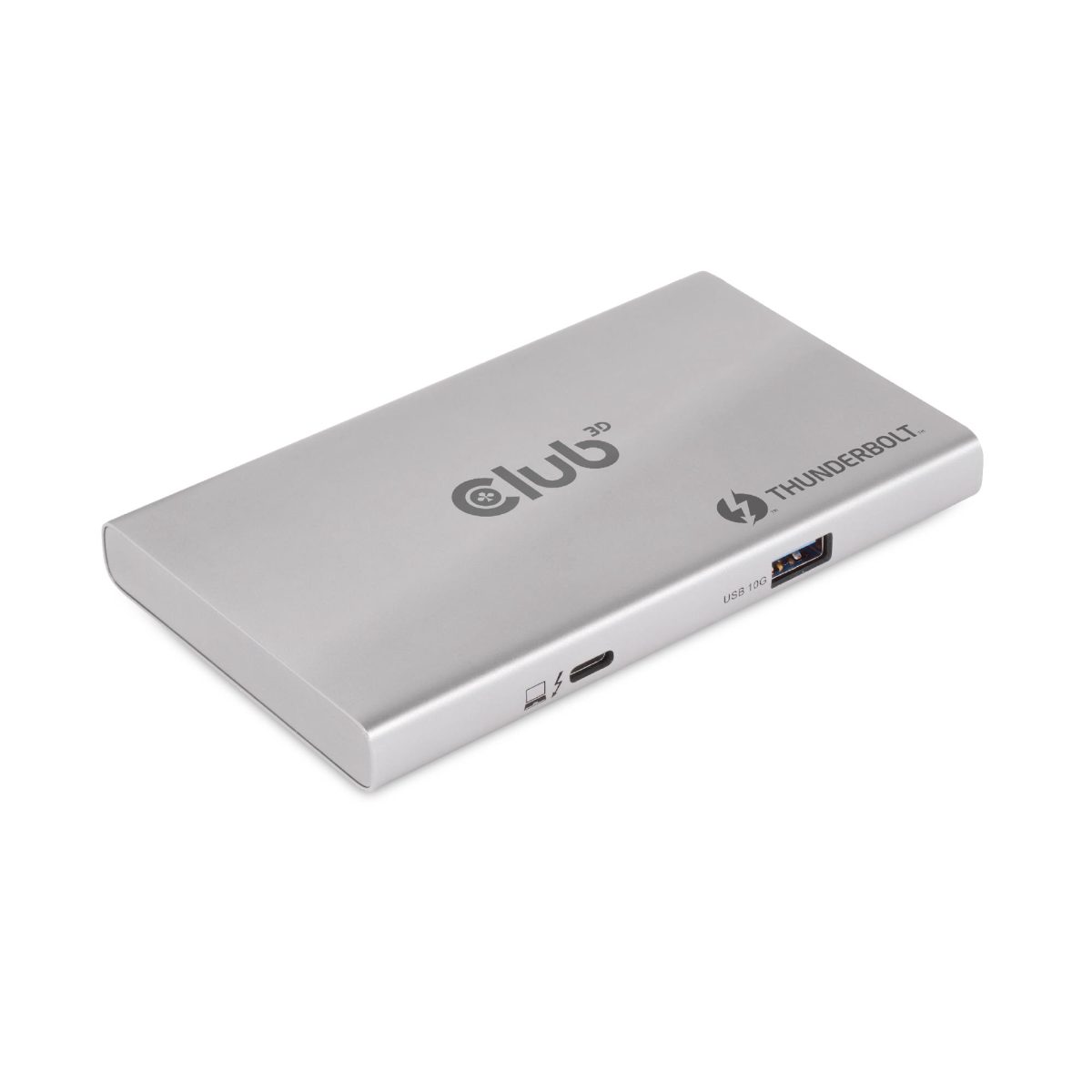

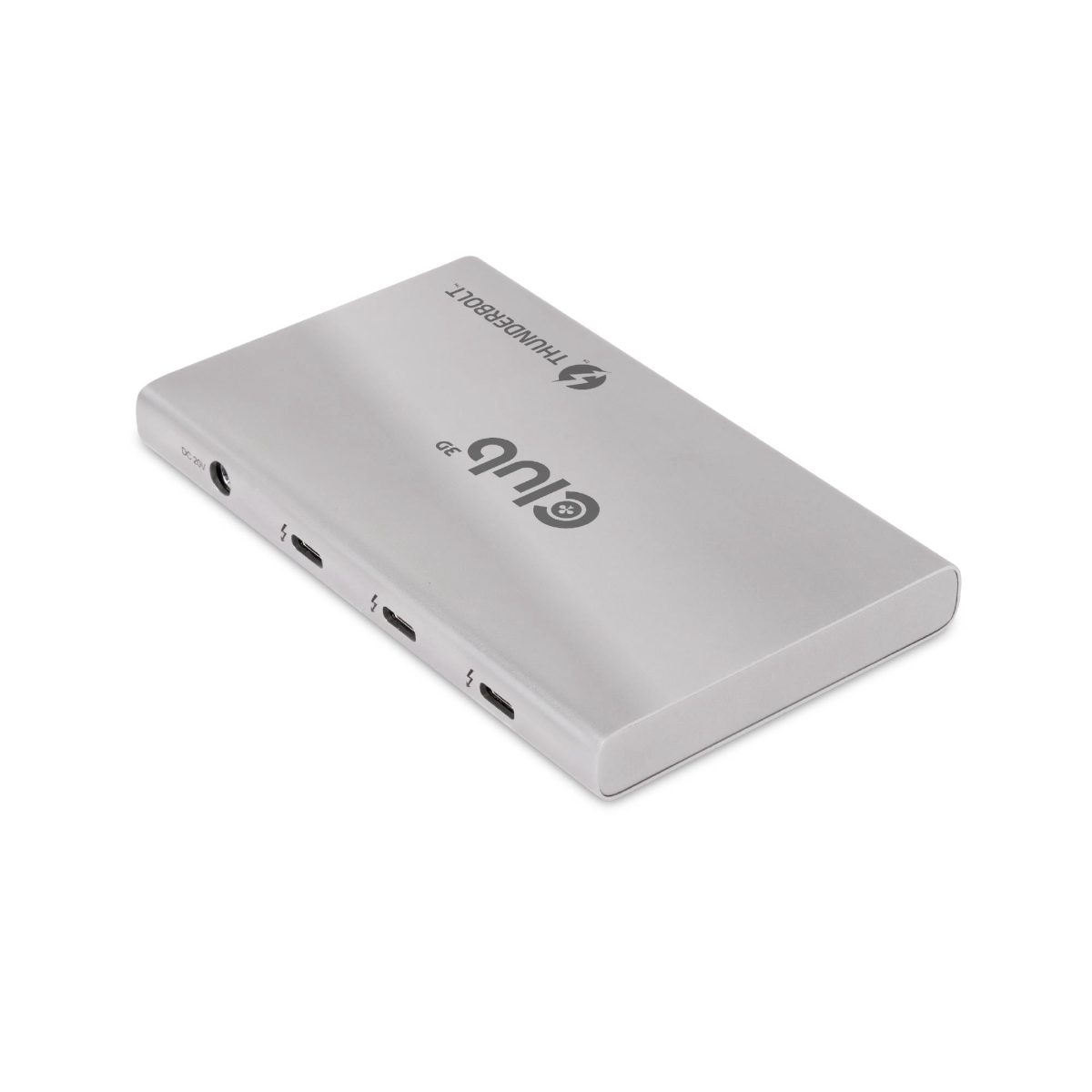

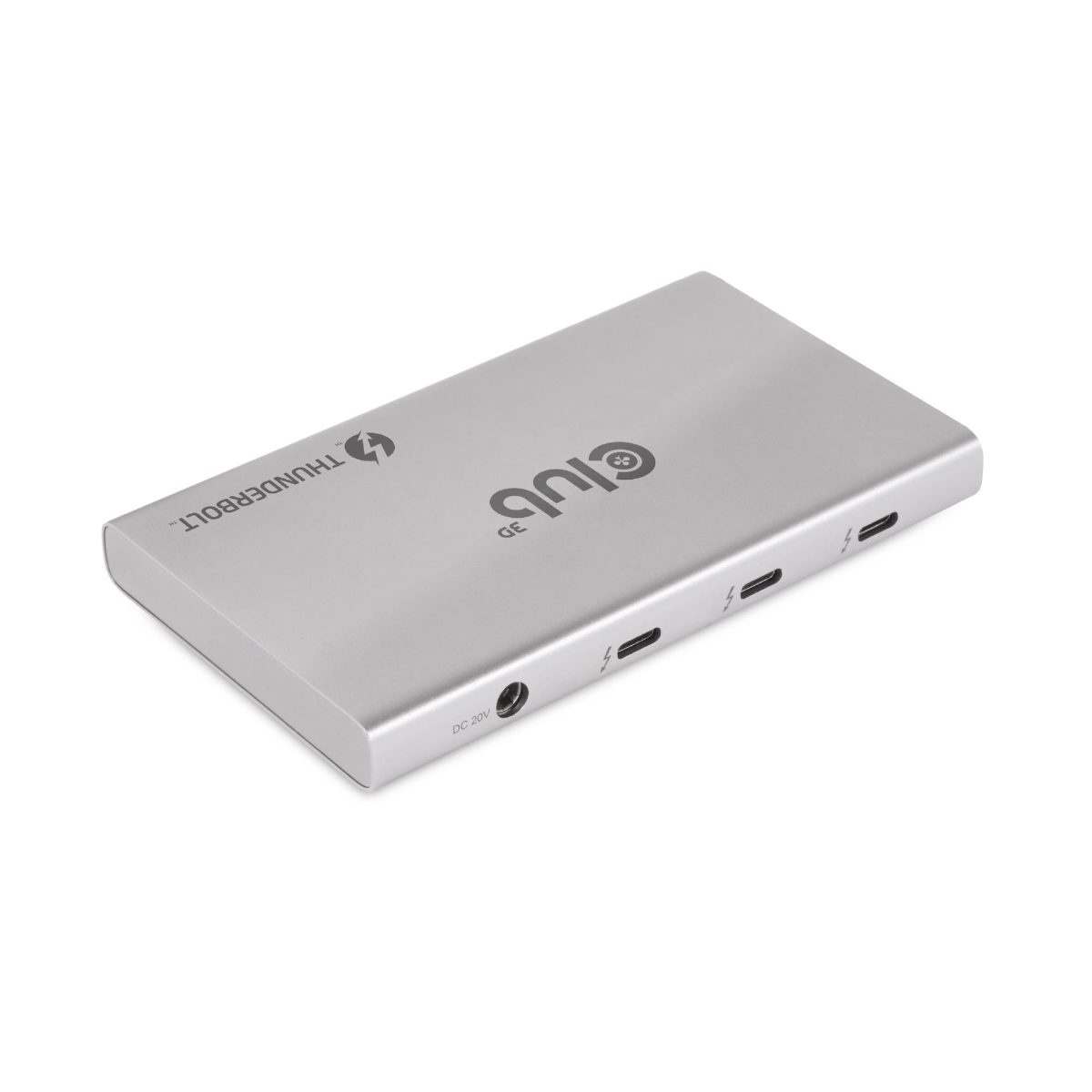

I/O HUB 5IN1 THUNDERBOLT/CSV-1580 CLUB3D
CLUB3D · 8719214471958
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8719214471958
- Brand
- CLUB3D
Description

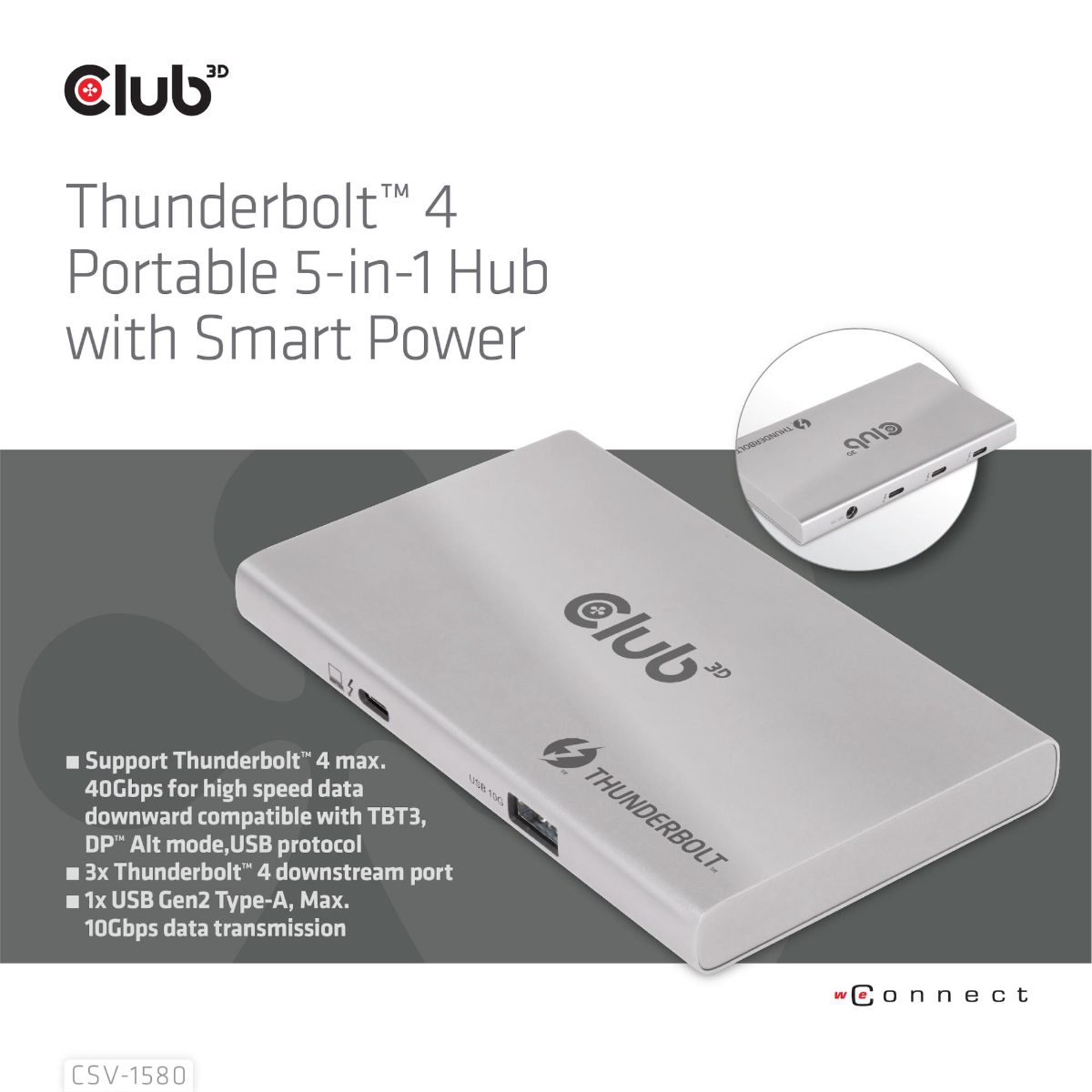

The Club 3D CSV-1580 is a Certified Thunderbolt™ 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt™ 4 modern Hub has 3 Thunderbolt™ 4 downstream ports that allow you to cascade Thunderbolt™ 4 devices to one 8K30Hz or two 4K60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports Smart Power function which enables to distribute power according to the power consumption of the connected device, making full use of the external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions.
- Adopting Goshen Ridge solution

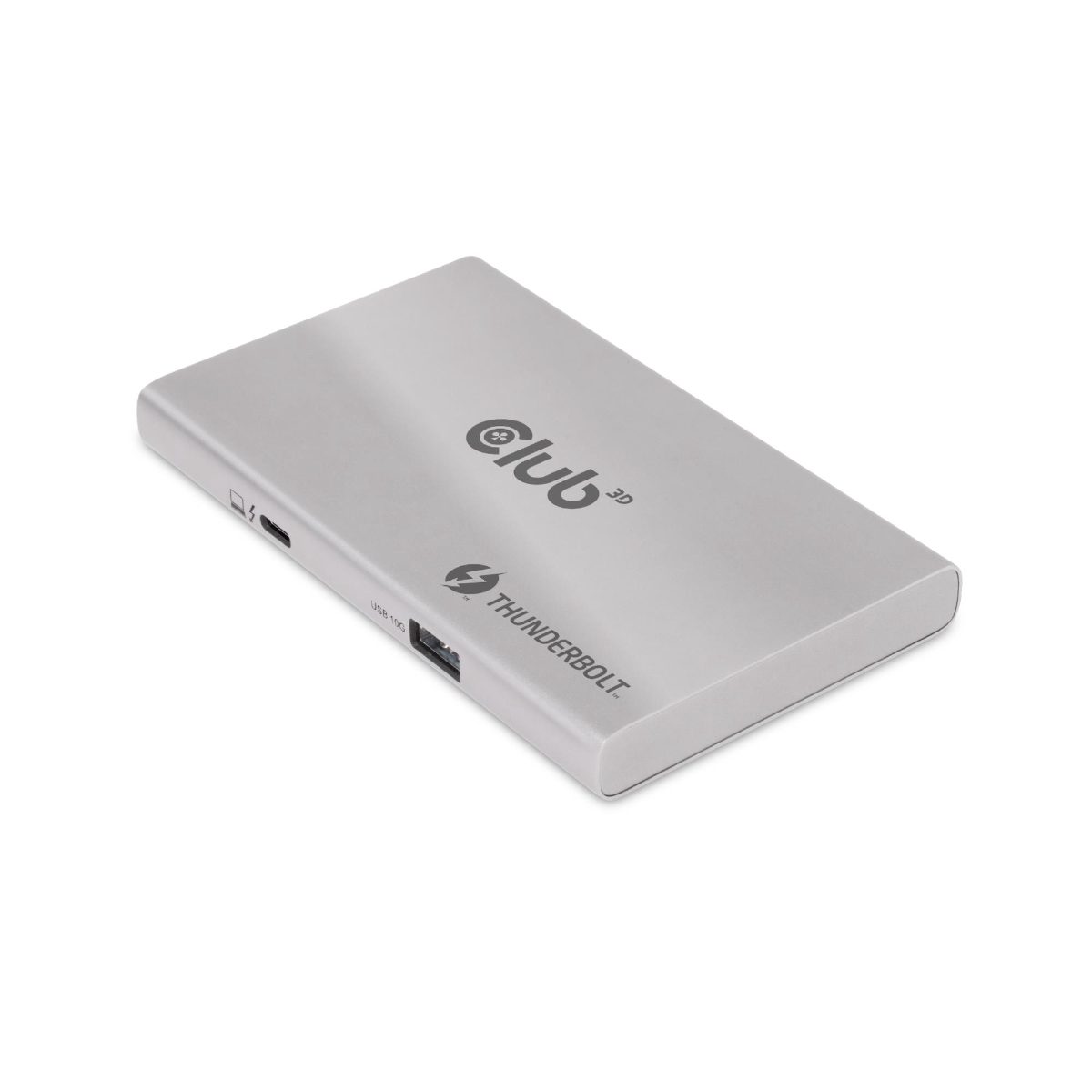

- Slim compact aluminium design
- Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions

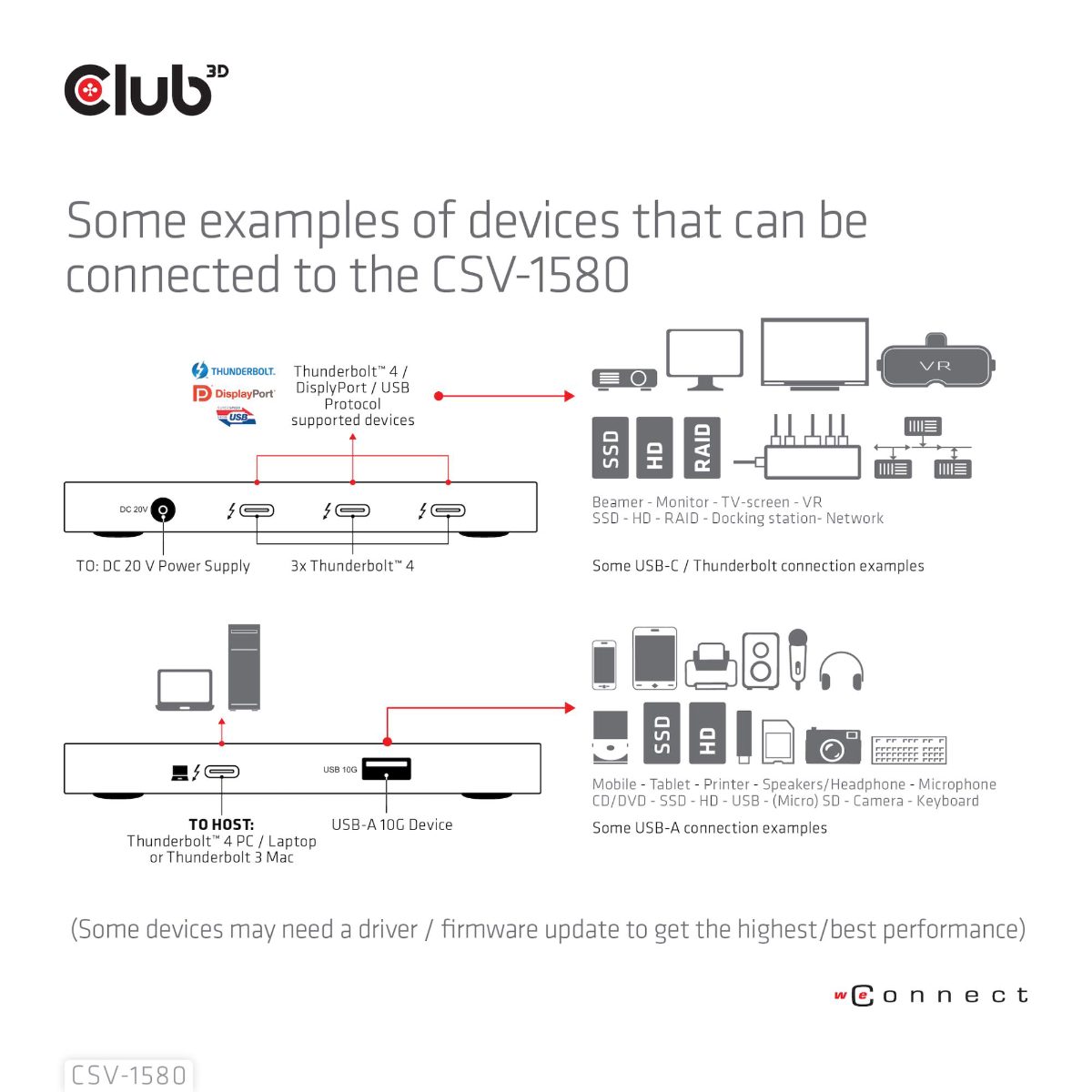

- Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode,USB protocol

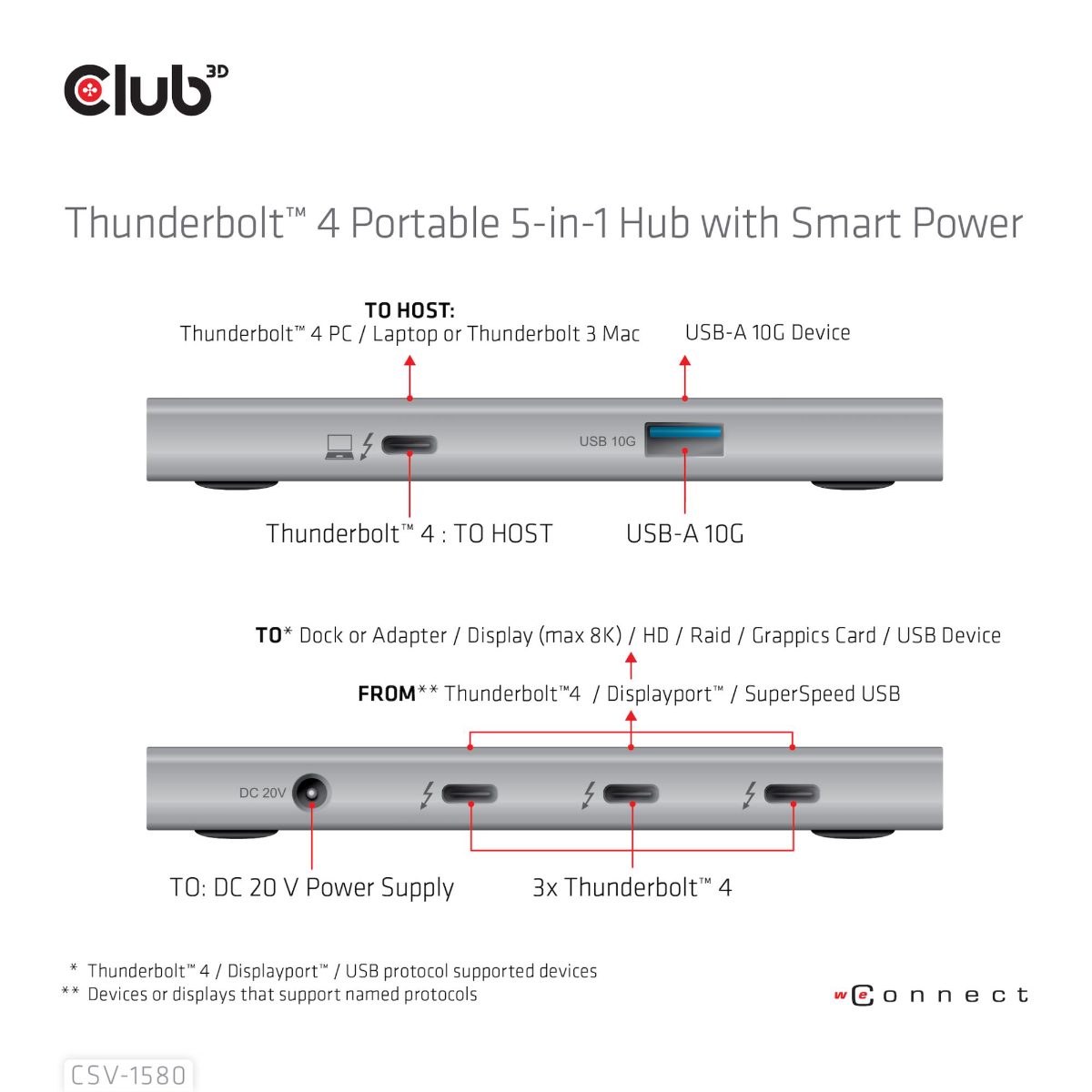

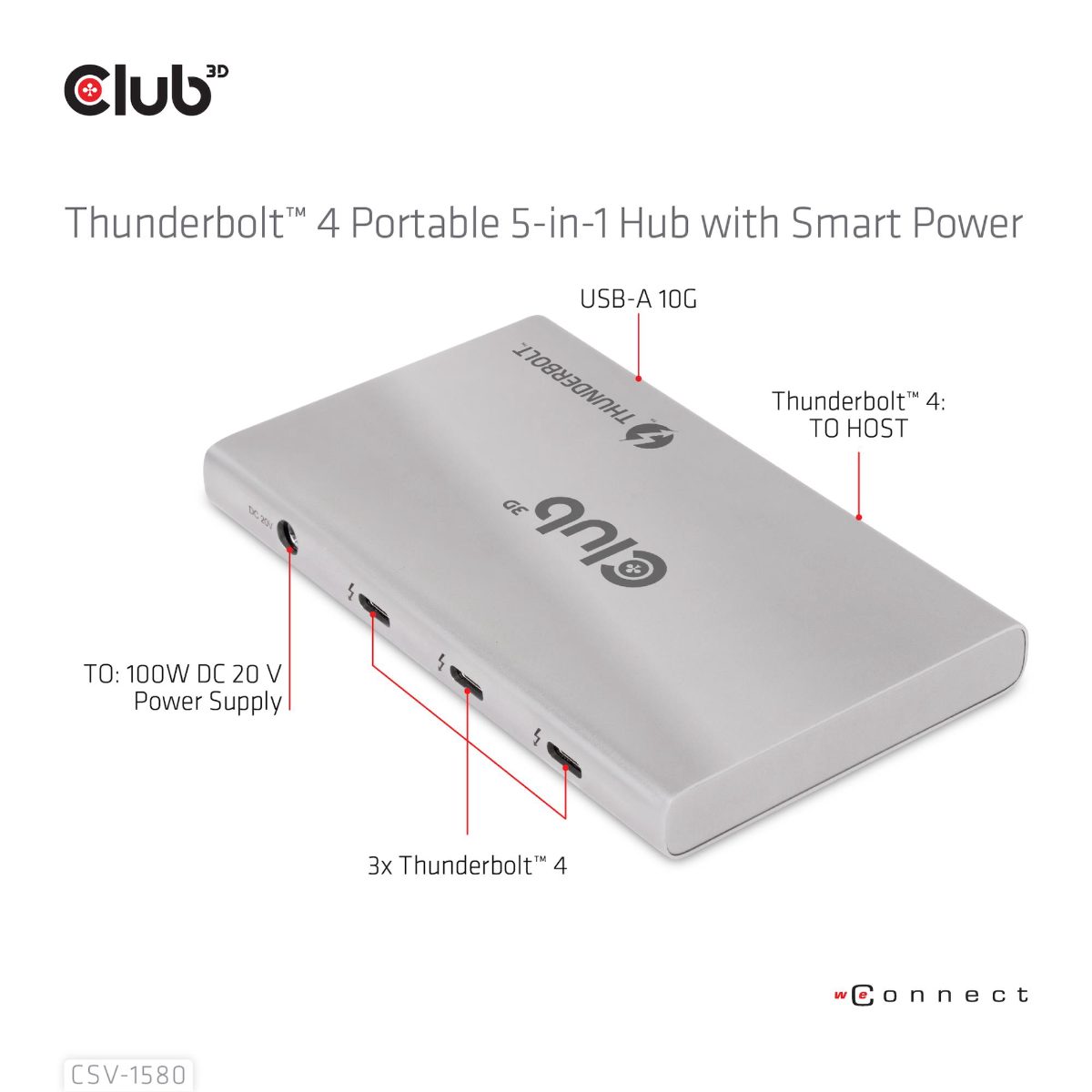

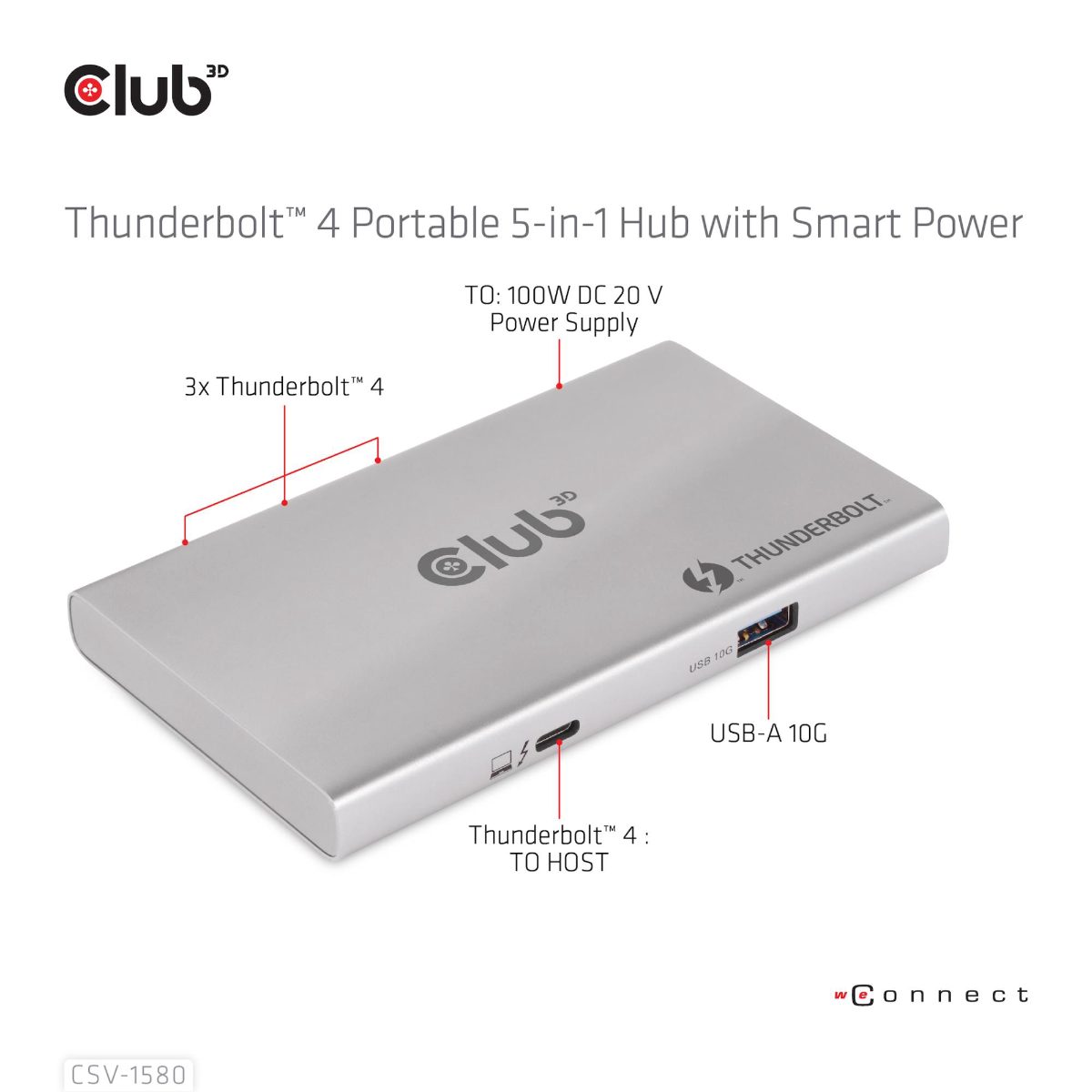

- 3x Thunderbolt™ 4 downstream ports ,allow you to cascade Thunderbolt™ devices
- 3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)

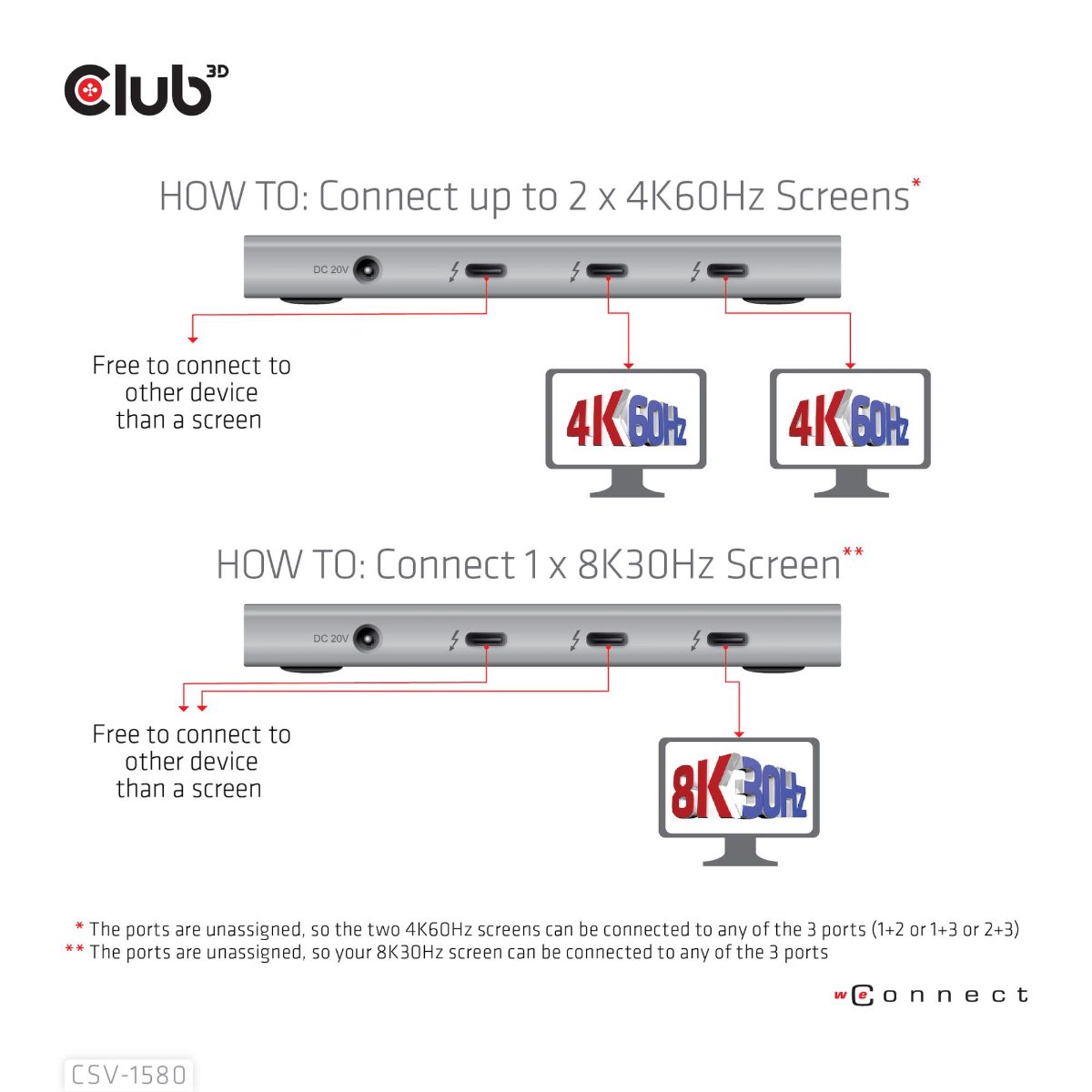

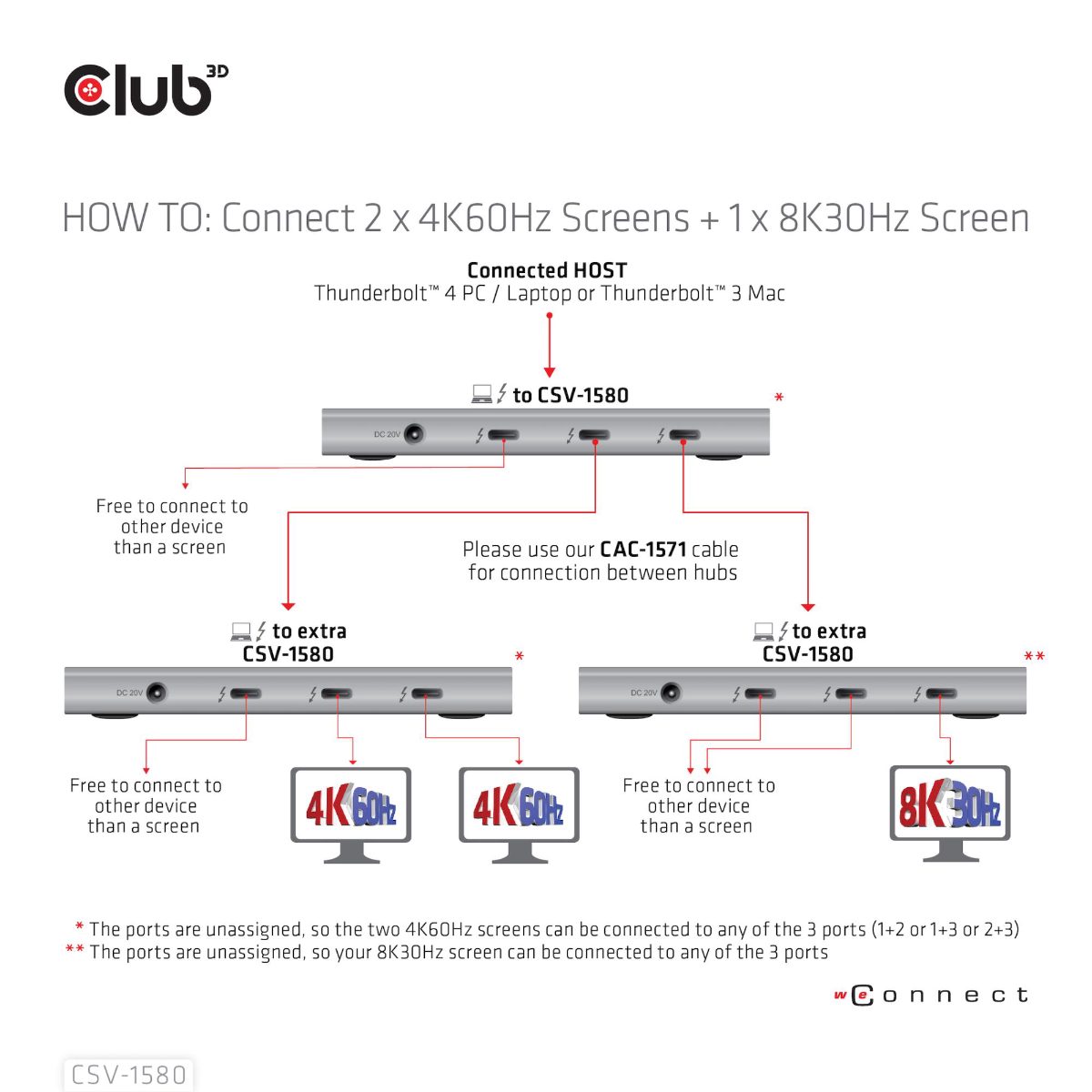

- 3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K/60Hz Max. The maximum resolution for connecting a single monitor is also 8K30Hz
- Self-powered from DC power adapter with max 60W for host, max 85W for host and Hub
- Support Smart Power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices, to take full advantage of provided power from the external DC power adapter:
- more power will be dedicated for charging the host if the downstream ports of the Hub consume less power
- when the power consumption of the Hub and the connected device increases, the power dedicated for charging your host will decrease accordingly
Specifications
| Connection technology | Docking |
| DC-in jack | Yes |
| Host interface | Thunderbolt 4 |
| Microphone input | No |
| Thunderbolt 4 ports | 4 |
| USB 3.2 Gen 2 Type-A ports | 1 |
| Ethernet LAN | No |
| Card reader | No |
| Compatible with | OS Support: Windows10T or above version supported ThunderboltT 4 host MacOST 11 or above version supported ThunderboltT 3 host |
| Plug and Play | Yes |
| Colour | Silver |
| Output current | 5 A |
| Output voltage | 20 V |
| Power consumption (max) | 60 W |
| Power source | DC |
| Rated power | 10 W |
| Wireless charging | No |
| macOS versions supported | Mac OS X 11.0 Big Sur |
| Supported Windows operating systems | Windows 10 |

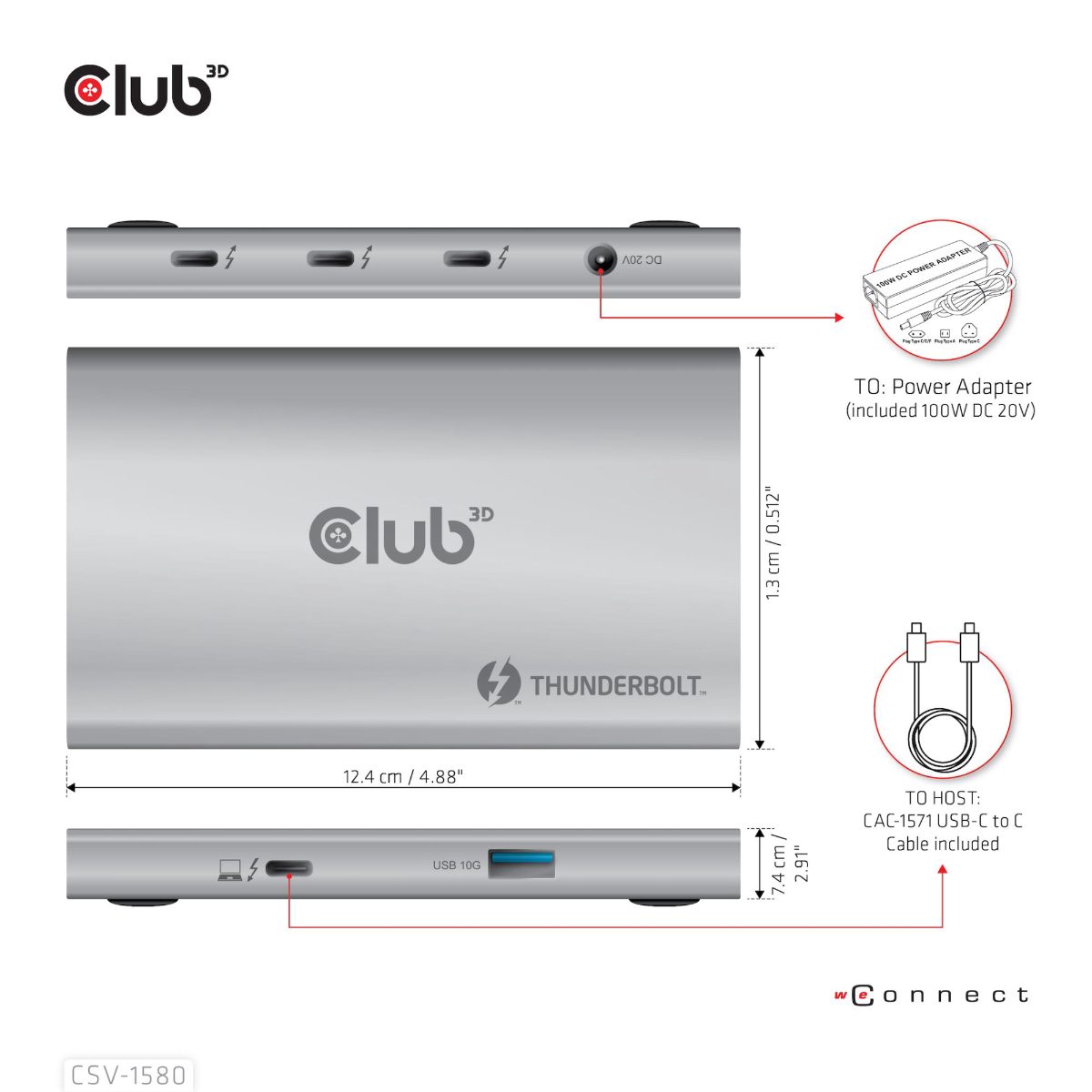

| Depth | 74 mm |
| Height | 13 mm |
| Weight | 165 g |
| Width | 124 mm |
| AC adapter included | Yes |
| Quick start guide included | Yes |
| Packaging languages | English |
| Certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Model | CSV-1580 |
