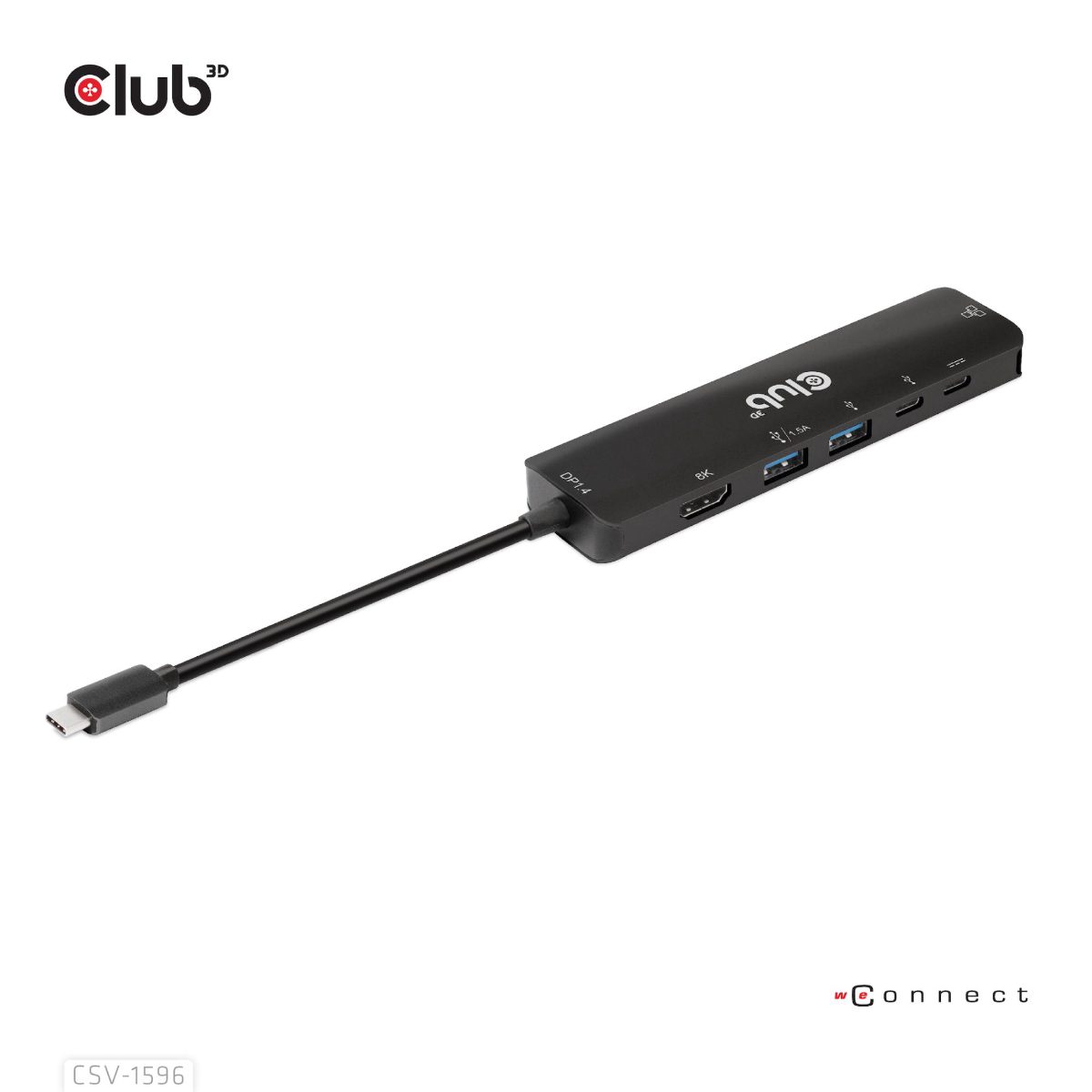

I/O HUB 6IN1 USB-C/CSV-1596 CLUB3D
CLUB3D · 8719214472344
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8719214472344
- Brand
- CLUB3D
Description

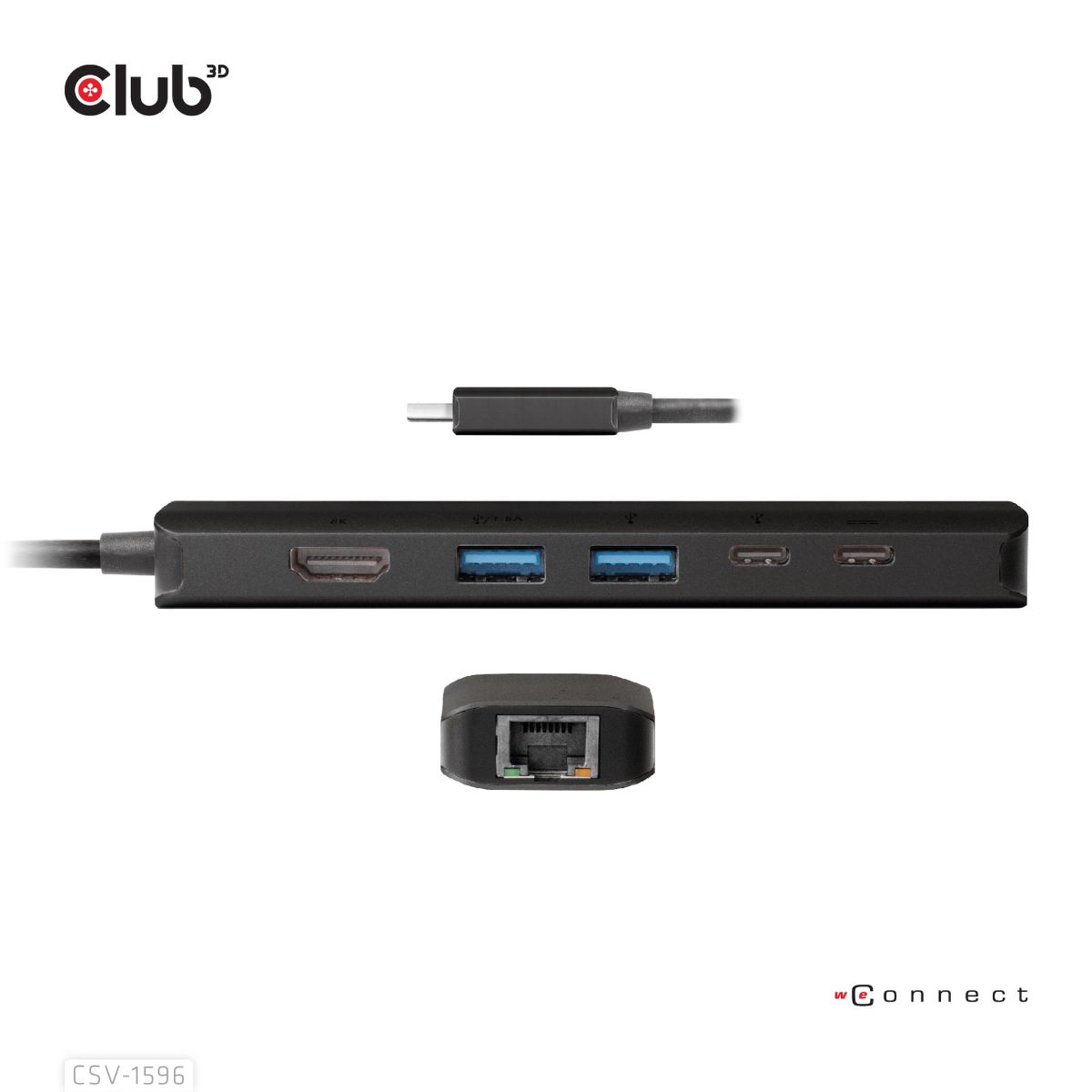

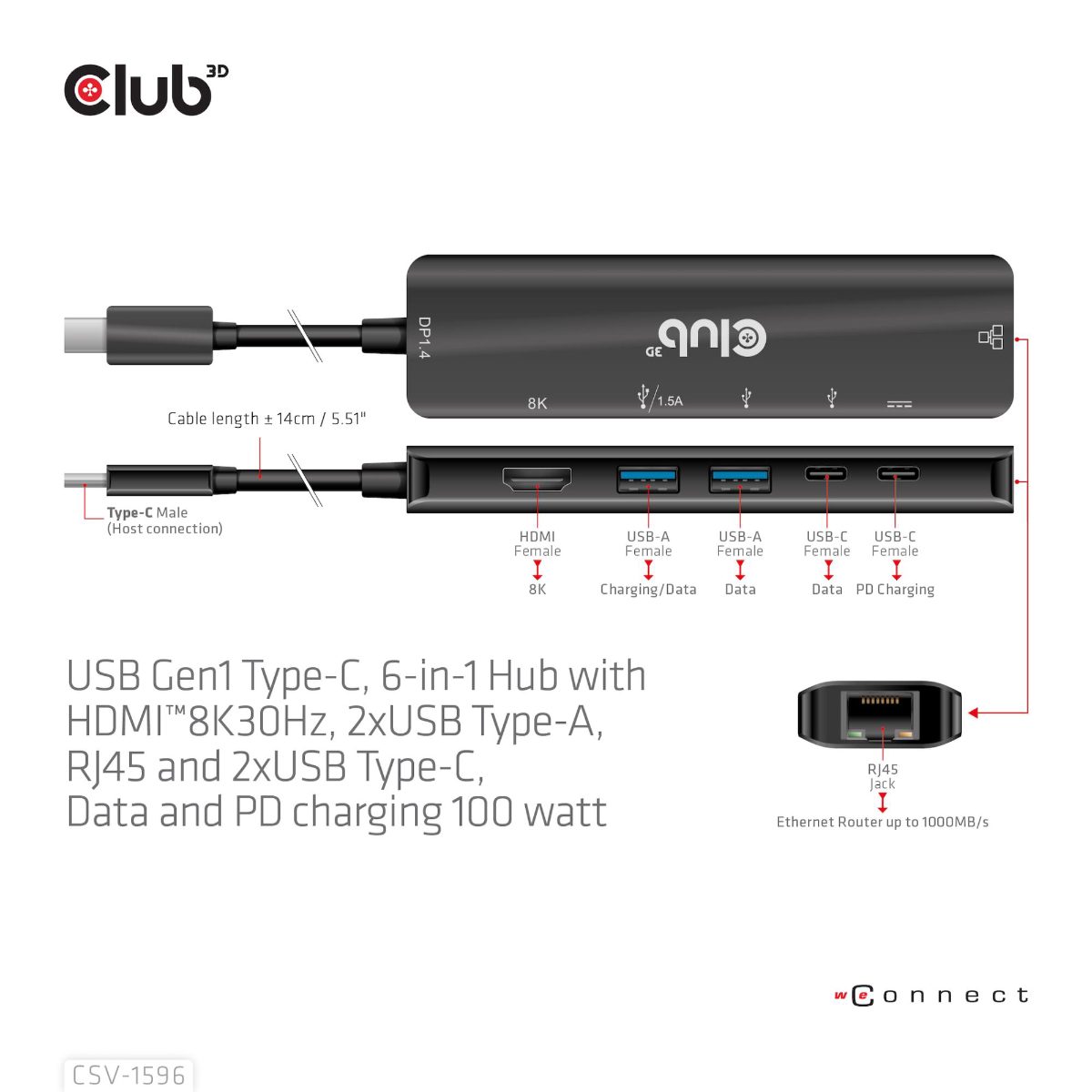

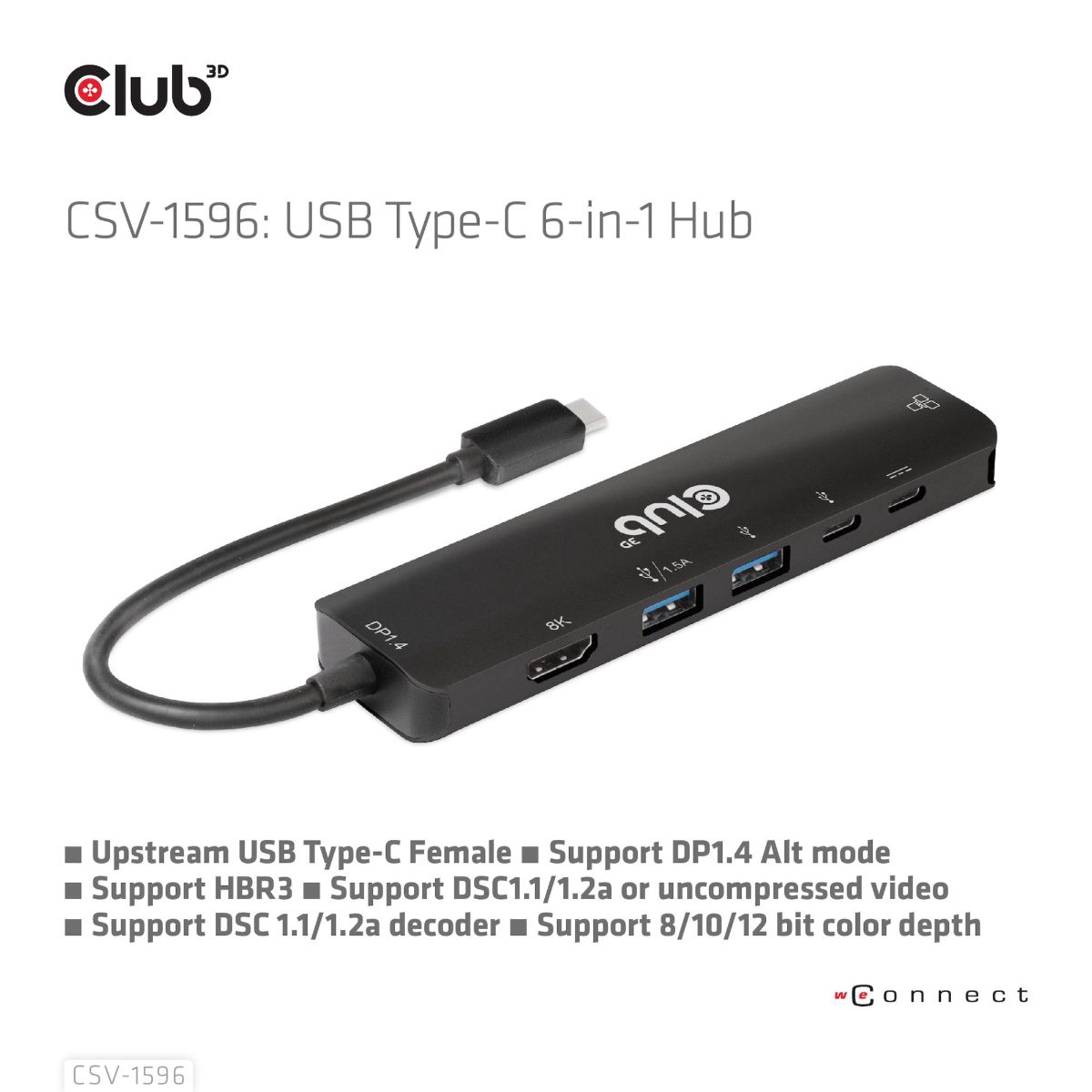

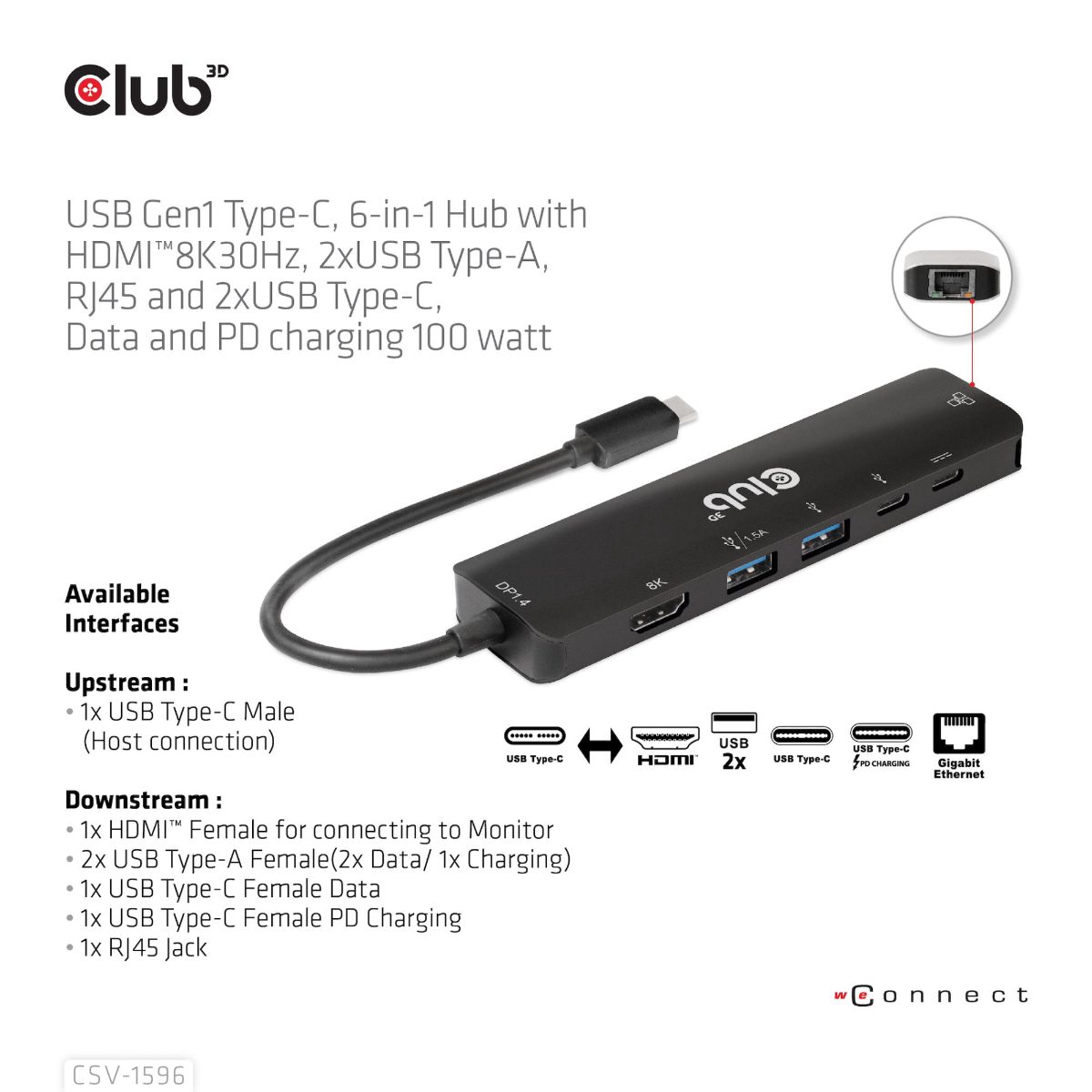

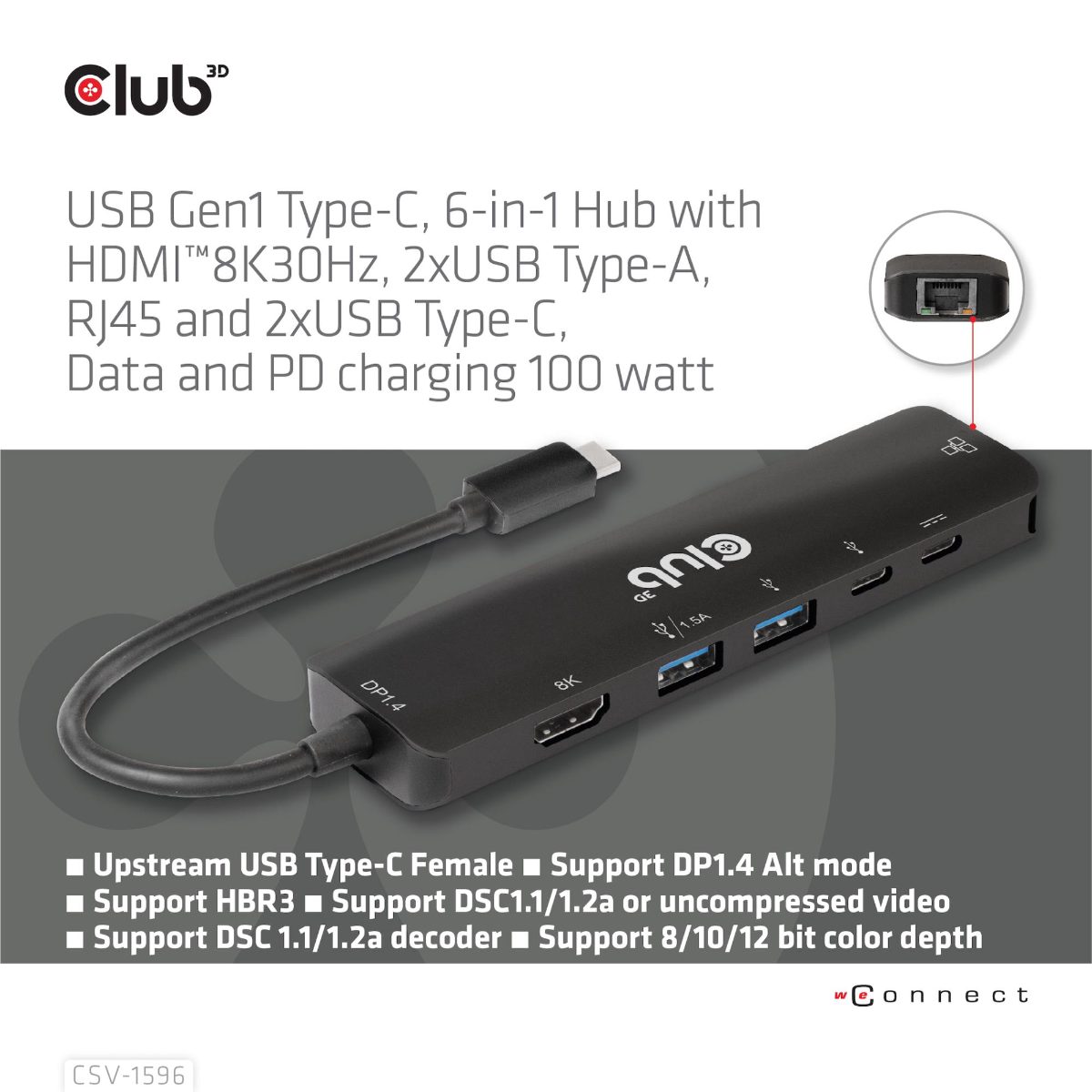

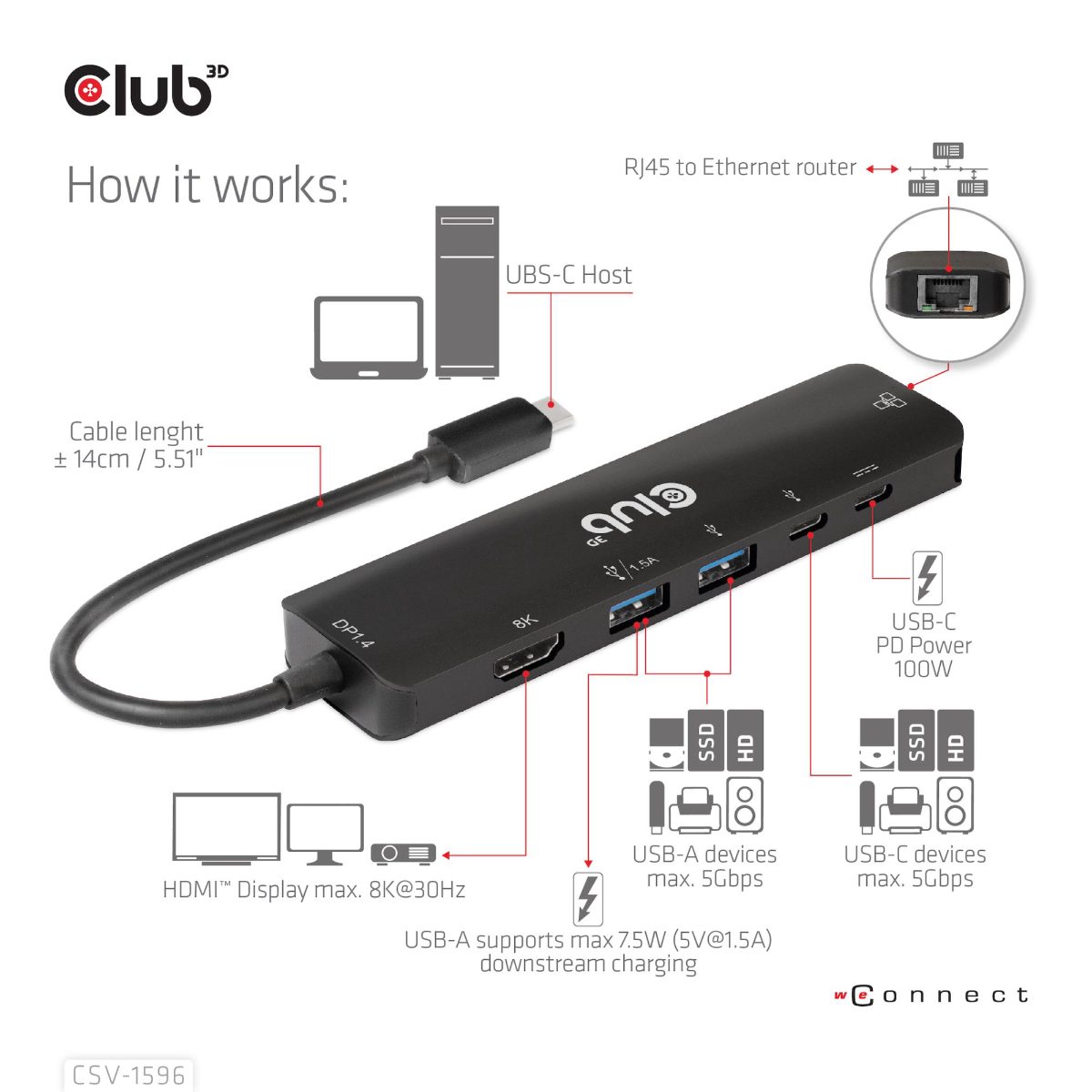

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
Specifications
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| HDMI ports | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 1 Type-C ports | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery power | 100 W |
| USB-C DisplayPort Alternate Mode | Yes |
| Ethernet (RJ-45) ports | 1 |
| Ethernet data rates | 100/1000 Mbit/s |
| Card reader | No |
| Certification | ROHS, FCC, CE EMI |
| HD type | 8K Ultra HD |
| HDR | Yes |
| Hub interfaces | HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Maximum refresh rate | 120 Hz |
| Supported displays | 1 |
| Plug and Play | Yes |
| Colour | Black |
| Output current | 1.5 A |
| Output voltage | 5 V |
| Power consumption (max) | 7.5 W |
| Wireless charging | No |
| macOS versions supported | Yes |
| Supported Windows operating systems | Yes |

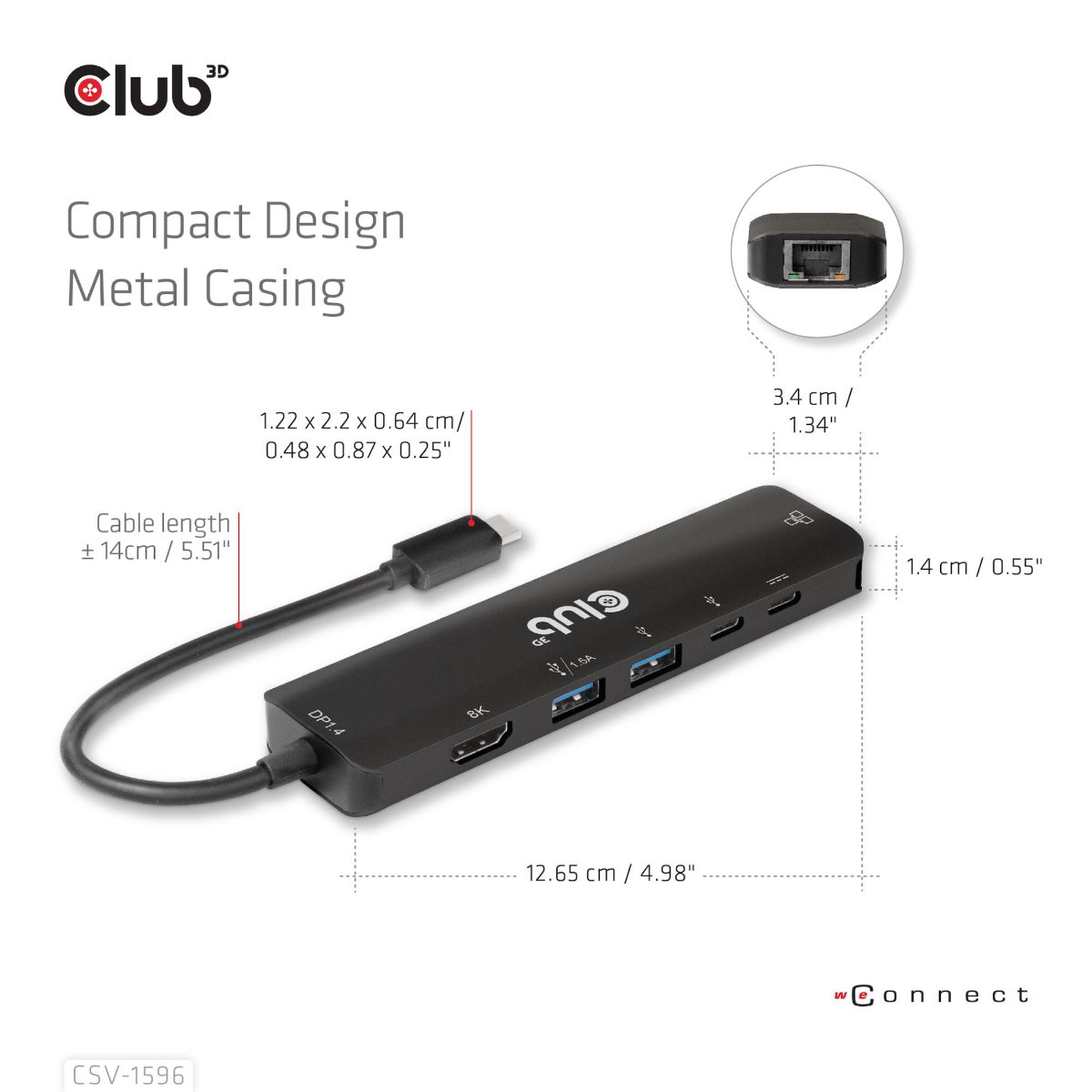

| Depth | 32 mm |
| Height | 35 mm |
| Weight | 89 g |
| Width | 126 mm |

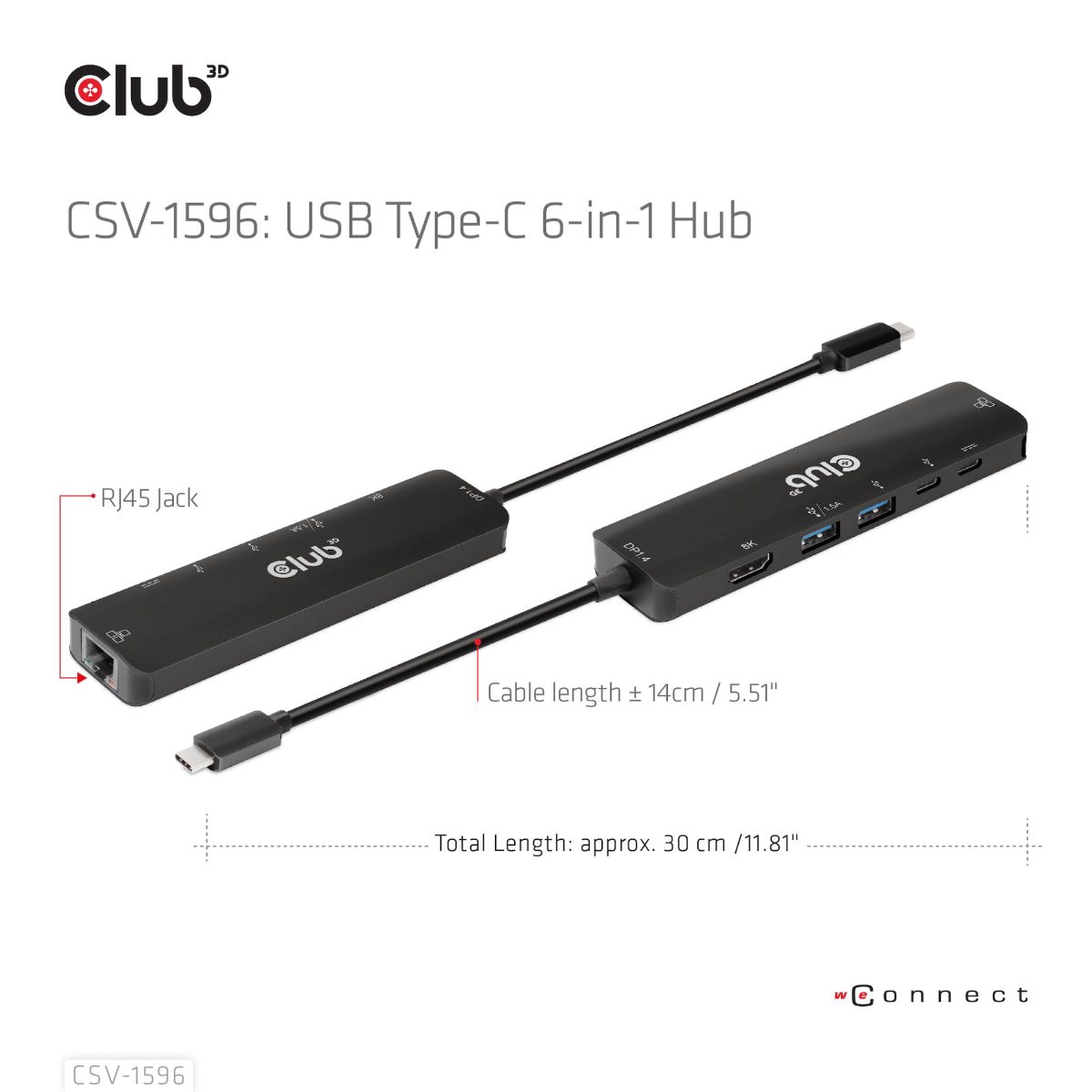

| Cable length | 0.3 m |
| Cable type | Round cable |
| Model | CSV-1596 |
