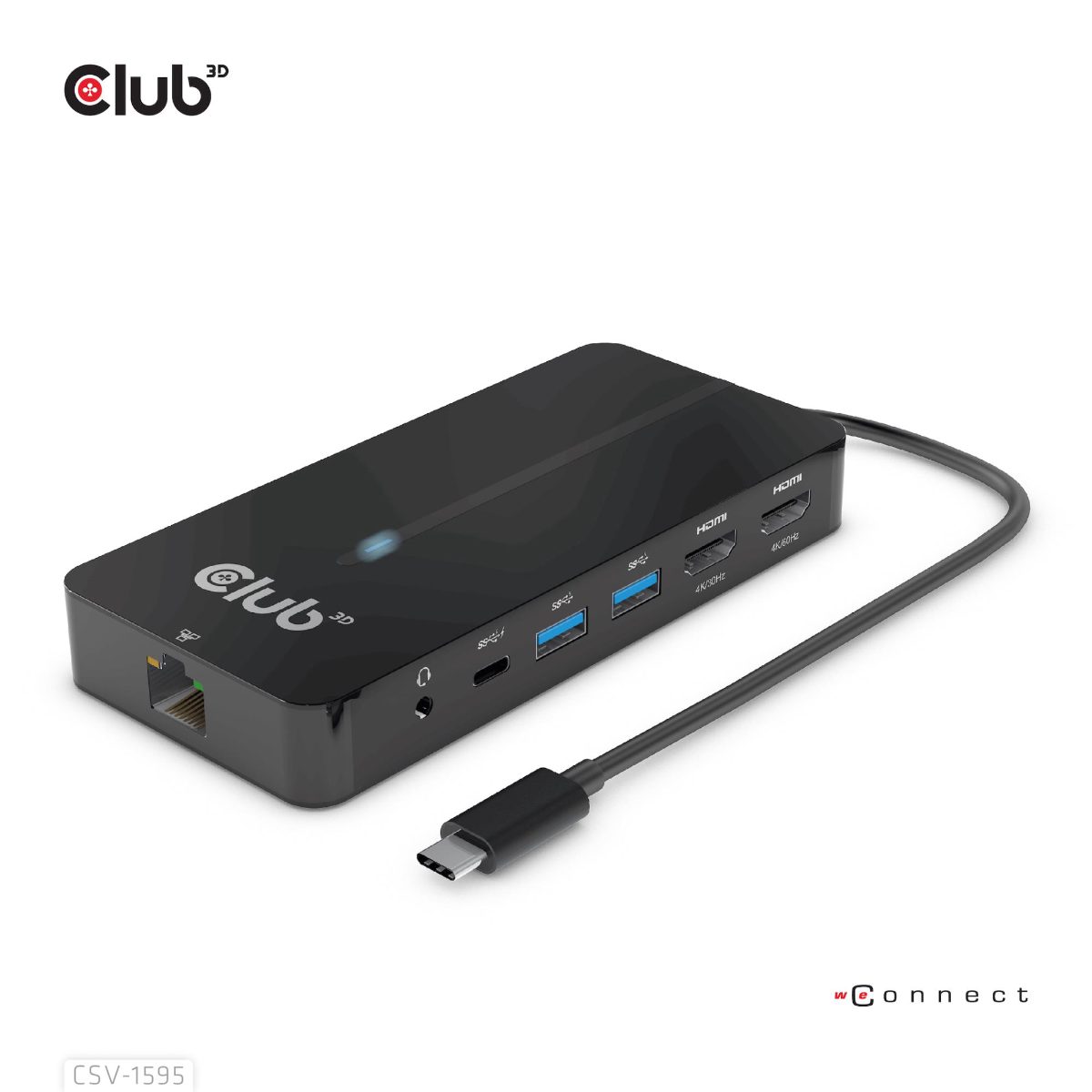

I/O HUB 7IN1 USB-C/100W CSV-1595 CLUB3D
CLUB3D · 8719214472269
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8719214472269
- Brand
- CLUB3D
Description

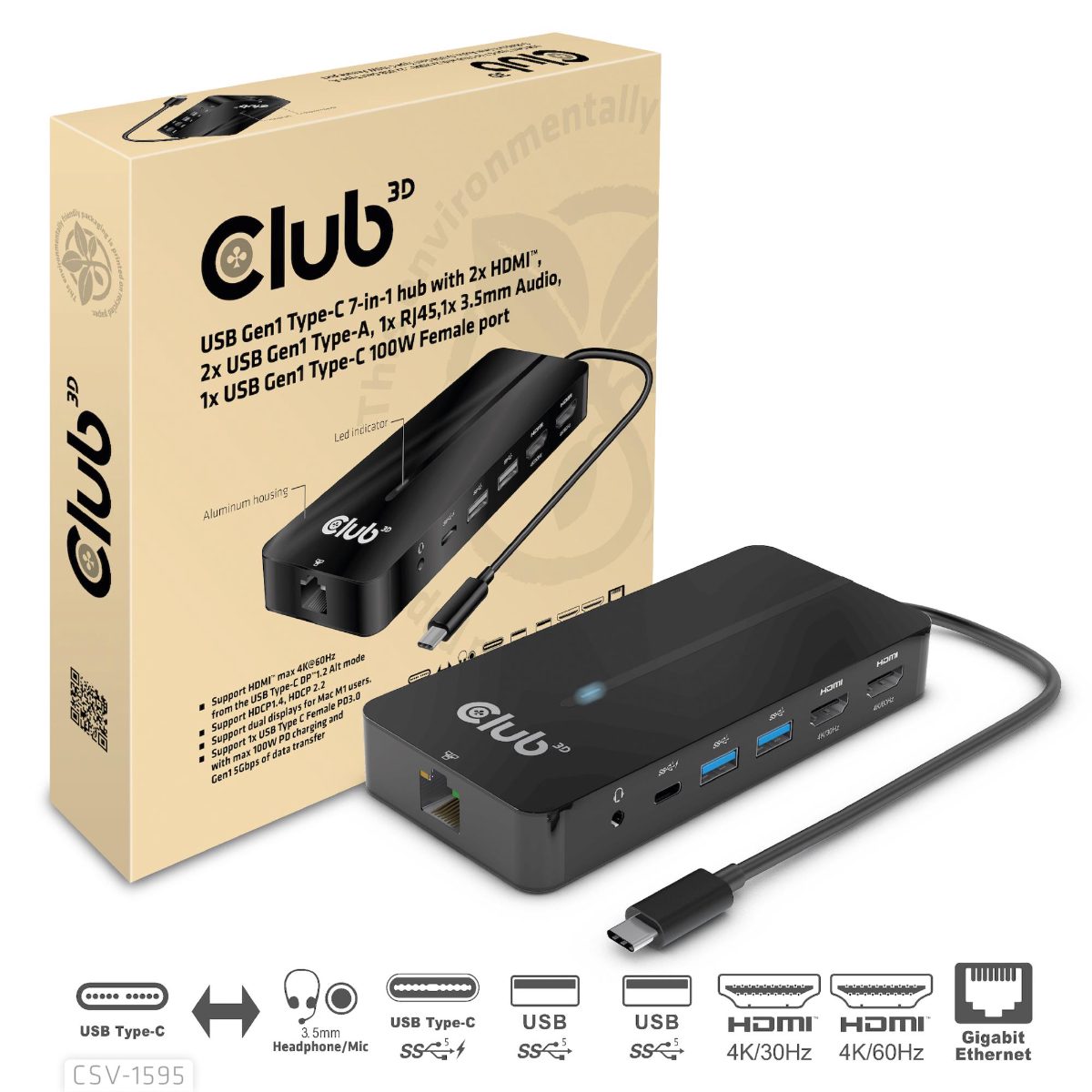

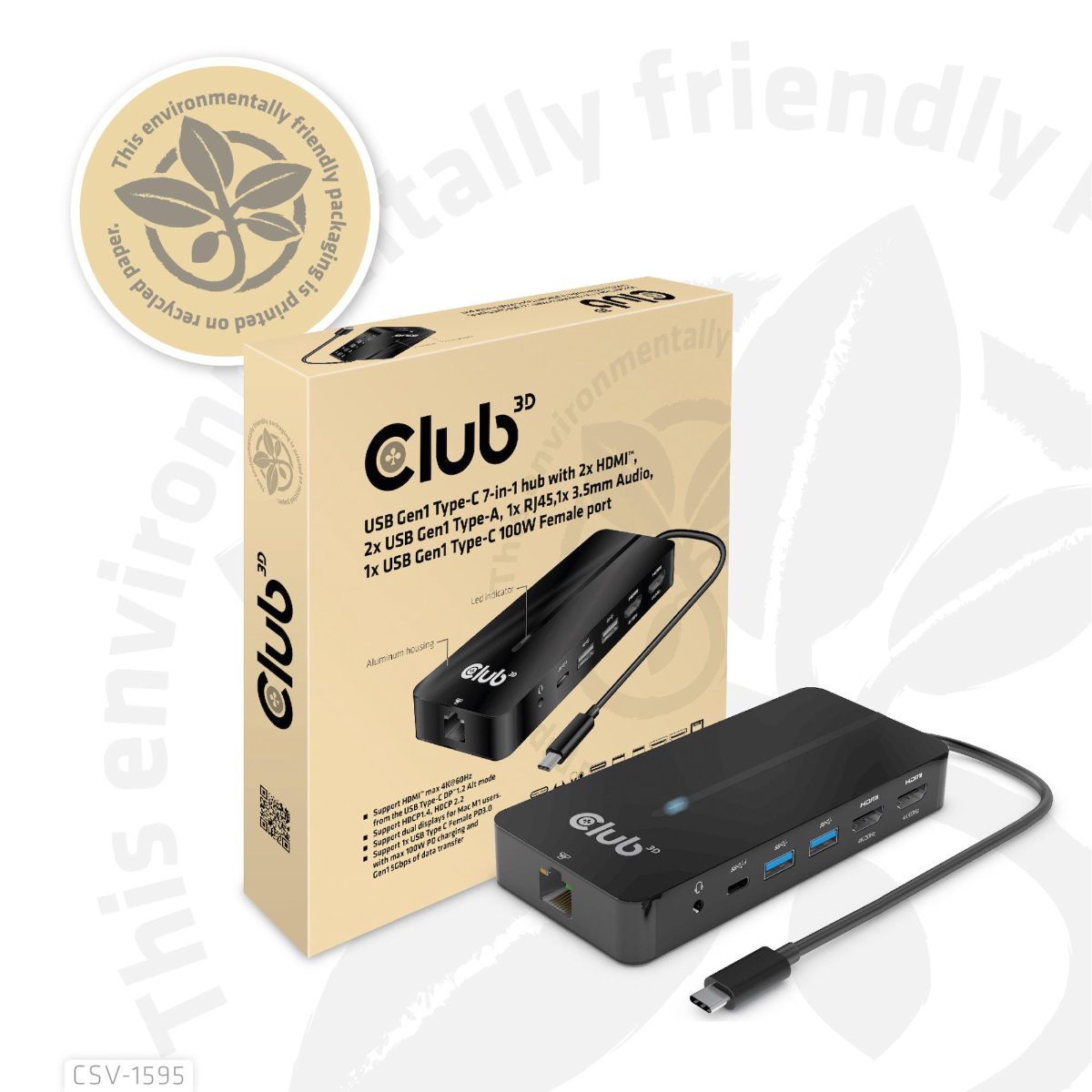

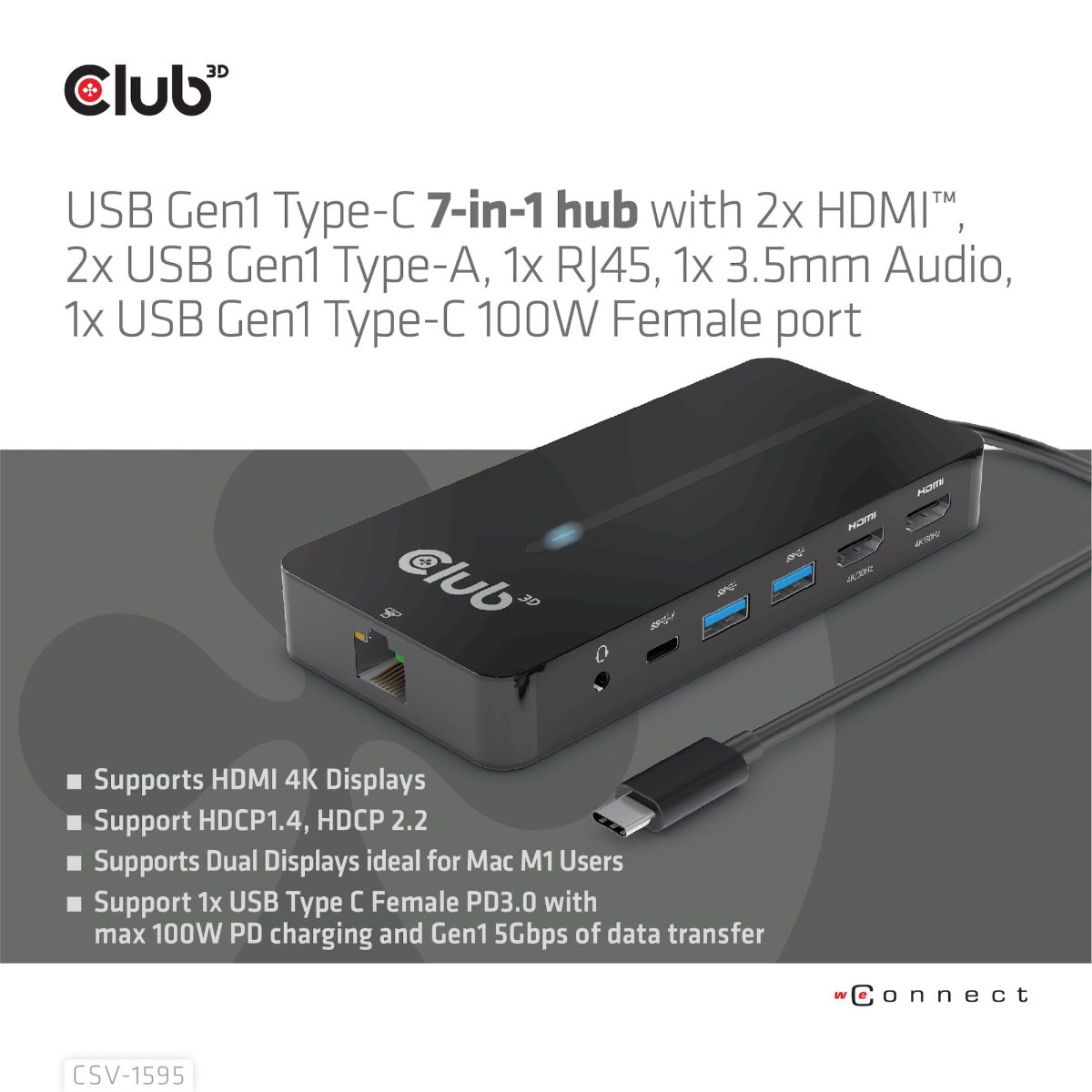

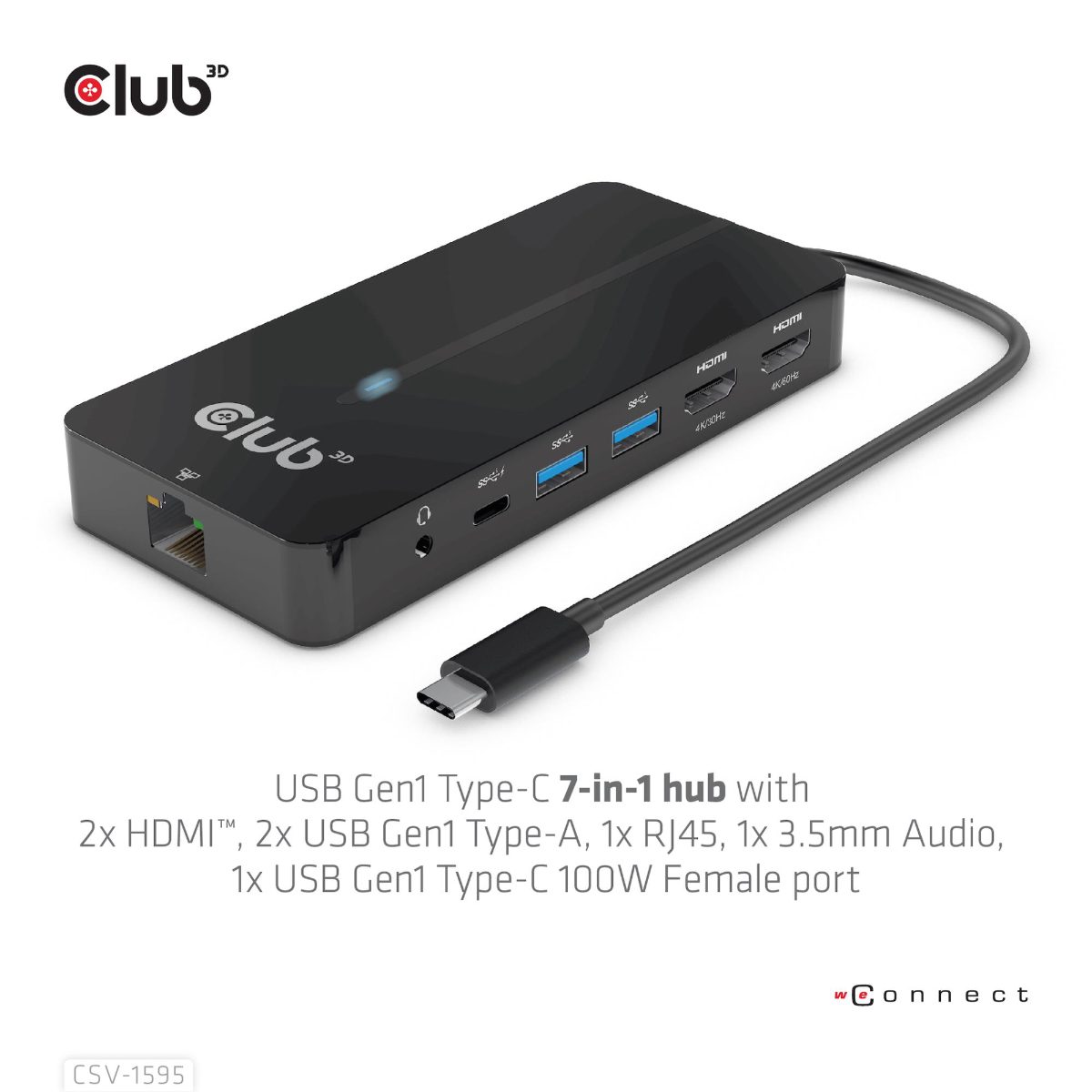

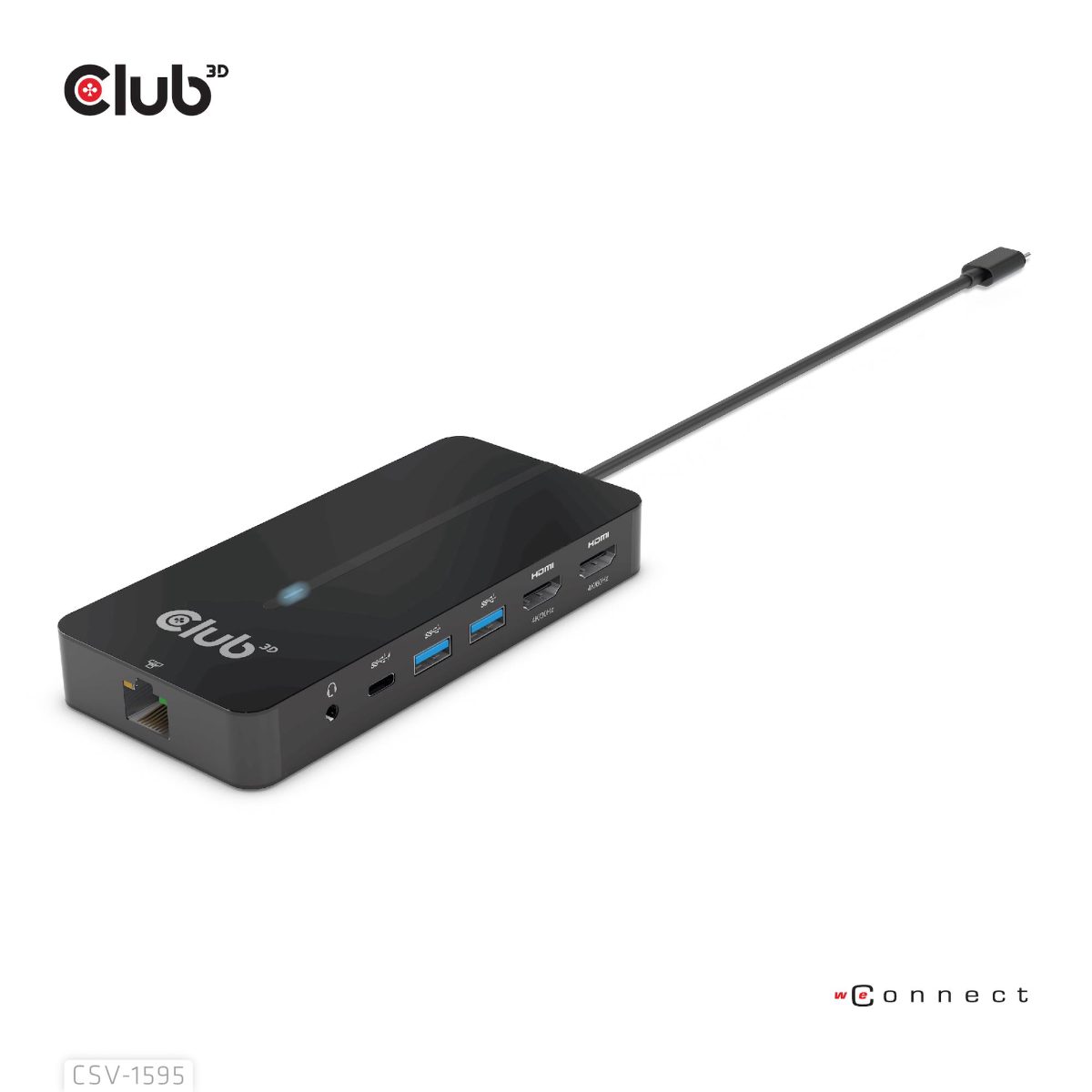

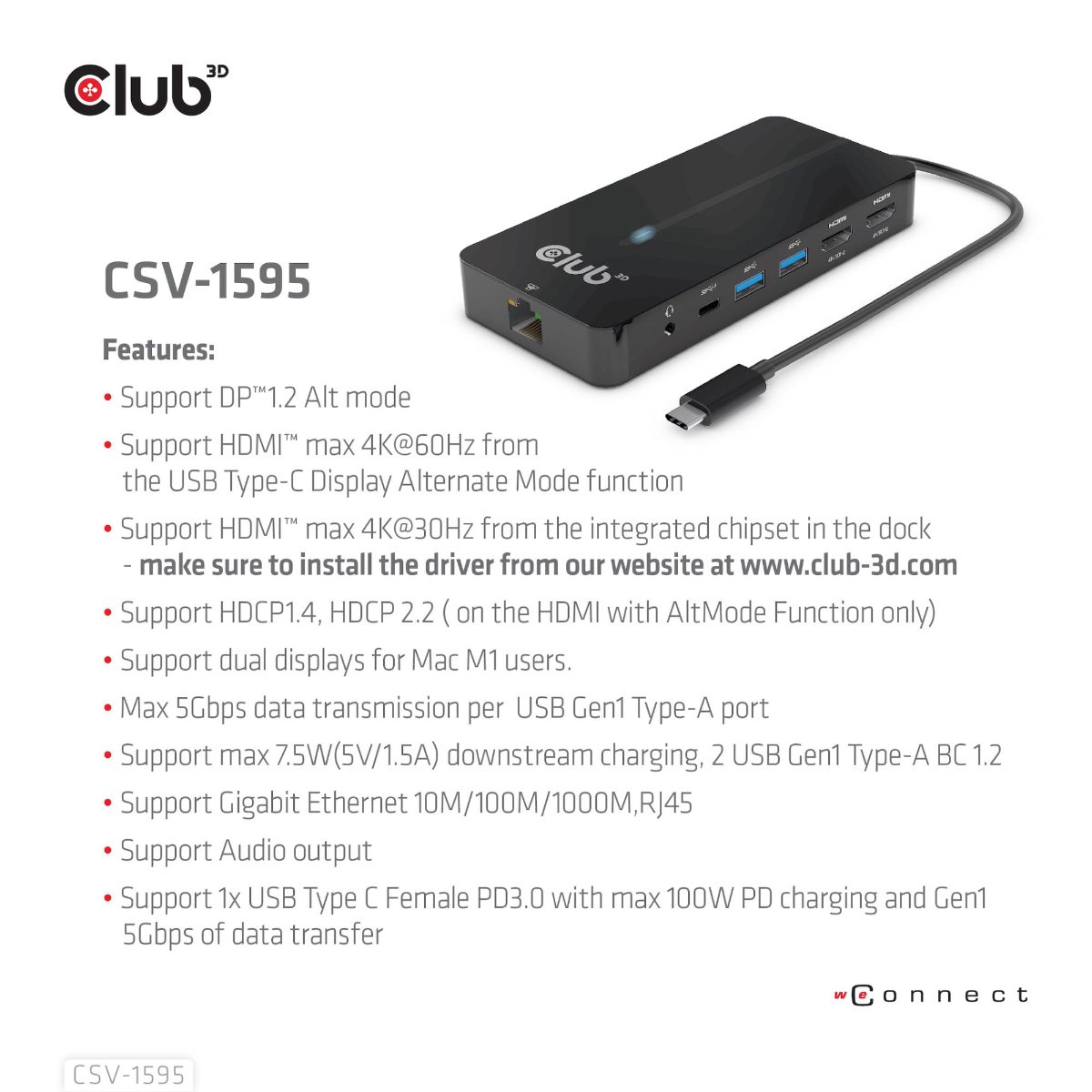

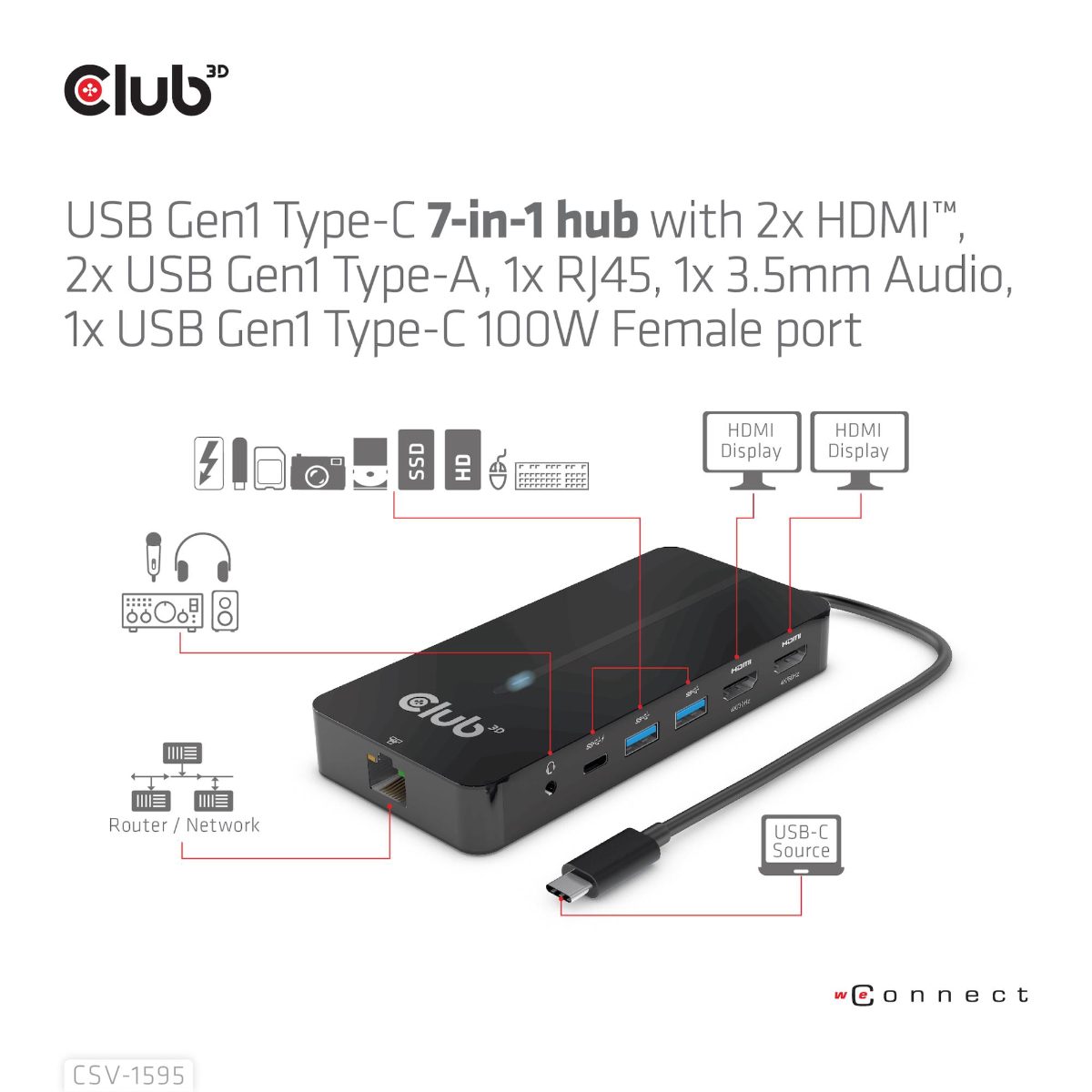

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
Specifications
| Combo headphone/mic port | Yes |
| DC-in jack | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI ports | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 1 Type-C ports | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery power | 100 W |
| USB-C DisplayPort Alternate Mode | Yes |
| Ethernet (RJ-45) ports | 1 |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Card reader | No |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |

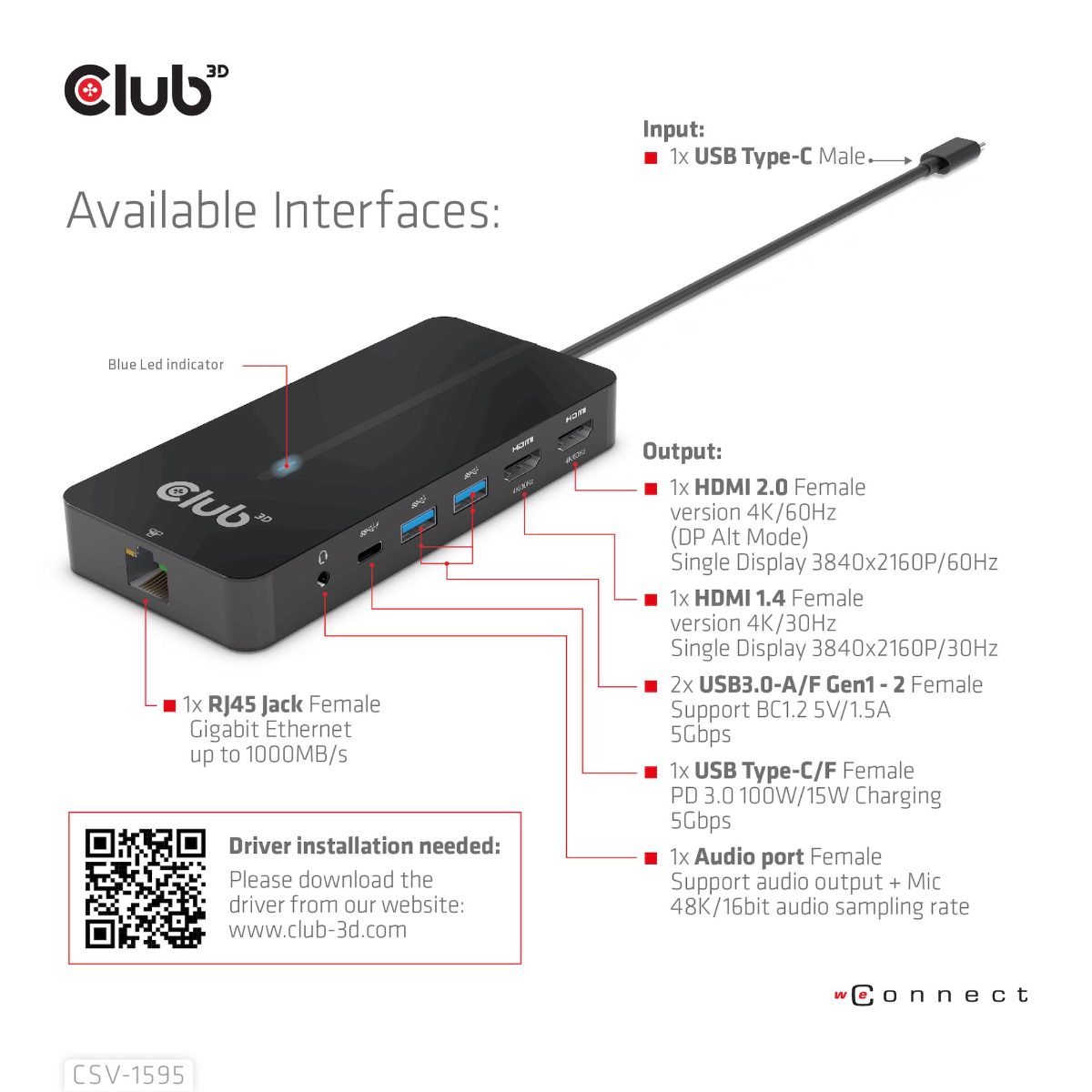

| Hub interfaces | 3.5mm/HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Maximum refresh rate | 60 Hz |
| Supported displays | 2 |
| Plug and Play | Yes |
| Colour | Black |
| Output current | 1.5 A |
| Output voltage | 5 V |
| Power consumption (max) | 7.5 W |
| Wireless charging | No |
| macOS versions supported | Yes |
| Supported Windows operating systems | Yes |

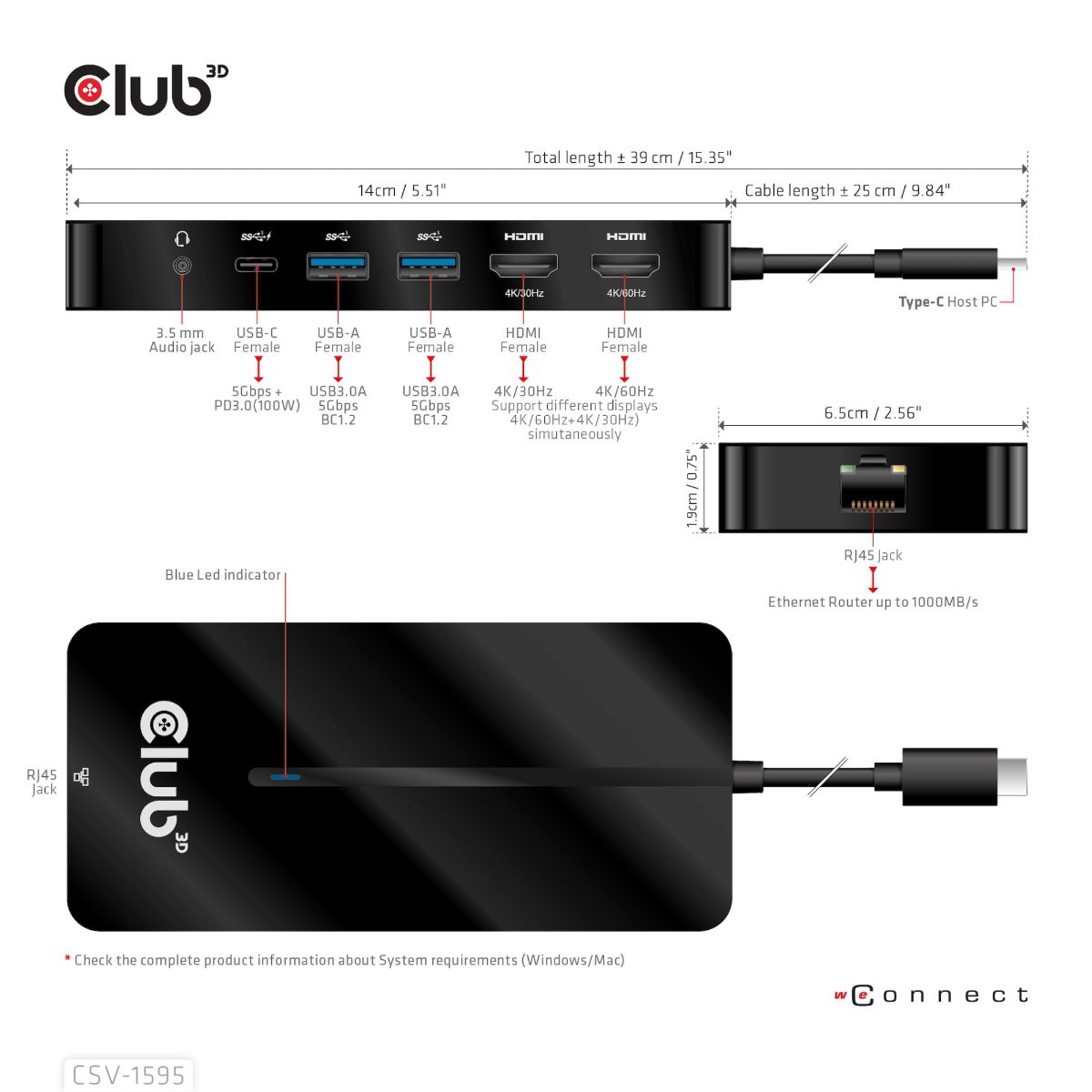

| Depth | 65 mm |
| Height | 19 mm |
| Weight | 210 g |
| Width | 140 mm |

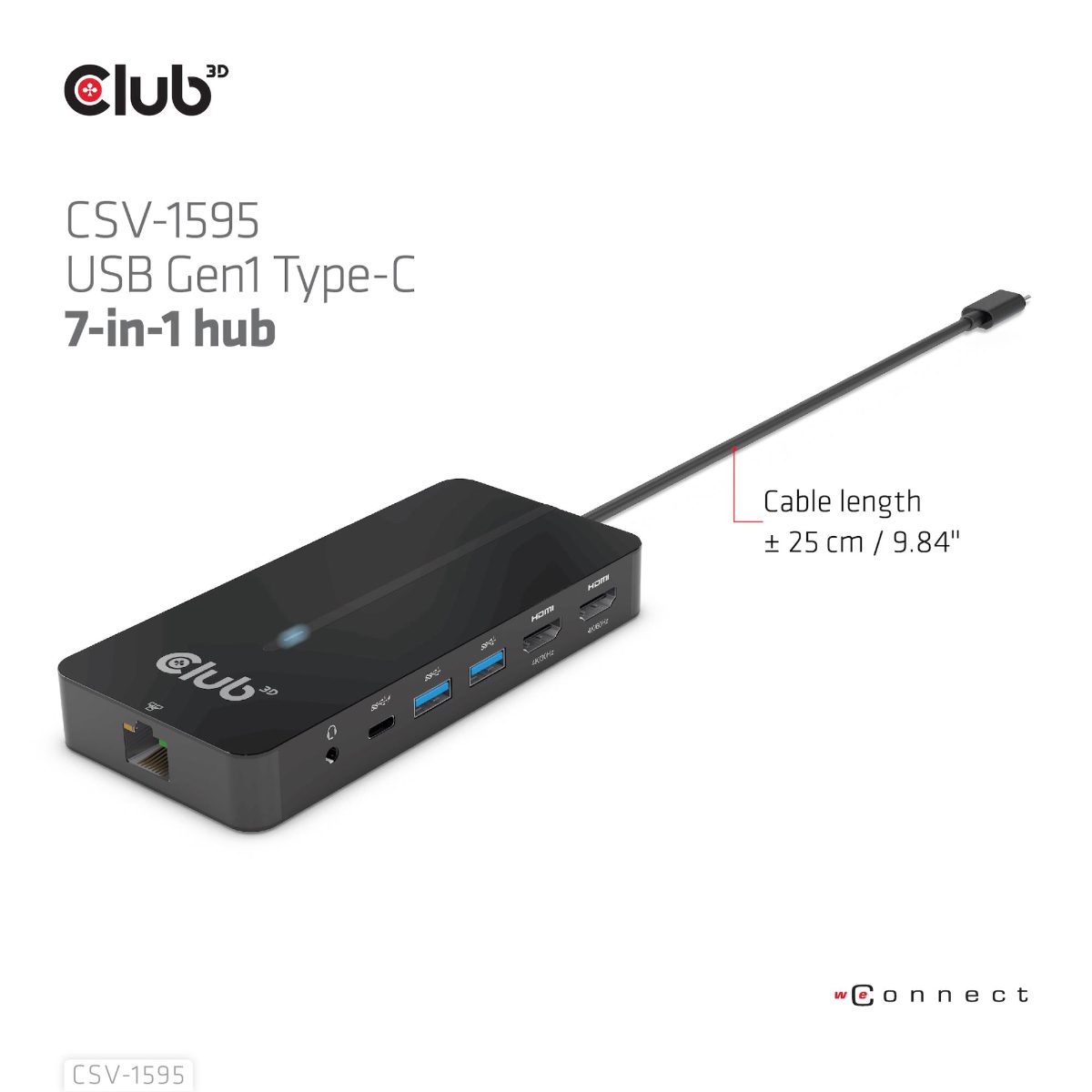

| Cable length | 0.25 m |
| Cable type | Round cable |
| Model | CSV-1595 |
