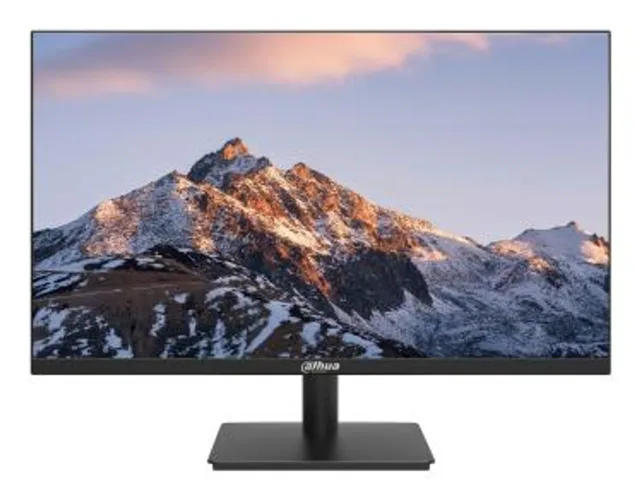

LCD Monitor|DAHUA|23.8 "|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LED|Flat|DHI-LM24-A221Y

About this product

Specifications

Unit Calculated Weight

4 kg

Product Net Weight

2.8 kg

Unit Calculated Volume

0.02977 cubm

Units per Pallet

0

Summary

Dahua Technology LM24-A221Y. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

Vendor Homepage

https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-A221Y=V1

Category Code

LC3

Unit Box Height

0.41

Unit Box Length

0.605

Unit Box Width

0.12

Display

Backlight type

Edge LED

Colour depth

6 bit

Colour gamut standard

NTSC

Contrast ratio (typical)

1200:1

Display brightness (typical)

250 cd/m²

Display diagonal

23.8 "

Display diagonal (metric)

61 cm

Display resolution

1920 x 1080 pixels

Display technology

LED

Haze rate

25 %

HD type

Full HD

LED backlight

Yes

Maximum refresh rate

144 Hz

Native aspect ratio

16:9

NTSC coverage (typical)

72 %

Panel type

IPS

Pixel density

92.56 ppi

Pixel pitch

0.2745 x 0.2745 mm

Response time (MPRT)

1 ms

Screen shape

Flat

Supported graphics resolutions

1920 x 1080 (HD 1080)

Supported video modes

1080p

Surface hardness

3H

Touchscreen

No

Viewable size, horizontal

527.04 mm

Viewable size, vertical

296.46 mm

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Performance

AMD FreeSync

No

Flicker-free technology

Yes

NVIDIA G-SYNC

No

Multimedia

Built-in camera

No

Built-in speaker(s)

No

Design

Feet colour

Black

Front bezel colour

Black

Illuminated stand

No

Market positioning

Office

Product colour

Black

Ports & interfaces

Built-in USB hub

No

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

VGA (D-Sub) ports quantity

1

Network

Bluetooth

No

Wi-Fi

No

Ergonomics

LED indicators

Status

Panel mounting interface

100 x 100 mm

Plug and Play

Yes

Tilt adjustment

Yes

Tilt angle range

-5 - 20 °

VESA mounting

Yes

Wall mountable

Yes

Power

AC adapter output voltage

12 V

Energy consumption (SDR) per 1000 hours

13 kWh

Energy efficiency class (HDR)

Not available

Energy efficiency class (SDR)

D

Energy efficiency scale

A to G

Power consumption (max)

22 W

Power consumption (off)

0.3 W

Power consumption (standby)

0.5 W

Power consumption (typical)

21.2 W

Power supply type

External

Operational conditions

Operating relative humidity (H-H)

10 - 85 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Bezel width (bottom)

16.8 mm

Bezel width (side)

3.6 mm

Bezel width (top)

2.3 mm

Depth (with stand)

189 mm

Depth (without stand)

47.6 mm

Height (with stand)

418.3 mm

Height (without stand)

322.4 mm

Weight (without stand)

2800 g

Width (with stand)

542.1 mm

Width (without stand)

542.1 mm

Packaging data

Package depth

120 mm

Package height

412 mm

Package weight

3900 g

Package width

602 mm

Packaging content

Cables included

HDMI

Manual

Yes

Power adapter included

Yes

Quick start guide

Yes

Stand included

Yes

Other features

Automatic brightness control

No

Compliance certificates

CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Energy Efficiency

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/2452512/fiches?language=EN

Energy efficiency class

D

EPREL Registration Number

2452512

EPREL Version Number

2

Identifiers

Brand

DAHUA

Categories

Monitors

Model

DHI-LM24-A221Y

EAN

6937552425781
