DAHUA

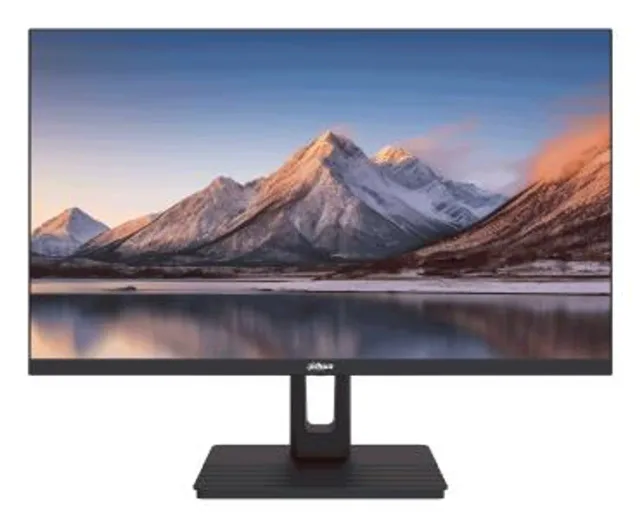

LCD Monitor|DAHUA|23.8 "|2560 x 1440 pixels|Quad HD|Native aspect ratio 16:9|LED|Flat|DHI-LM24-C301B
About this product
- The 2560 × 1440 resolution produces clearer and more vivid images
- IPS panel for wide viewing angles with 3-sided frameless design
- 178° (H) / 178° (V) extra-wide viewing angle for overall viewing performance
- 5 ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience
Specifications
- Unit Calculated Weight
- 4.15 kg
- Product Net Weight
- 3.1 kg
- Unit Calculated Volume
- 0.02928 cubm
- Units per Pallet
- 0
- Category Code
- LC3
- Unit Box Height
- 0.4
- Unit Box Length
- 0.61
- Unit Box Width
- 0.12
Display
- Backlight type
- Edge LED
- Colour depth
- 8 bit
- Colour gamut standard
- NTSC
- Contrast ratio (typical)
- 1200:1
- Display brightness (typical)
- 300 cd/m²
- Display diagonal
- 23.8 "
- Display diagonal (metric)
- 61 cm
- Display resolution
- 2560 x 1440 pixels
- Display technology
- LED
- Haze rate
- 25 %
- HD type
- Quad HD
- LED backlight
- Yes
- Maximum refresh rate
- 100 Hz
- Native aspect ratio
- 16:9
- NTSC coverage (typical)
- 85 %
- Panel type
- IPS
- Response time
- 5 ms
- Screen shape
- Flat
- Supported graphics resolutions
- 2560 x 1440
- Supported video modes
- 1440p
- Touchscreen
- No
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Performance
- AMD FreeSync
- No
- Low Blue Light technology
- Yes
- NVIDIA G-SYNC
- No
Multimedia
- Built-in camera
- No
- Built-in speaker(s)
- No
Design
- Detachable stand
- Yes
- Feet colour
- Black
- Frameless design
- Yes
- Front bezel colour
- Black
- Illuminated stand
- No
- Market positioning
- Office
- Product colour
- Black
Ports & interfaces
- Built-in USB hub
- No
- DisplayPort version
- 1.2
- DisplayPorts quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- Headphone connectivity
- 3.5 mm
- Headphone out
- Yes
Network
- Bluetooth
- No
- Wi-Fi
- No
Ergonomics
- Panel mounting interface
- 75 x 75 mm
- Plug and Play
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -5 - 15 °
- VESA mounting
- Yes
- Wall mountable
- Yes
Power
- AC adapter output voltage
- 12 V
- Energy consumption (SDR) per 1000 hours
- 21 kWh
- Energy efficiency class (HDR)
- Not available
- Energy efficiency class (SDR)
- F
- Power consumption (max)
- 24 W
- Power consumption (off)
- 0.3 W
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 24 W
- Power supply type
- External
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Bezel width (bottom)
- 15.9 mm
- Bezel width (side)
- 3.1 mm
- Bezel width (top)
- 3.1 mm
- Depth (with stand)
- 190 mm
- Depth (without stand)
- 41.3 mm
- Height (with stand)
- 418.6 mm
- Height (without stand)
- 320.4 mm
- Weight (without stand)
- 3100 g
- Width (with stand)
- 539.2 mm
- Width (without stand)
- 539.2 mm
Packaging data
- Package depth
- 111 mm
- Package height
- 405 mm
- Package weight
- 4000 g
- Package width
- 612 mm
Packaging content
- Cables included
- HDMI
- Manual
- Yes
- Power adapter included
- Yes
- Quick start guide
- Yes
- Stand included
- Yes
Other features
- Automatic brightness control
- No
- Compliance certificates
- Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Identifiers
- Brand
- DAHUA
- Categories
- Monitors
- Model
- DHI-LM24-C301B
- EAN
- 6939554921513
