DAHUA

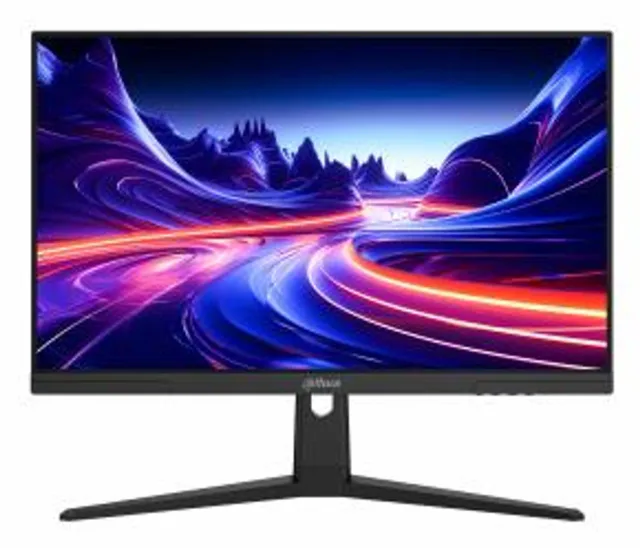

LCD Monitor|DAHUA|24.5 "|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LCD|Flat|DHI-LM25-E241B
About this product
- Wide color gamut, 85% NTSC. It meets the designer's demand of image texture
- 178°H/178°V extra-wide viewing angle for all-round viewing performance
- Adaptive sync can effectively solve picture lagging and tearing problems
- 0.5 ms fast response time with no image blurring or ghosting (with OD)
Specifications
- Unit Calculated Weight
- 4.07 kg
- Product Net Weight
- 2.93 kg
- Unit Calculated Volume
- 0.03599 cubm
- Units per Pallet
- 0
- Summary
- Dahua Technology LM25-E241B. Display diagonal: 62.2 cm (24.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
- Vendor Homepage
- https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Gaming-Series/LM25-E241B=V1
- Category Code
- LC3
- Unit Box Height
- 0.43
- Unit Box Length
- 0.62
- Unit Box Width
- 0.135
Display
- Backlight type
- Edge LED
- Colour depth
- 8 bit
- Colour gamut standard
- NTSC
- Contrast ratio (typical)
- 1000:1
- Display brightness (typical)
- 350 cd/m²
- Display diagonal
- 24.5 "
- Display diagonal (metric)
- 62 cm
- Display number of colours
- 16.7 million colours
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LCD
- Haze rate
- 25 %
- HD type
- Full HD
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- LED backlight
- Yes
- Maximum refresh rate
- 240 Hz
- Native aspect ratio
- 16:9
- NTSC coverage (typical)
- 85 %
- Panel type
- IPS
- Pixel density
- 89.91 ppi
- Pixel pitch
- 0.0944 x 0.2802 mm
- Response time (fast)
- 0.5 ms
- Response time (MPRT)
- 1 ms
- Screen shape
- Flat
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- Supported video modes
- 1080p
- Surface hardness
- 3H
- Touchscreen
- No
- Viewable size, horizontal
- 543.744 mm
- Viewable size, vertical
- 302.616 mm
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Performance
- AMD FreeSync
- No
- Low Blue Light technology
- Yes
- NVIDIA G-SYNC
- No
- VESA Adaptive Sync support
- Yes
Multimedia
- Built-in camera
- No
- Built-in speaker(s)
- No
Design
- Feet colour
- Black
- Frameless design
- No
- Front bezel colour
- Black
- Illuminated stand
- No
- Market positioning
- Gaming
- Product colour
- Black
Ports & interfaces
- Built-in USB hub
- No
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 2.0
- Headphone out
- Yes
Network
- Bluetooth
- No
- Wi-Fi
- No
Ergonomics
- Height adjustment
- No
- LED indicators
- Status
- Panel mounting interface
- 1100 x 100 mm
- Plug and Play
- Yes
- Tilt angle range
- -5 - 20 °
- VESA mounting
- Yes
- Wall mountable
- Yes
Power
- AC adapter output voltage
- 12 V
- Energy consumption (HDR) per 1000 hours
- 33 kWh
- Energy consumption (SDR) per 1000 hours
- 18 kWh
- Energy efficiency class (HDR)
- G
- Energy efficiency class (SDR)
- E
- Energy efficiency scale
- A to G
- Input current
- 3 A
- Power consumption (max)
- 23.8 W
- Power consumption (off)
- 0.3 W
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 19 W
- Power supply type
- Internal
Operational conditions
- Operating relative humidity (H-H)
- 10 - 80 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Bezel width (bottom)
- 19.61 mm
- Bezel width (side)
- 6.98 mm
- Bezel width (top)
- 6.98 mm
- Depth (with stand)
- 205.7 mm
- Depth (without stand)
- 58 mm
- Height (with stand)
- 431.7 mm
- Height (without stand)
- 330.6 mm
- Weight (without stand)
- 2930 g
- Width (with stand)
- 557.7 mm
- Width (without stand)
- 557.7 mm
Packaging data
- Package depth
- 134 mm
- Package height
- 431 mm
- Package weight
- 4000 g
- Package width
- 620 mm
Packaging content
- Cables included
- DisplayPort
- Manual
- Yes
- Power adapter included
- Yes
- Stand included
- Yes
Other features
- Automatic brightness control
- No
- Compliance certificates
- CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Energy Efficiency
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/2336702/fiches?language=EN
- Energy efficiency class
- E
- EPREL Registration Number
- 2336702
- EPREL Version Number
- 1
Identifiers
- Brand
- DAHUA
- Categories
- Monitors
- Model
- DHI-LM25-E241B
- EAN
- 6937552401945
