DAHUA

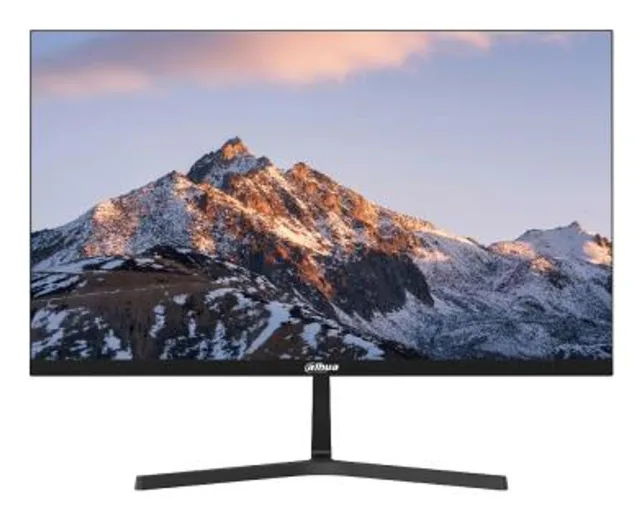

LCD Monitor|DAHUA|27 "|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LED|Flat|DHI-LM27-B221S
About this product
- The 144Hz refresh rate provides an instant, tangible improvement in image smoothness
- The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles
- 1ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience
Specifications
- Unit Calculated Weight
- 5.11 kg
- Product Net Weight
- 3.84 kg
- Unit Calculated Volume
- 0.03542 cubm
- Units per Pallet
- 0
- Summary
- Dahua Technology LM27-B221S. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
- Vendor Homepage
- https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM27-B221S=V1
- Category Code
- LC3
- Unit Box Height
- 0.46
- Unit Box Length
- 0.7
- Unit Box Width
- 0.11
Display
- Backlight type
- Edge LED
- Colour gamut standard
- NTSC
- Contrast ratio (typical)
- 1200:1
- Display brightness (typical)
- 250 cd/m²
- Display diagonal
- 27 "
- Display diagonal (metric)
- 69 cm
- Display number of colours
- 16.7 million colours
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LED
- Haze rate
- 25 %
- HD type
- Full HD
- LED backlight
- Yes
- Maximum refresh rate
- 144 Hz
- Native aspect ratio
- 16:9
- NTSC coverage (typical)
- 72 %
- Panel type
- IPS
- Pixel density
- 81.59 ppi
- Pixel pitch
- 0.3114 x 0.3114 mm
- Response time (MPRT)
- 1 ms
- Screen shape
- Flat
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- Supported video modes
- 1080p
- Surface hardness
- 3H
- Touchscreen
- No
- Viewable size, horizontal
- 597.888 mm
- Viewable size, vertical
- 336.312 mm
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Performance
- AMD FreeSync
- No
- Low Blue Light technology
- Yes
- NVIDIA G-SYNC
- No
Multimedia
- Built-in camera
- No
- Built-in speaker(s)
- Yes
- Number of speakers
- 2
- RMS rated power
- 2 W
Design
- Feet colour
- Black
- Front bezel colour
- Black
- Illuminated stand
- No
- Market positioning
- Office
- Product colour
- Black
Ports & interfaces
- Built-in USB hub
- No
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 2.0
- Headphone out
- Yes
Network
- Bluetooth
- No
- Wi-Fi
- No
Ergonomics
- Height adjustment
- No
- Panel mounting interface
- 75 x 75 mm
- Plug and Play
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -5 - 15 °
- VESA mounting
- Yes
- Wall mountable
- Yes
Power
- AC adapter output voltage
- 12 V
- Energy consumption (SDR) per 1000 hours
- 21 kWh
- Energy efficiency class (HDR)
- Not available
- Energy efficiency class (SDR)
- E
- Energy efficiency scale
- A to G
- Input current
- 3 A
- Power consumption (max)
- 29 W
- Power consumption (off)
- 0.3 W
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 27 W
- Power supply type
- External
Operational conditions
- Operating relative humidity (H-H)
- 10 - 85 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Bezel width (bottom)
- 16.1 mm
- Bezel width (side)
- 1.9 mm
- Bezel width (top)
- 1.9 mm
- Depth (with stand)
- 183.9 mm
- Depth (without stand)
- 45.1 mm
- Height (with stand)
- 458.4 mm
- Height (without stand)
- 363 mm
- Weight (without stand)
- 3840 g
- Width (with stand)
- 614.1 mm
- Width (without stand)
- 614.1 mm
Packaging data
- Package depth
- 114 mm
- Package height
- 458 mm
- Package weight
- 5290 g
- Package width
- 694 mm
Packaging content
- Cables included
- HDMI
- Power adapter included
- Yes
- Stand included
- Yes
Other features
- Automatic brightness control
- No
- Compliance certificates
- CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
- E-manual
- Yes
Energy Efficiency
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/2327271/fiches?language=EN
- Energy efficiency class
- E
- EPREL Registration Number
- 2327271
- EPREL Version Number
- 1
Identifiers
- Brand
- DAHUA
- Categories
- Monitors
- Model
- DHI-LM27-B221S
- EAN
- 6937552407527
