DAHUA

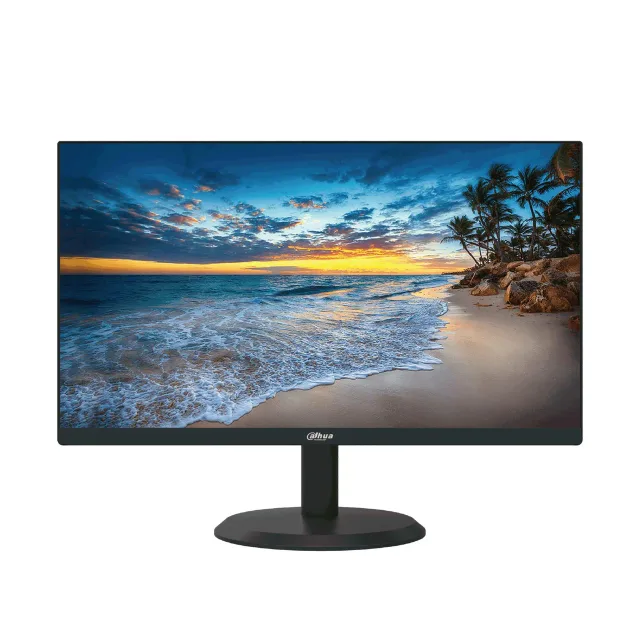

LCD Monitor|DAHUA|DHI-LM22-H200|21.45"|1920x1080|16:9|60HZ|6.5 ms|Speakers|LM22-H200
About this product
- Suitable for continuous 24/7 operation
- Ultra-thin body with metal housing
- Micro bezel design, elegant appearance, ultra-light base
- 6.5ms fast response time with no image blurring or ghosting
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- Support multiple signal inputs including HDMI and VGA
- Low energy consumption, long service life
Specifications
- Unit Calculated Weight
- 3.6 kg
- Product Net Weight
- 2.1 kg
- Unit Calculated Volume
- 0.02236 cubm
- Summary
- Dahua Technology LM22-H200. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
- Vendor Homepage
- https://www.dahuasecurity.com/products/productDetail/61627?from=rss
- Category Code
- LC3
- Unit Box Height
- 0.363
- Unit Box Length
- 0.555
- Unit Box Width
- 0.111
- Model name
- DHI-LM22-H200
- Model
- DHI-LM22-H200
Display
- Backlight type
- W-LED
- Contrast ratio (typical)
- 1000:1
- Display brightness (typical)
- 250 cd/m²
- Display diagonal
- 21.45 "
- Display number of colours
- 16.7 million colours
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LED
- HD type
- Full HD
- Maximum refresh rate
- 60 Hz
- Native aspect ratio
- 16:9
- Response time
- 6.5 ms
- Screen shape
- Flat
- Touchscreen
- No
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Multimedia
- Built-in camera
- No
- Built-in speaker(s)
- Yes
- Number of speakers
- 2
- RMS rated power
- 3 W
Design
- Market positioning
- Home
- Product colour
- Black
Ports & interfaces
- Audio input
- Yes
- Built-in USB hub
- No
- HDMI
- Yes
- HDMI ports quantity
- 1
- Headphone out
- No
- VGA (D-Sub) ports quantity
- 1
Ergonomics
- Panel mounting interface
- 75 x 75 mm
- VESA mounting
- Yes
Power
- Energy consumption (SDR) per 1000 hours
- 18 kWh
- Energy efficiency class (SDR)
- F
- Energy efficiency scale
- A to G
- European Product Registry for Energy Labelling (EPREL) code
- 619532
- Input current
- 2 A
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 24 W
Operational conditions
- Operating relative humidity (H-H)
- 10 - 85 %
- Operating temperature (T-T)
- 0 - 40 °C
Weight & dimensions
- Depth (with stand)
- 200 mm
- Depth (without stand)
- 38 mm
- Height (with stand)
- 369.4 mm
- Height (without stand)
- 285.1 mm
- Weight (without stand)
- 3300 g
- Width (with stand)
- 491.7 mm
- Width (without stand)
- 491.7 mm
Packaging data
- Package depth
- 548 mm
- Package height
- 108 mm
- Package width
- 355 mm
Packaging content
- Cables included
- AC/HDMI
- Stand included
- Yes
Other features
- Certification
- CE, FCC
Energy Efficiency
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/619532/fiches?language=EN
- Energy efficiency class
- E
- EPREL Registration Number
- 619532
- EPREL Version Number
- 7
Identifiers
- Brand
- DAHUA
- Categories
- Monitors
- Model
- DHI-LM22-H200
- EAN
- 6923172508317
