DAHUA

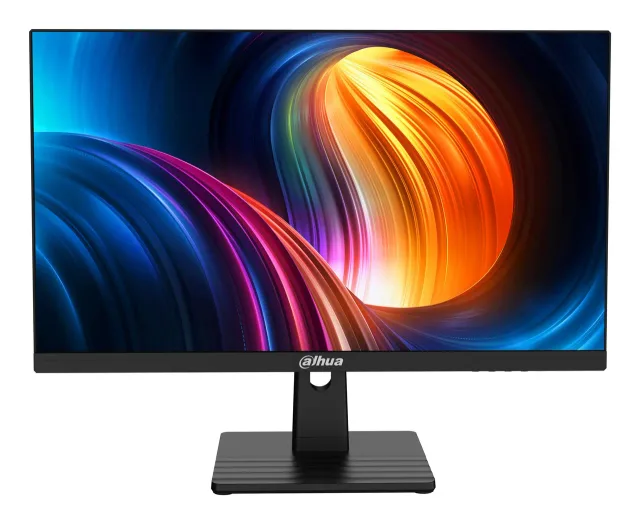

LCD Monitor|DAHUA|LM25-B221B|24.5"|Business|Panel IPS|1920x1080|16:9|144Hz|1 ms|Colour Black|DHI-LM25-B221B
About this product
- The 144Hz refresh rate provides an instant, tangible improvement in image smoothness
- The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles
- Wide color gamut, 85% NTSC, It meets the designer's demand of image texture
- 1ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience
Specifications
- Unit Calculated Weight
- 4.1 kg
- Product Net Weight
- 2.9 kg
- Unit Calculated Volume
- 0.03557 cubm
- Units per Pallet
- 0
- Summary
- Dahua Technology LM25-B221B. Display diagonal: 62.2 cm (24.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
- Vendor Homepage
- https://www.dahuasecurity.com/search/products?keyword=DHI-LM25-B221B-A5-V1
- Category Code
- LC3
- Unit Box Height
- 0.425
- Unit Box Length
- 0.62
- Unit Box Width
- 0.135
- Model name
- LM25-B221B
- Model
- DHI-LM25-B221B
Display
- Backlight type
- Edge LED
- Colour gamut standard
- NTSC
- Contrast ratio (typical)
- 1500:1
- Display brightness (typical)
- 300 cd/m²
- Display diagonal
- 24.5 "
- Display diagonal (metric)
- 62 cm
- Display number of colours
- 16.7 million colours
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LED
- Haze rate
- 25 %
- HD type
- Full HD
- LED backlight
- Yes
- Maximum refresh rate
- 144 Hz
- Native aspect ratio
- 16:9
- NTSC coverage (typical)
- 85 %
- Panel type
- IPS
- Pixel density
- 89.91 ppi
- Pixel pitch
- 0.2832 x 0.2802 mm
- Response time (MPRT)
- 1 ms
- Screen shape
- Flat
- Surface hardness
- 3H
- Touchscreen
- No
- Viewable size, horizontal
- 476.064 mm
- Viewable size, vertical
- 267.786 mm
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Performance
- Low Blue Light technology
- Yes
Multimedia
- Built-in camera
- No
- Built-in speaker(s)
- No
Design
- Detachable stand
- Yes
- Feet colour
- Black
- Frameless design
- Yes
- Front bezel colour
- Black
- Product colour
- Black
Ports & interfaces
- Audio output
- Yes
- Built-in USB hub
- No
- DisplayPorts quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 1.4/2.0
Ergonomics
- Height adjustment
- No
- LED indicators
- Yes
- Panel mounting interface
- 100 x 100 mm
- Plug and Play
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -5 - 20 °
- VESA mounting
- Yes
- Wall mountable
- Yes
Power
- AC adapter output voltage
- 12 V
- Current rating
- 2.5 A
- Energy consumption (SDR) per 1000 hours
- 15 kWh
- Energy efficiency class (HDR)
- Not available
- Energy efficiency class (SDR)
- D
- Energy efficiency scale
- A to G
- Power consumption (max)
- 23.8 W
- Power consumption (off)
- 0.3 W
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 19 W
- Power supply type
- External
Operational conditions
- Operating relative humidity (H-H)
- 10 - 85 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Bezel width (bottom)
- 19.6 mm
- Bezel width (side)
- 2.1 mm
- Bezel width (top)
- 2.1 mm
- Depth (without stand)
- 58.1 mm
- Height (without stand)
- 330.6 mm
- Weight (without stand)
- 2900 g
- Width (without stand)
- 557.7 mm
Packaging data
- Package depth
- 134 mm
- Package height
- 431 mm
- Package type
- Box
- Package weight
- 3900 g
- Package width
- 620 mm
Packaging content
- Cables included
- HDMI
- Manual
- Yes
- Power adapter included
- Yes
- Quick start guide
- Yes
- Stand included
- Yes
Other features
- Compliance certificates
- CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
- Mean time between failures (MTBF)
- 30000 h
Energy Efficiency
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/2323994/fiches?language=EN
- Energy efficiency class
- D
- EPREL Registration Number
- 2323994
- EPREL Version Number
- 1
Identifiers
- Brand
- DAHUA
- Categories
- Monitors
- Model
- DHI-LM25-B221B
- EAN
- 6937552404779
