Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5
Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 2xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PRIMEB760M-A-CSM
ASUS · 4711387140710
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711387140710
- Brand
- ASUS
Description
B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Specifications
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset | Intel B760 |
| Chipset family | Intel |
| Form factor | micro ATX |
| Supported Windows operating systems | Windows 10 x64/Windows 11 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 128 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 7200 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Supported HDDs | 4 |
| Supported storage drives | 6 |
| Supported drive interfaces | M.2,SATA III |
| Supported drive types | HDD & SSD |
| Multi-GPU technology | Not supported |
| 12V power connector | Yes |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| EPS power connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Fan connector count | 2 |
| COM ports | 1 |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM header | Yes |
| Internal USB 2.0 connectors | 3 |
| Internal USB 3.2 Gen 1 connectors | 3 |
| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 2 |
| Headphone outputs | 1 |
| Line in | Yes |
| Microphone input | Yes |
| PS/2 ports | 1 |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| Wi-Fi AP antenna jack | 1 |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| M.2 slot count | 2 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Depth | 244 mm |
| Height | 40 mm |
| Width | 244 mm |

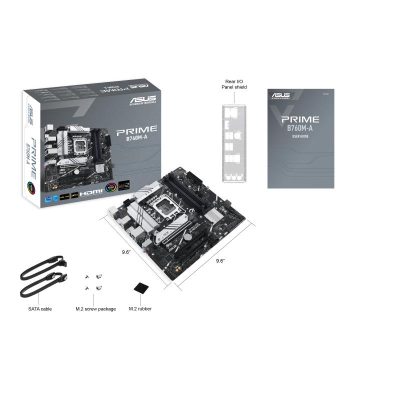

| Cables included | SATA |
| Model | PRIME B760M-A-CSM |
