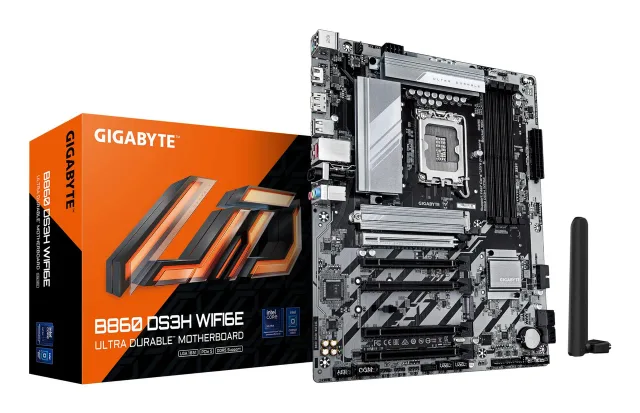

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|5xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|1xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|B860DS3HWIFI6E1.0

About this product

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Hybrid 8+1+2+2 Phases 50A PPAK VRM
Dual Channel DDR5：4*DIMMs
PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
M.2 Gen5 (Up to 25110) with EZ-Latch Plus
MOSFET Heatsinks/M.2 Thermal Guard
Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
2.5GbE LAN, USB 3.2 Gen2x2 Type-C
Q-Flash Plus

Specifications

Unit Calculated Weight: 1.63 kg
Unit Calculated Volume: 0.01042 cubm
Units per Shipping Box: 8
Summary: GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBI
Unit Box Height: 0.275
Unit Box Length: 0.345
Unit Box Width: 0.085
Model: B860 DS3H WIFI6E

Features

Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Motherboard form factor: ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64

Processor

Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851

Memory

ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9066 MHz
Supported memory clock speeds: 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes

Storage controllers

Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD

Graphics

DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported

Internal I/O

ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of water pump connectors: 3
RGB LED pin header: Yes
S/PDIF out connector: Yes
Serial port headers: 1
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Rear panel I/O ports

DisplayPort version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2

Network

Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211

Expansion slots

1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 25110
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 4
PCI Express x16 (Gen 5.x) slots: 1

BIOS

ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Packaging data

Package depth: 270 mm
Package height: 80 mm
Package width: 335 mm

Weight & dimensions

Depth: 244 mm
Height: 35 mm
Width: 305 mm

Packaging content

Antenna included: Yes
Batteries included: Yes
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes

Technical details

Warranty period: 3 year(s)

Other features

Weight: 2000 g

Identifiers

Brand: GIGABYTE
Categories: Components
Model: B860 DS3H WIFI6E 1.0
EAN: 4719331867515
