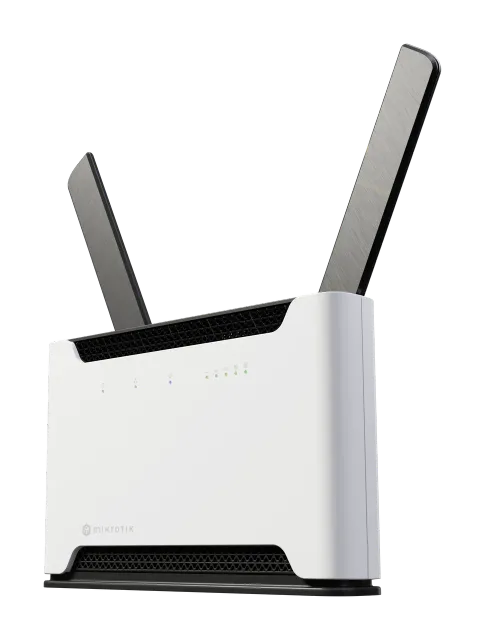

MikroTik Chateau LTE18 ax S53UG+5HaxD2HaxD-TC&EG18-EA 802.11ax, 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s, Ethernet LAN (RJ-45) ports 4, 4G, 1 | MikroTik | Chateau LTE18 ax | S53UG+5HaxD2HaxD-TC&EG18-EA | 802.11ax | 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s | Ethernet LAN (RJ-45) ports 4 | 4G | 1

Specifications

Package features

Gross depth (mm)

330.00 mm

Gross height (mm)

160.00 mm

Gross width (mm)

57.00 mm

Packing quantity

1.00 pc(s)

Paper/Pasteboard

200.00 g

Tare weight (kg)

0.20 kg

Volume (m3)

0.00 m³

Embeeded battery

No

WEEE tax

Yes

WEE classification

CL109:6:2017-04-01

Palette Qty

574 pc(s)

Technical details

Gross weight

0.90 kg

Net weight

0.70 kg

Software type

RouterOS v7, License level 4

Wireless connection

2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain

Other features

Quad-Core IPQ-6010 1.8 GHz CPU, 1 GB RAM, LTE18 (1.2Gbps Downlink, 150Mbps Uplink), 1xMicro SIM slot, 1x2.5G Ethernet port

Producer

MikroTik

Producer product name

S53UG+5HaxD2HaxD-TC&EG18-EA

Producer product family

Chateau LTE18 ax

Warranty

12 month(s)

Operational conditions

Operating temperature (T-T)

-40°C to +65°C °C

Wireless LAN features

Dual-band

Y

Wi-Fi band

802.11ax

Other features

USB ports quantity

1

Ethernet LAN (RJ-45) ports

4

Box contents

24 V 1.2 A power adapter + UTP Flat Cable (1.5m)

Special features

2Chateau LTE18 ax On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments. The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

Weight & dimensions

Width

15,6 cm

Height

24,0 cm

Depth

0,44 cm

Power

Power consumption (max)

19 W W

Hard drive

Storage capacity

128 MB, NAND MB

Performance

Wi-Fi data rate (max)

574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s

5 GHz

Y

2.4 GHz

Y

Certificates

Certification

CE, EAC, ROHS

Antenna

Antennas quantity

4

Features

Mobile Broadband

4G

Identifiers

Brand

MikroTik

Categories

Networking

Model

S53UG+5HaxD2HaxD-TC&EG18-EA

E13

4752224007889
