MikroTik CRS305-1G-4S+OUT FiberBox Plus, MikroTik, FiberBox Plus
MikroTik CRS305-1G-4S+OUT FiberBox Plus, MikroTik, FiberBox Plus, CRS305-1G-4S+OUT, Gigabit Ethernet (copper) ports quantity 1, SFP ports quantity 4
MikroTik · 4752224006523
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 12 mo.
- Invoice: with every order
- EAN
- 4752224006523
- Brand
- MikroTik
Description

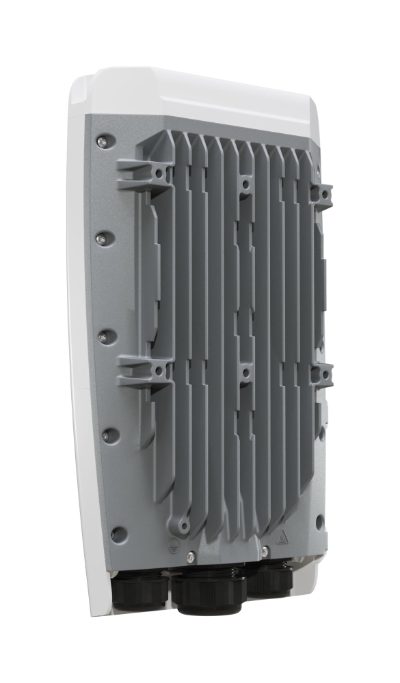

Ultimate value pick for 10 Gigabit outdoor networking. High masts, poles, or towers – your connection will be safe! A powerful budget version of the netFiber 9.

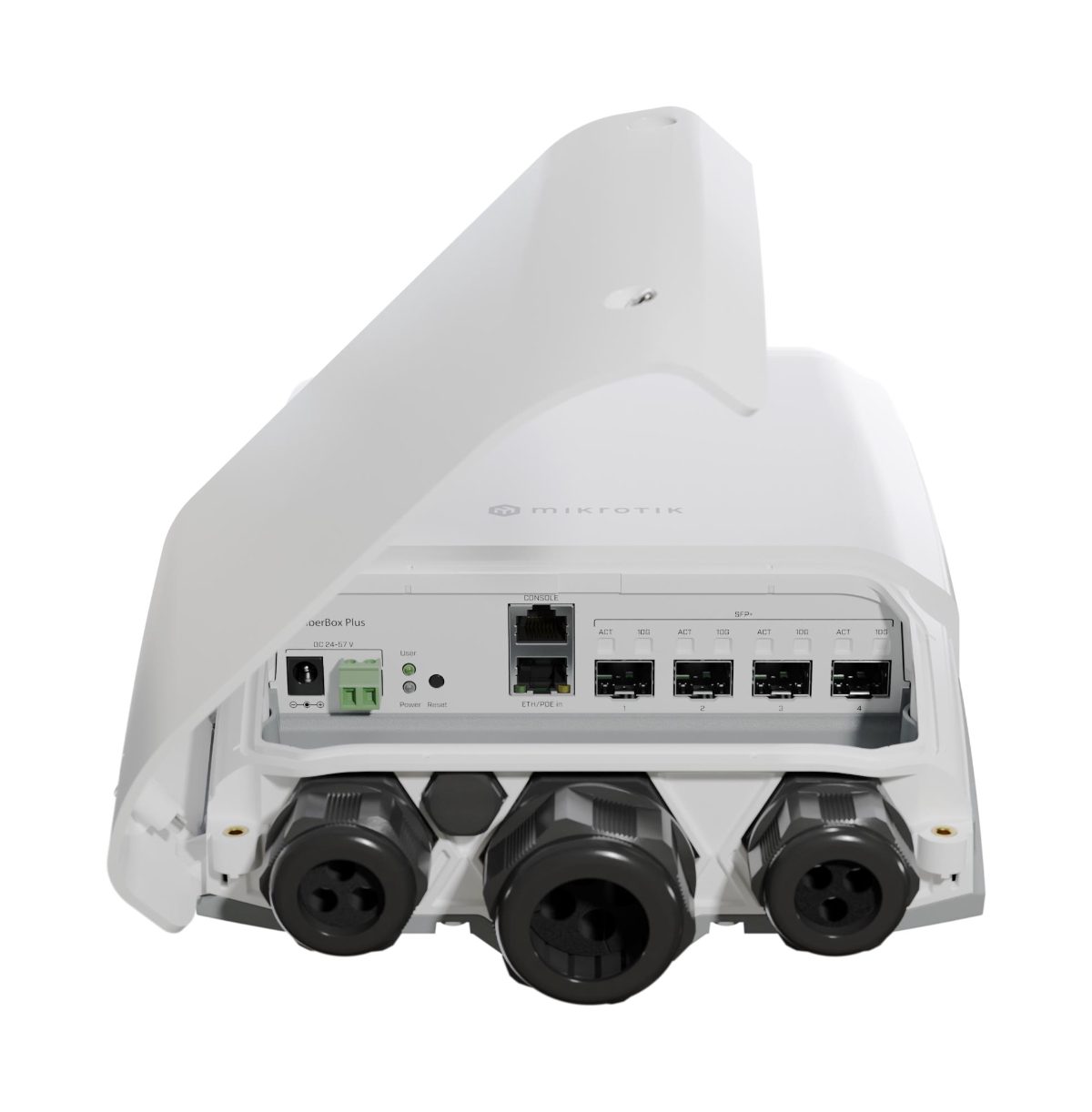

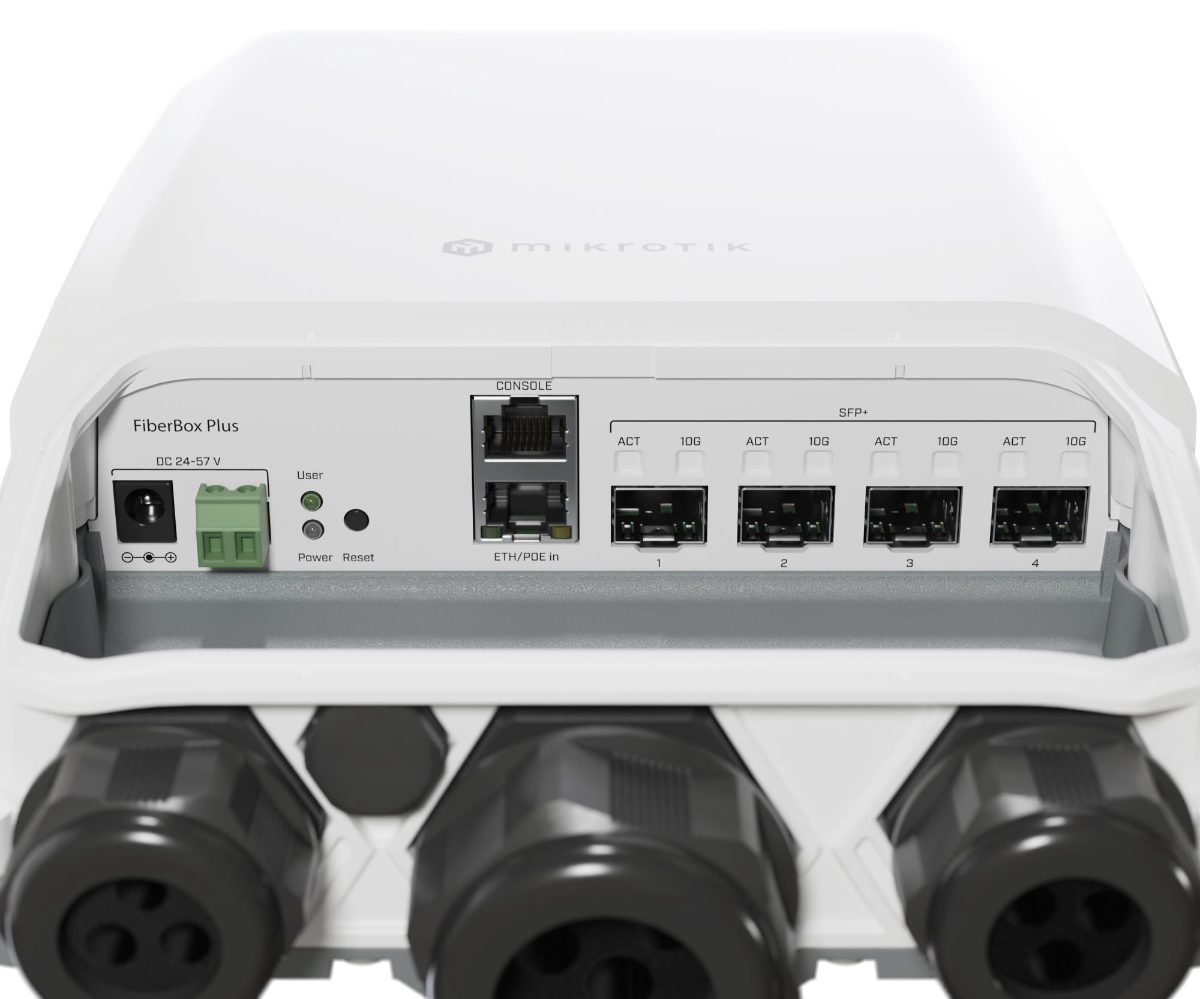

There are two ways to look at the brand new Fiber Box Plus. On the one hand, it’s a massive upgrade of our previous FiberBox devices. This version features a modern ARM CPU, more RAM, and four 10-Gigabit SFP+ ports. Fast and reliable connectivity on a budget. Without the distance limitations of Ethernet. There’s also a Gigabit Ethernet port for management purposes or PoE-in powering. We’ve also included a 2-pin terminal and a standard DC jack, so you have 3 different power options to choose from. FiberBox Plus supports a wide input voltage range of 24-57V. And it is remarkably efficient: maximum power consumption (without attachments) is only 7W.
Another way to look at the new FiberBox Plus – it’s a budget version of the amazing netFiber 9. You can save a lot of money if you don’t need the extra Gigabit SFP ports. It even features the same impressive Marvell 98DX226S switch-chip, so the performance is definitely there!
This rugged outdoor switch is perfect for connecting mast devices. Like the mANTBox 52 or the LHG XL 52. Imagine a huge campsite with several guest houses, a food court, and the owner’s cabin. You can connect all the locations with the FiberBox Plus. One of the fiber connections can be used for the mANTBox base station – to provide general connectivity for the guests. Another connection could go to the owner’s house. And the third could be used in the food court – to connect their payment and inventory servers.

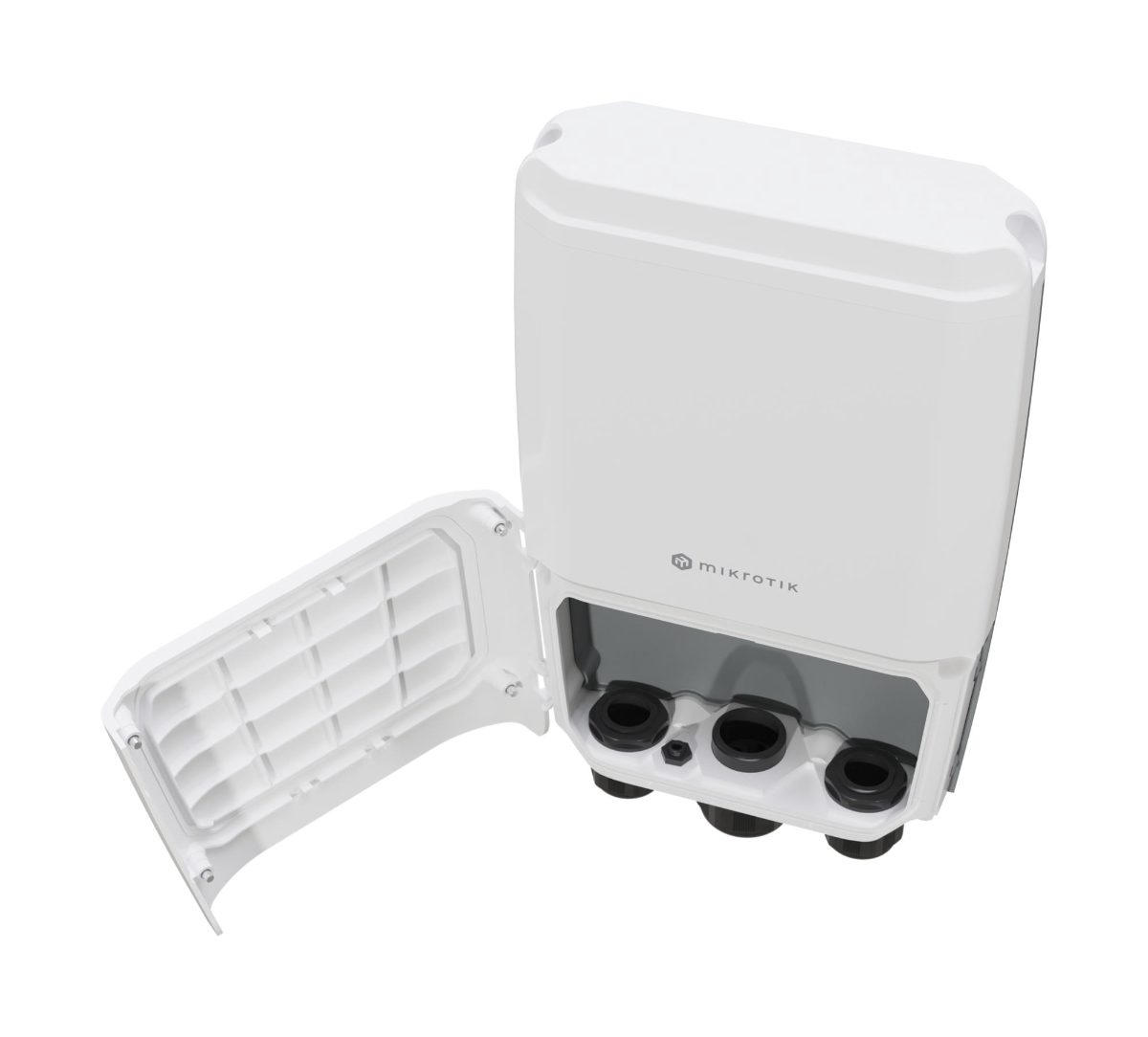

Usually, you would need some kind of a junction box to keep everything safe. But our FiberBox Plus comes with a solid water resistance rating of IP66. That means protection against powerful water jets from any direction. So in the campsite scenario, your setup is not only safe from all kinds of crazy weather, but it can also withstand young pranksters with a garden hose. Not to mention damp basements, elevator shafts, seaport infrastructure, and so on. With FiberBox Plus, you have nothing to worry about.
Specifications
| Switch type | Managed |
| Ethernet (RJ-45) ports | 1 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| SFP+ module slots | 4 |
| 10 Gigabit support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Colour | White |
| Rack mountable | No |
| Stackable | No |
| Temperature sensor | Yes |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Memory capacity | 256 MB |
| Minimum RAM | 256 MB |
| Operating system | RouterOS |
| Processor frequency | 800 MHz |
| Processor manufacturer | ARM |
| Processor model | 98DX226S |
| Input voltage | 24 - 57 V |
| Power consumption (max) | 17 W |
| Power consumption (typical) | 7 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet | Yes |
| Operating temperature | -40 - 70 °C |
| Model | CRS305-1G-4S+OUT |
