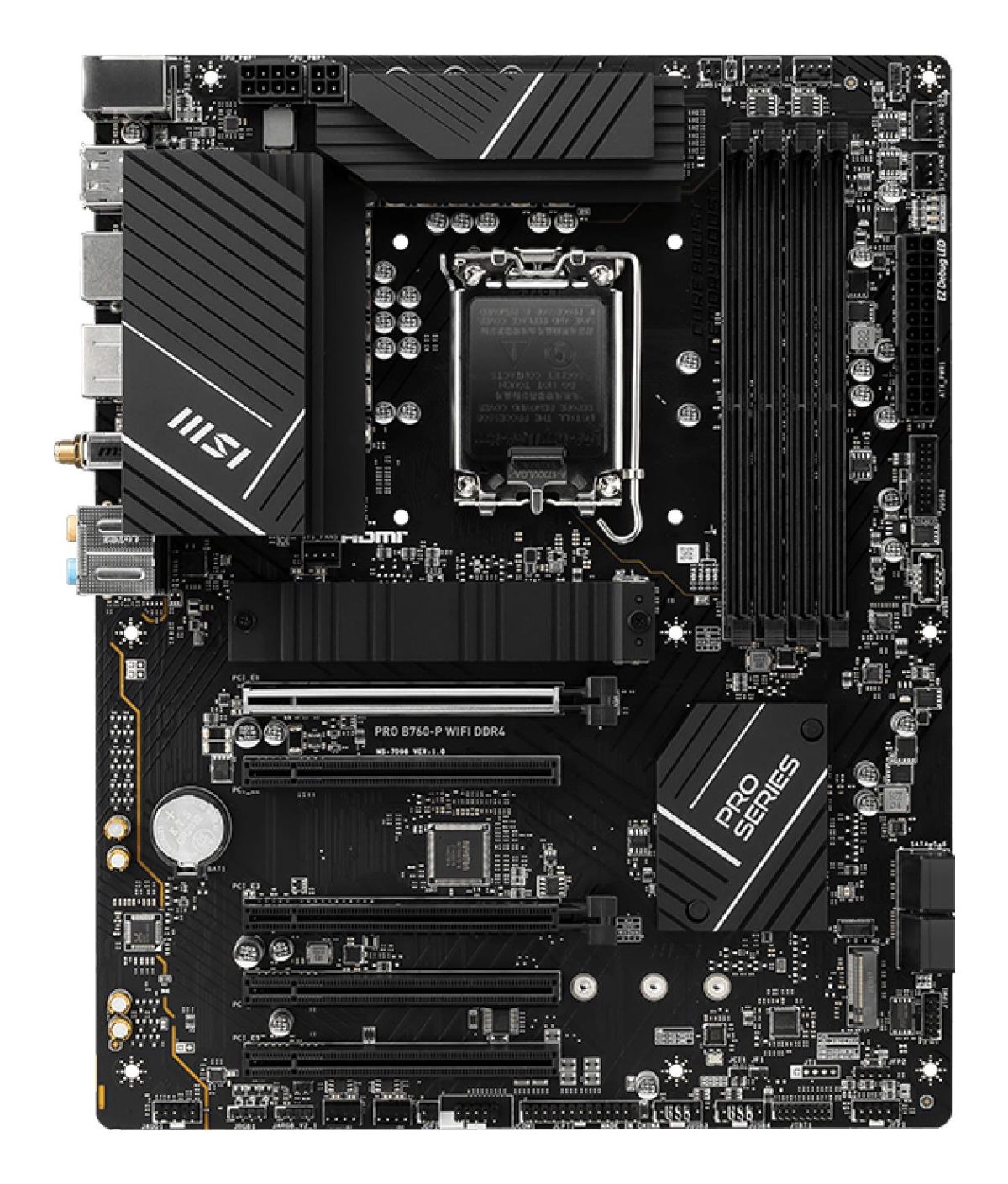

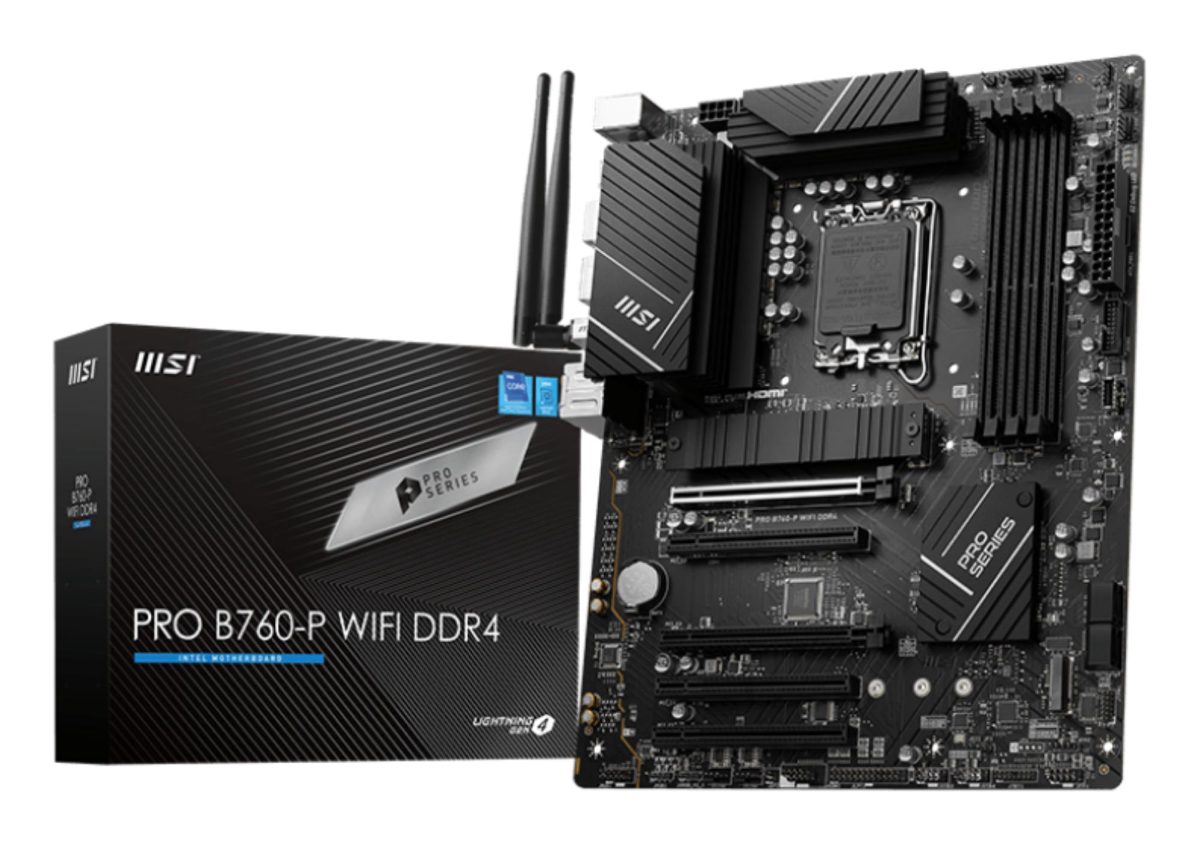

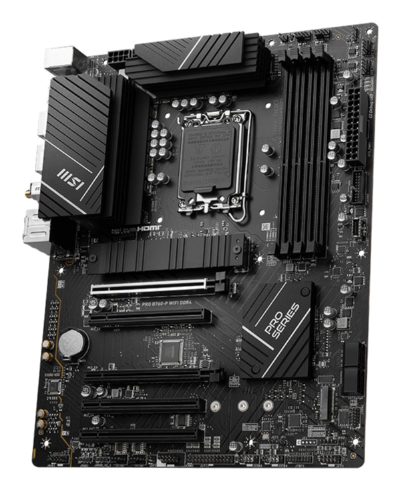

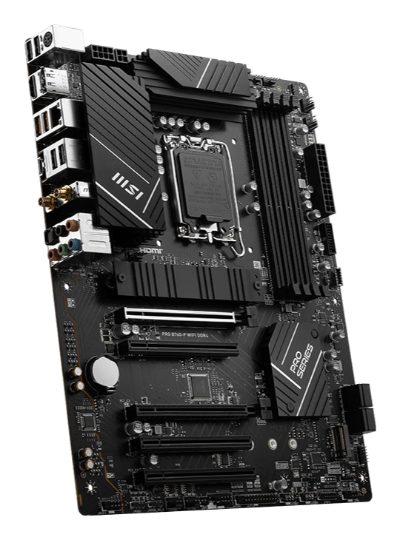

PRO B760-P WIFI DDR4, Processor family Intel, Processor socket LGA1700
PRO B760-P WIFI DDR4, Processor family Intel, Processor socket LGA1700, DDR4, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4
MSI · 4711377028363
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 36 mo.
- Invoice: with every order
- EAN
- 4711377028363
- Brand
- MSI
Description
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10G
Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Chipset family | Intel |
| Form factor | ATX |
| Power source | ATX |
| Colour | Black |
| Supported Windows operating systems | Windows 10/Windows 11 |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC compatibility | Non-ECC |
| Maximum memory | 128 GB |
| Memory channels | Dual-channel |
| Memory form factor | DIMM |
| Number of memory slots | 4 |
| Memory frequency (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz |
| Supported memory types | DDR4-SDRAM |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported drive interfaces | M.2,SATA III |
| Integrated graphics | No |
| ATX power connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| SATA connectors | 4 |
| RGB LED pin header | Yes |
| TPM header | Yes |
| Internal USB 2.0 connectors | 4 |
| Internal USB 3.2 Gen 1 connectors | 4 |
| USB 3.2 Gen 2 connectors | 1 |

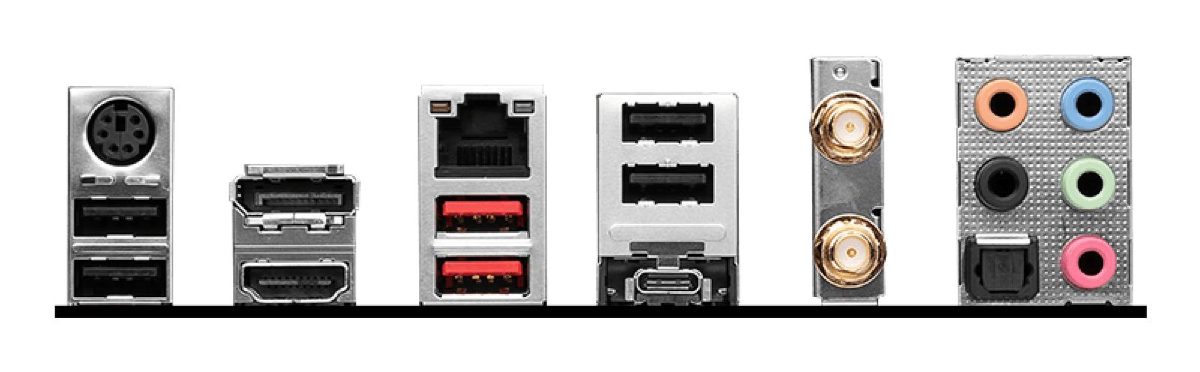

| DisplayPorts | 1 |
| Ethernet (RJ-45) ports | 1 |
| HDMI ports | 1 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-A ports | 2 |
| Bluetooth | Yes |
| Ethernet type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| M.2 slot count | 2 |
| PCI Express x16 slots | 5 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| SMBIOS version | 3.5 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Model | PRO B760-P WIFI DDR4 |
