NB ACC DOCKING STATION 7IN1/USB-C 100W CSV-1598 CLUB3D
CLUB3D · 8719214472528
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8719214472528
- Brand
- CLUB3D
Description

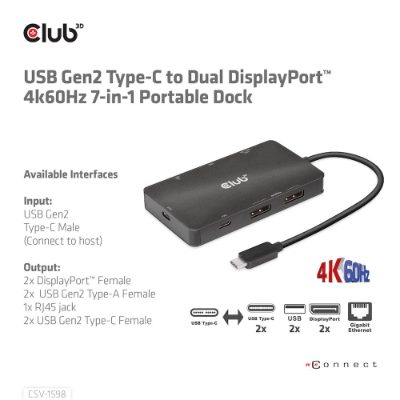

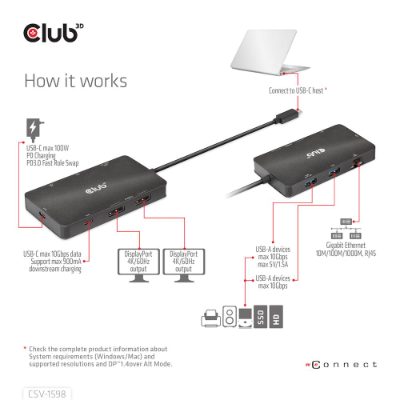

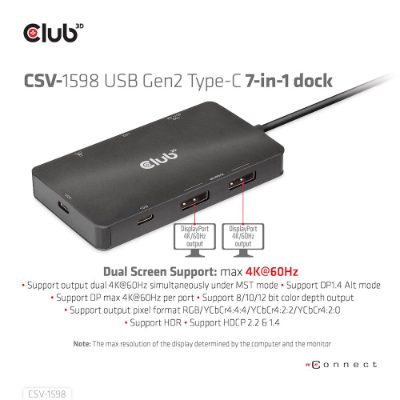

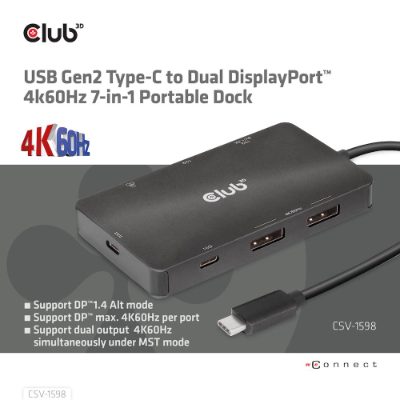

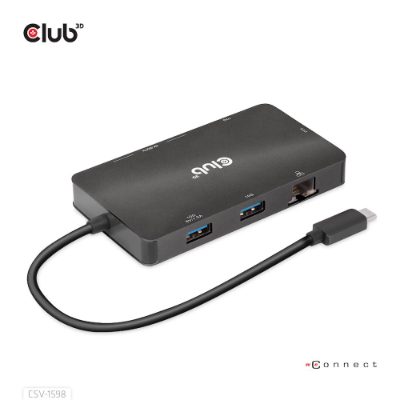

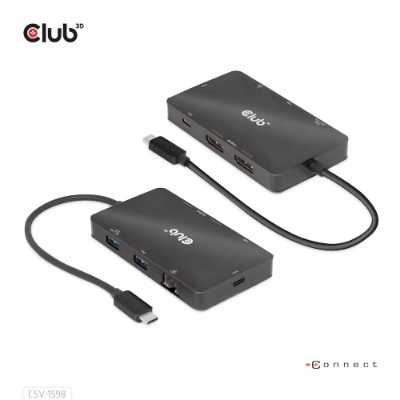

The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host.

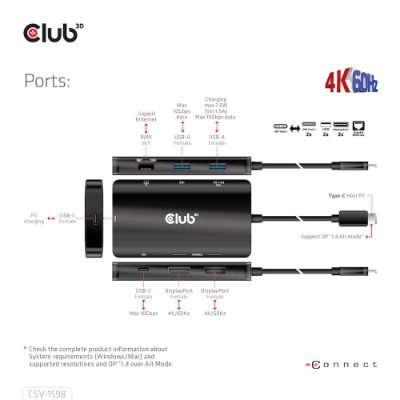

Specifications
| DC-in jack | No |
| DisplayPorts | 2 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-C ports | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery power | 100 W |
| USB-C DisplayPort Alternate Mode | Yes |
| Ethernet (RJ-45) ports | 1 |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Card reader | No |
| Certification | ROHS, FCC, CE EMI |
| HD type | 4K Ultra HD |
| HDR | Yes |
| Hub interfaces | DisplayPort/RJ-45/USB 3.2 Gen 2 (3.1 Gen 2) Type-A/USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Maximum refresh rate | 60 Hz |
| Supported displays | 2 |
| Plug and Play | Yes |
| Colour | Black |
| Output current | 1.5 A |
| Output voltage | 5 V |
| Power consumption (max) | 7.5 W |
| Wireless charging | No |
| macOS versions supported | Yes |
| Supported Windows operating systems | Yes |

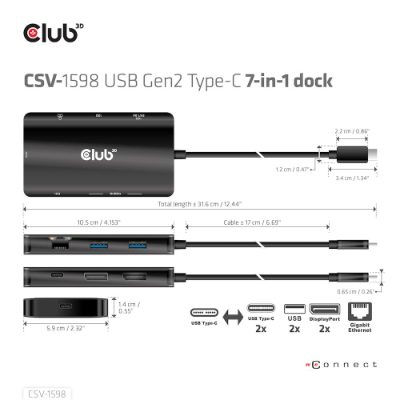

| Depth | 59 mm |
| Height | 14 mm |
| Weight | 102 g |
| Width | 105 mm |
| Cable length | 0.17 m |
| Cable type | Round cable |
| Model | CSV-1598 |
