NB ACC DOCKING STATION/USB CSV-3103D CLUB3D
CLUB3D · 8717249401070
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 8717249401070
- Brand
- CLUB3D
Description

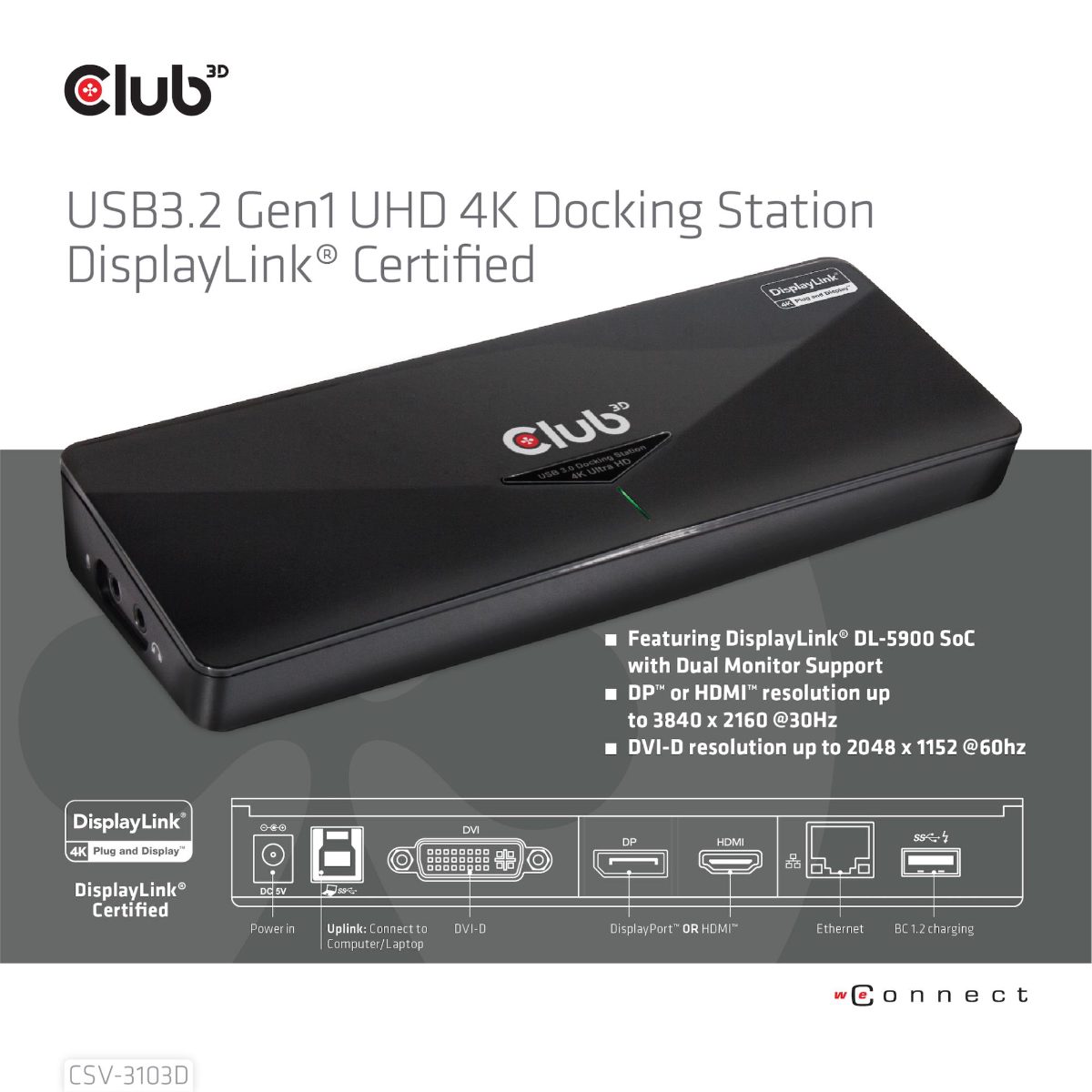

SenseVision USB 3.0 4K Docking Station
The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port.
Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes.
Functionality is also dependent on the functionality of the connected devices.

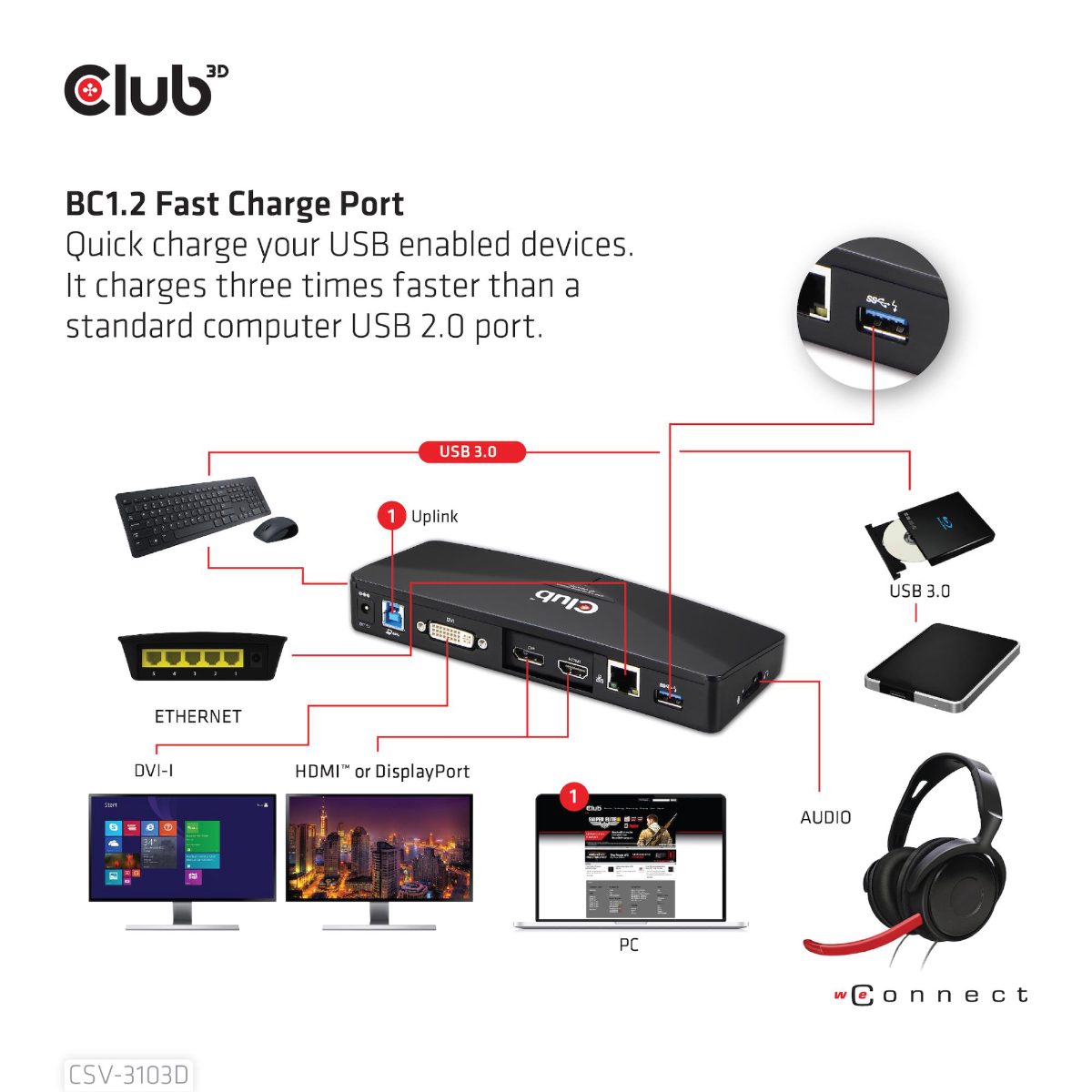

BC 1.2 charging
Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port.
Share
- Compatible with USB 3.0 specification
- Max supported resolution for single screen setup is: up to 3840 x 2160 @30Hz
- Max supported resolution for dual screen setup is: up to 2 x 1920 x 1200 @60Hz
- Support audio 2.1 channel
- Support Gigabit Ethernet
- Support BC1.2 charging (Back port x1)
Specifications
| Audio (L/R) out ports | 1 |
| Connection technology | Wired |
| DC-in jack | Yes |
| DisplayPorts | 1 |
| DVI ports | 1 |
| HDMI ports | 1 |
| HDMI version | 1.4a |
| Headphone connector | USB |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Line-out | Yes |
| Microphone input | Yes |
| USB 3.2 Gen 1 Type-A ports | 3 |
| Ethernet LAN | Yes |
| Ethernet (RJ-45) ports | 1 |
| Ethernet data rates | 10/100/1000 Mbit/s |
| Card reader | No |
| Certification | CE, RoHS, FCC |
| Charging function | Yes |
| Compatible with | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| LED indicators | Power |
| Maximum resolution | 2048 x 1152 pixels |
| Built-in optical drive | No |
| Plug and Play | Yes |
| Colour | Black |
| Reset button | No |
| Built-in speakers | No |
| Power source | AC |
| Supported Windows operating systems | Window/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 Pro/Windows 10 Pro x64/Windows 7 Ultimate x64/Windows 8.1/Windows 8.1 Enterprise/Windows 8.1 Enterprise x64 |

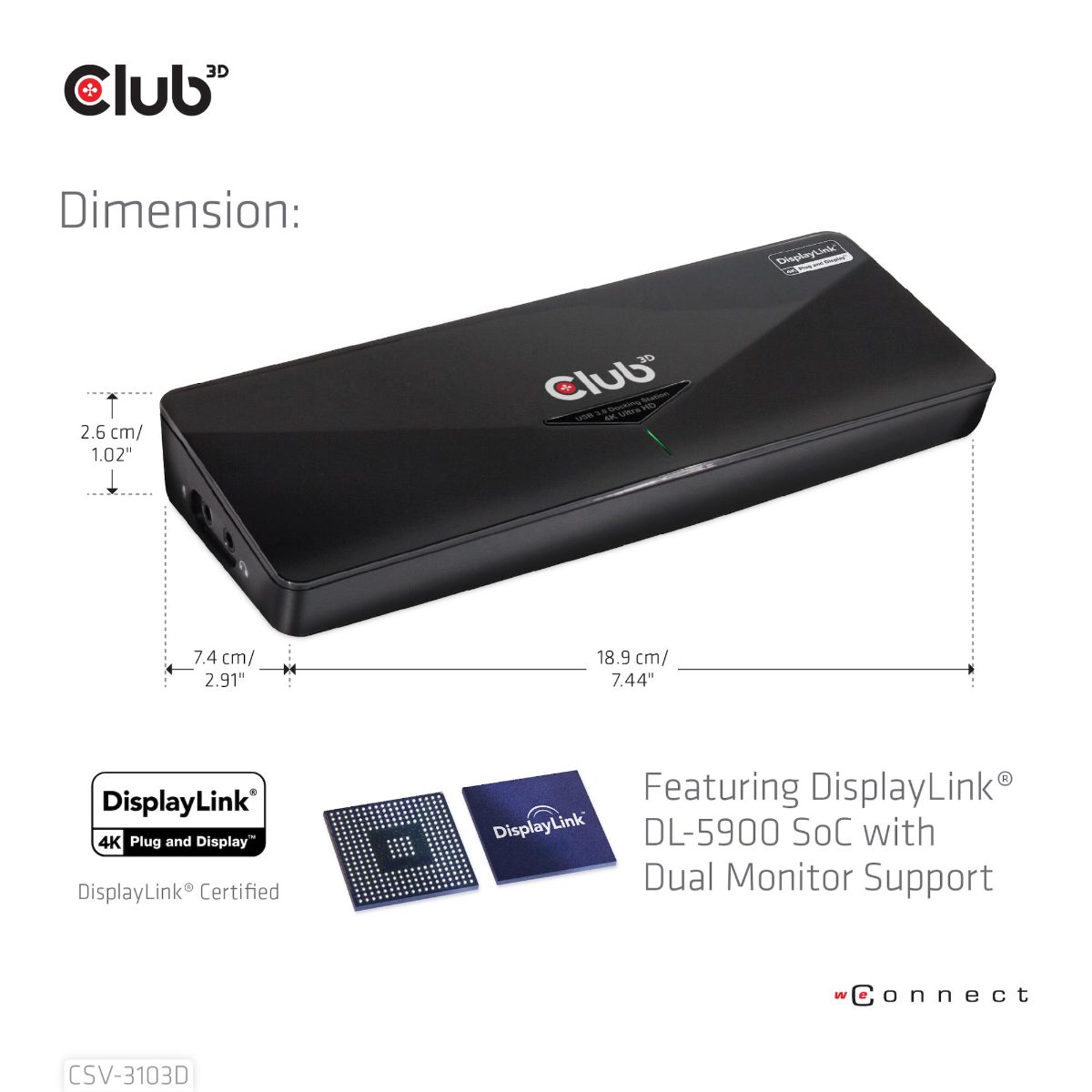

| Depth | 74.5 mm |
| Height | 26.3 mm |
| Weight | 200 g |
| Width | 189 mm |
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide included | Yes |
| Manual included | Yes |
| Certificates | RoHS |
| Microphone inputs | 1 |
| Model | CSV-3103D |
