NET CAMERA M5526-E 4MP PTZ/DOME 02768-001 AXIS
AXIS · 7331021083387
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021083387
- Brand
- AXIS
Description

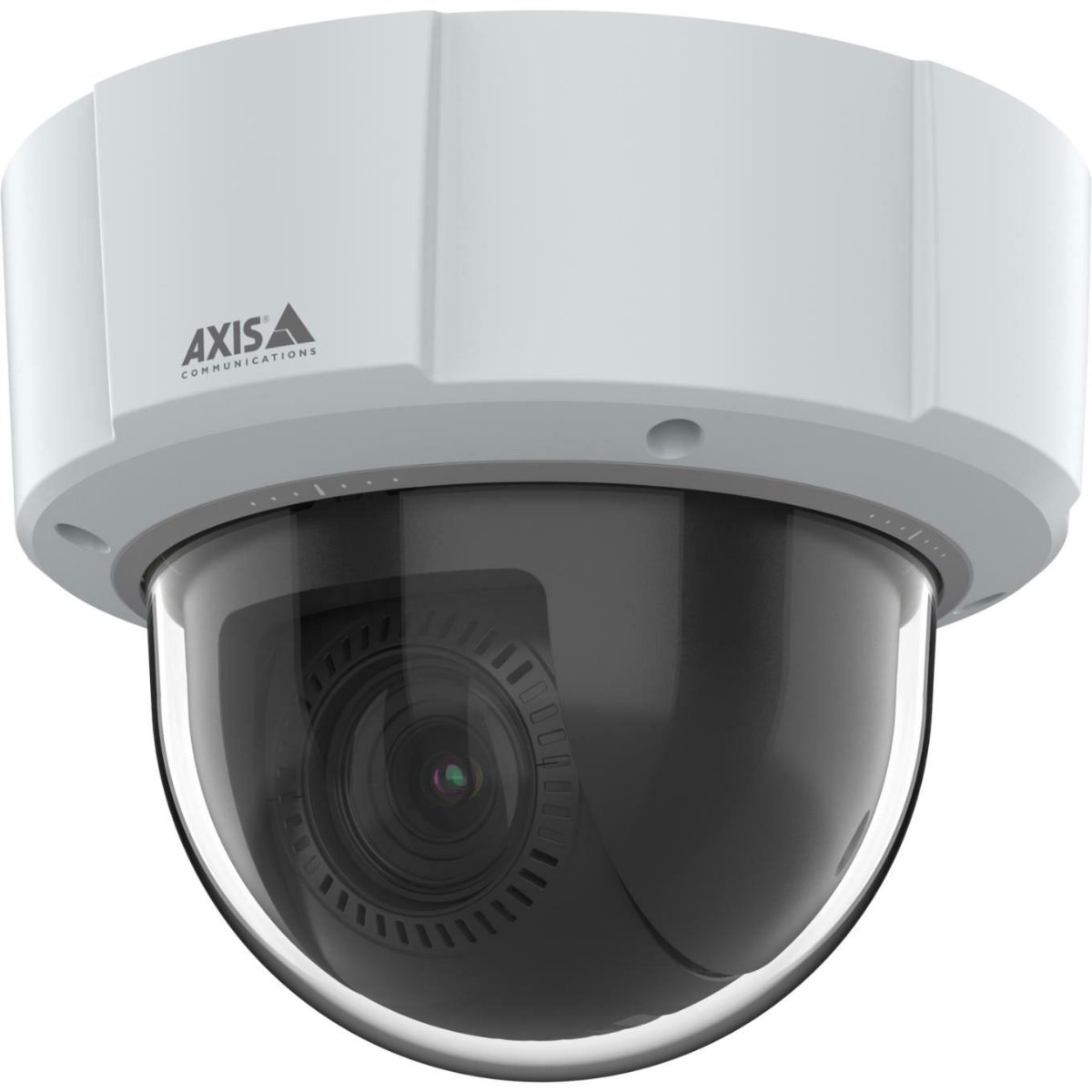

AXIS M5526-E PTZ Camera
Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.
Don’t miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there’s both dark and light areas in the scene.
Flexible installations—indoors and out
AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.
Enjoy more for less
This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
- 4 MP and 10x optical zoom
- Continuous 360° pan
- Support for analytics with deep learning
- Compact design
- 24V with audio and I/O connectivity
Specifications
| Form factor | Dome |
| Material | Plastic/Polycarbonate (PC) |
| IK impact rating | IK09 |
| IP rating | IP66 |
| Mounting type | Ceiling |
| Colour | Black/White |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Camera pan control | Yes |
| Camera pixel size | 1.998 µm |
| Shutter speed | 1/27000 - 0.2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 59.1 - 6.5 ° |
| Lens viewing angle, vertical | 35 - 3.67 ° |
| Minimum illumination | 0.01 lx |
| Pan range | 0 - 360 ° |
| Pan speed | 150 °/sec |
| Tilt angle range | 0 - 90 ° |
| Tilt speed | 150 °/sec |
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Sensor type | CMOS |
| Autofocus | Yes |
| Detect distance, tele | 938 m |
| Detect distance (wide) | 96 m |
| Digital zoom | 12 x |
| Focal length range | 4.7 - 47 mm |
| Identify distance, tele | 93 m |
| Identify distance, wide | 10 m |
| Maximum aperture | 3 |
| Minimum aperture | 1.6 |
| Number of lenses | 1 |
| Observe distance, tele | 373 m |
| Observe distance (wide) | 38 m |
| Optical zoom | 10 x |
| Recognize distance, tele | 186 m |
| Recognize distance (wide) | 19 m |
| Zoom capability | Yes |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Supported resolutions | 160 x 120/1600 x 1200 (UXGA)/320 x 180 |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Supported video formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Audio detection | Yes |
| Supported audio formats | AAC-LC/G.711/LPCM/PCM |
| Audio system | 2-way |
| Full duplex audio system | Yes |
| Supported sample rates | 48 kHz |
| Signal-to-noise ratio (SNR) | 55 dB |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Storage capacity | 1024 MB |
| DC-in jack | Yes |
| Ethernet (RJ-45) ports | 1 |
| Microphone input | Yes |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent video surveillance features | Face detection/Human detection/Line crossing detection/Moving object/Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | 802.1x RADIUS/EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS |
| Motion detection | Yes |
| Power consumption (typical) | 3.8 mA |
| Power consumption (max) | 11.7 W |
| Power consumption (PoE) | 12.95 W |
| Power source | PoE |
| Operating humidity | 15 - 100 % |
| Operating temperature | -20 - 50 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 165 mm |
| Height | 150 mm |
| Weight | 1000 g |
| Width | 165 mm |
| Certificates | REACH/RoHS |
| License plate recognition | Yes |
| Manual included | Yes |
| Number of cameras | 1 |
| Free from | PVC/BFR |
| Model | 02768-001 |
