NET CAMERA P5654-E MK II PTZ/02914-001 AXIS
AXIS · 7331021086258
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021086258
- Brand
- AXIS
Description

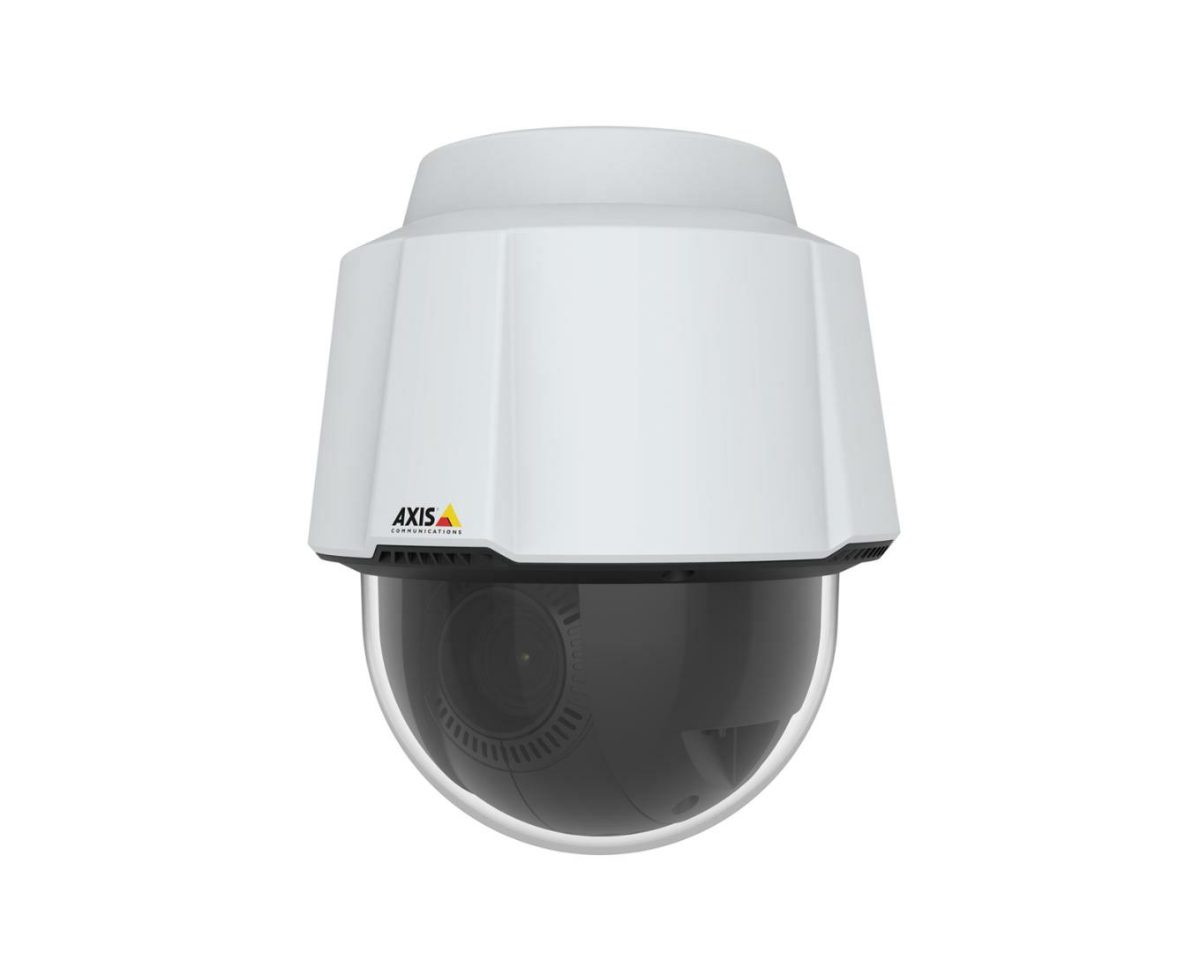

AXIS P5654-E Mk II PTZ Camera
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).
- HDTV 1080p with 21x optical zoom
- Wide 77° field of view
- Lightfinder 2.0 and Forensic WDR
- Support for advanced analytics
- Axis Edge Vault safeguards the device
Specifications
| Form factor | Dome |
| Material | Aluminium/Polycarbonate (PC) |
| IK impact rating | IK10 |
| IP rating | IP66 |
| Mounting type | Ceiling |
| Colour | Black/White |
| Auto-tracking | Yes |
| Certification | UL/cUL, UKCA, CE, KC, EAC, RCM, TAA |
| Connection technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Camera pan control | Yes |
| Shutter speed | 1/66500 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 77 - 3.6 ° |
| Lens viewing angle, vertical | 43.1 - 2 ° |
| Minimum illumination | 0.01 lx |
| Pan range | 0 - 360 ° |
| Pan speed | 350 °/sec |
| Tilt angle range | 0 - 180 ° |
| Tilt speed | 350 °/sec |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
| Autofocus | Yes |
| Detect distance, tele | 1120 m |
| Detect distance (wide) | 57 m |
| Digital zoom | 12 x |
| Focal length range | 4 - 84.6 mm |
| Identify distance, tele | 110 m |
| Identify distance, wide | 6 m |
| Maximum aperture | 4.5 |
| Minimum aperture | 1.6 |
| Number of lenses | 1 |
| Observe distance, tele | 450 m |
| Observe distance (wide) | 23 m |
| Optical zoom | 21 x |
| Recognize distance, tele | 225 m |
| Recognize distance (wide) | 11 m |
| Zoom capability | Yes |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Image stabilisation | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 320 x 180 |
| Supported video modes | 1080p |
| Text caption overlay | Yes |
| Supported video formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Ethernet type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) | Yes |
| Streaming method | Multicast |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Memory capacity | 1024 MB |
| Storage capacity | 1024 MB |
| Ethernet (RJ-45) ports | 1 |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent video surveillance features | Crossing line/Face detection/Human detection/Moving object/Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | EAP-TLS/HTTPS/TLS |
| Motion detection | Yes |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 8 W |
| Power source | PoE |
| Operating humidity | 10 - 100 % |
| Operating temperature | -30 - 50 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Depth | 188 mm |
| Height | 217 mm |
| Weight | 2500 g |
| Width | 188 mm |
| Certificates | REACH/RoHS |
| License plate recognition | Yes |
| Mounting kit included | Yes |
| Number of cameras | 1 |
| Free from | PVC |
| Model | P5654-E Mk II |
