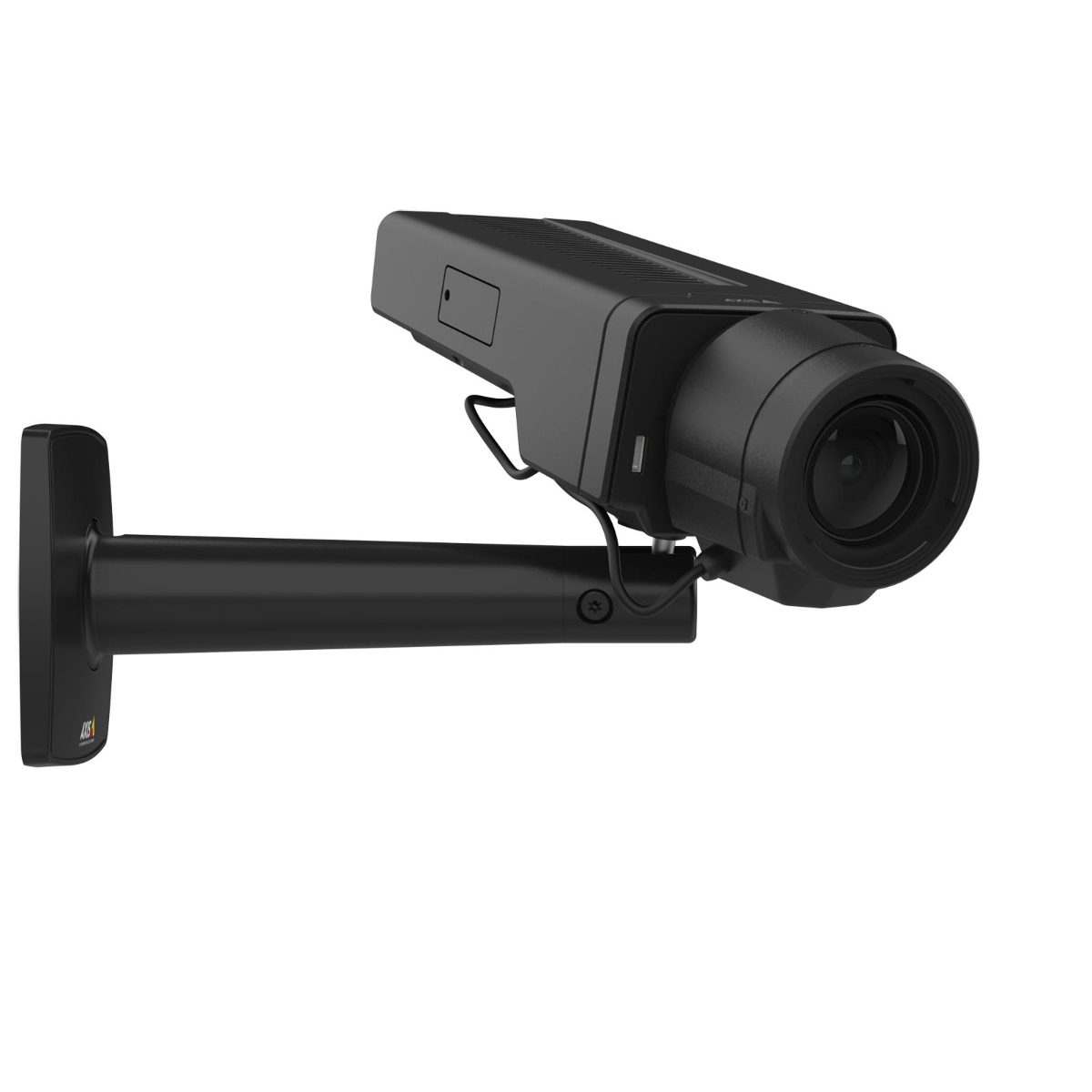

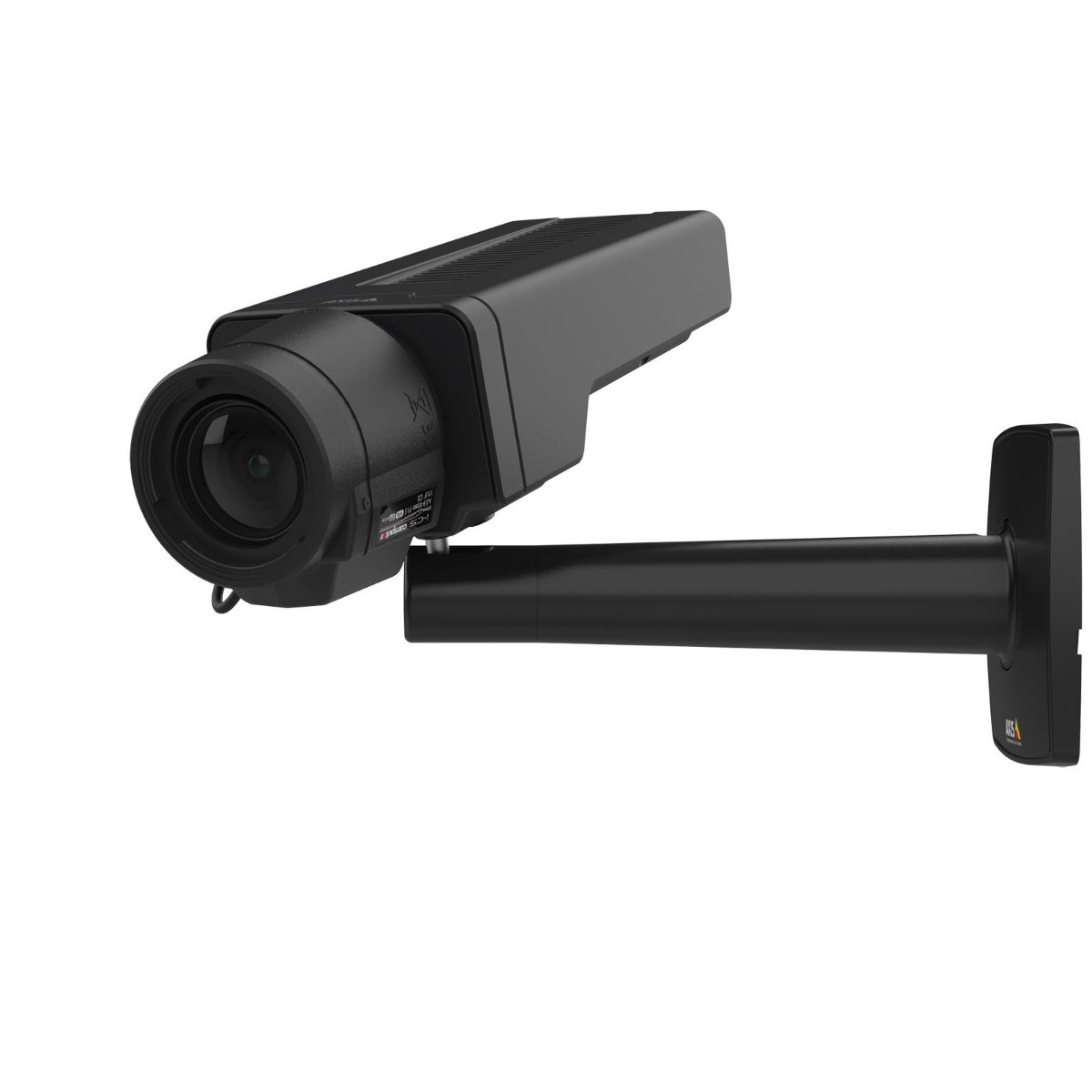

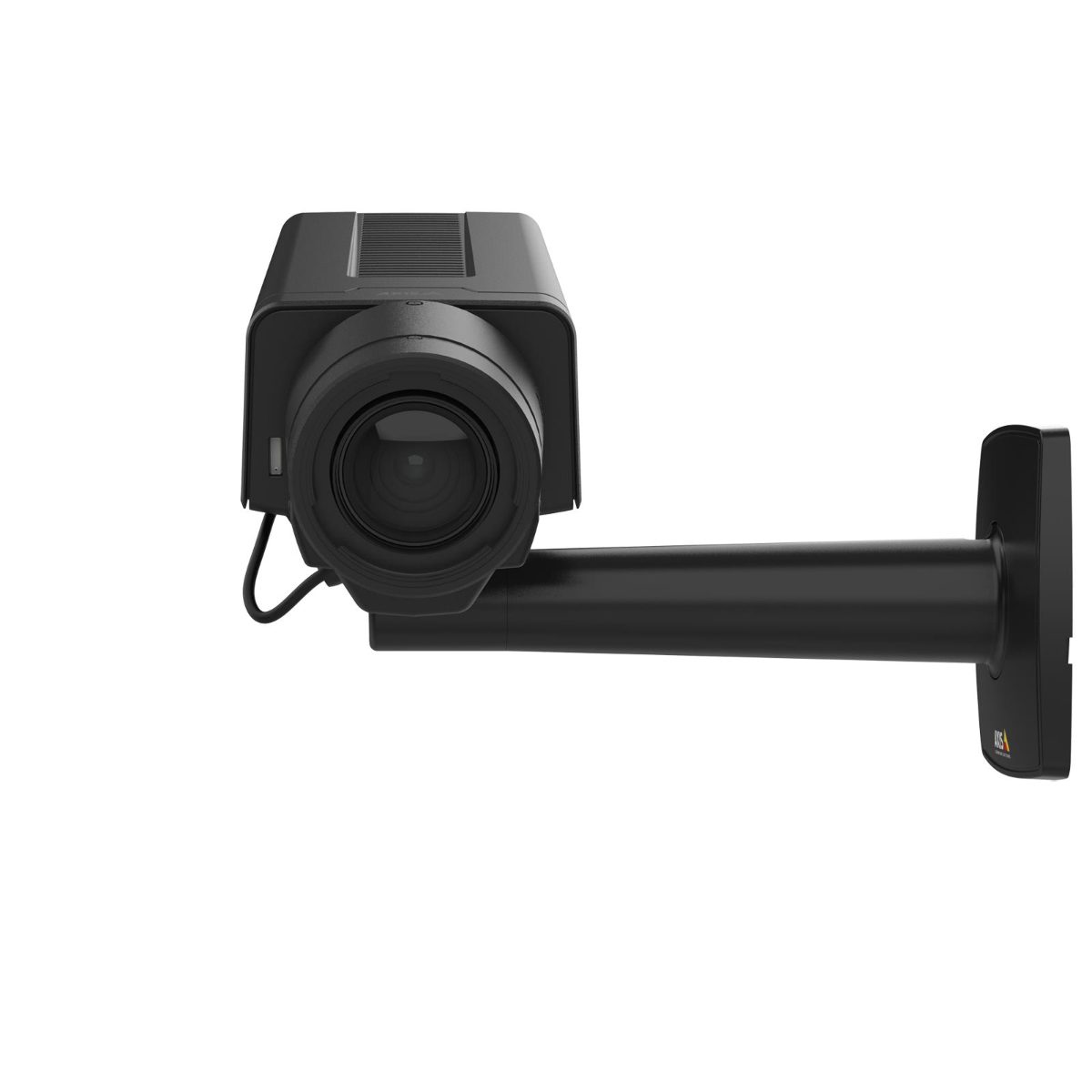

NET CAMERA Q1656 4MP BOX/02164-001 AXIS
AXIS · 7331021073944
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021073944
- Brand
- AXIS
Description
With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656 delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And AXIS Object Analytics offers highly nuanced object classification. This high-performance box camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, built-in cybersecurity features, such as Axis Edge Vault, signed firmware and secure boot, and FIPS-certified TPM, prevent unauthorized access and safeguard your system.
- Built-in cybersecurity features; Exceptional images with 1/1.8” sensor; Premium Axis Q-line camera functionality; Remote zoom and focus; Support for analytics with deep learning
Specifications
| Fog proof | Yes |
| Form factor | Dome |
| Material | Aluminium |
| Mounting type | Ceiling/wall |
| Colour | Black |
| Certification | EMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A I |
| Connection technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Language count | 12 |
| Placement | Indoor |
| PTZ modes | Digital PTZ |
| Remote viewing | Yes |
| Product type | IP security camera |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Shutter speed | 1/47500 - 1 s |
| Lens viewing angle, horizontal | 120 ° |
| Lens viewing angle, vertical | 63 ° |
| Minimum illumination | 0.01 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Autofocus | Yes |
| Closest focusing distance | 0.5 m |
| Focal length range | 3.9 - 10 mm |
| Maximum aperture | 1.5 |
| Number of lenses | 1 |
| Optical zoom | 2.5 x |
| Zoom capability | Yes |
| Gain control type | Auto |
| Image stabilisation | Yes |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Supported resolutions | 160 x 90/2688 x 1512 |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Supported video formats | H.264/H.265/M-JPEG |
| Video analytics | Yes |
| Video streaming | Yes |
| Audio detection | Yes |
| Supported audio formats | ADPCM/LC-AAC/LPCM/PCM |
| Audio system | 2-way |
| Full duplex audio system | Yes |
| Built-in microphone | Yes |
| Voice codecs | G.711/G.726/OPUS |
| Ethernet type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Quality of Service (QoS) | Yes |
| SIM card slot | No |
| Network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader | Yes |
| Supported memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8194 MB |
| Memory capacity | 2048 MB |
| Ethernet (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone input | Yes |
| RS-422 ports | 2 |
| RS-485 count | 2 |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Password protection | Yes |
| Security algorithms | EAP-TLS/FIPS 140-2/HTTPS |
| Motion detection | Yes |
| Behavior analysis | Line crossing detection |
| Remotely operated | Yes |
| Output voltage | 10,28 |
| Power consumption (max) | 7.7 W |
| Power consumption (PoE) | 5.1 W |
| Power consumption (typical) | 4.6 W |
| Power source | DC,PoE |
| Operating humidity | 10 - 85 % |
| Operating temperature | -20 - 60 °C |
| Non-operating relative humidity | 5 - 95 % |
| Storage temperature | -40 - 65 °C |
| Supported Windows operating systems | Yes |
| Depth | 214 mm |
| Height | 68 mm |
| Weight | 790 g |
| Width | 80 mm |
| Number of cameras | 1 |
| Free from | BFR/PVC |
