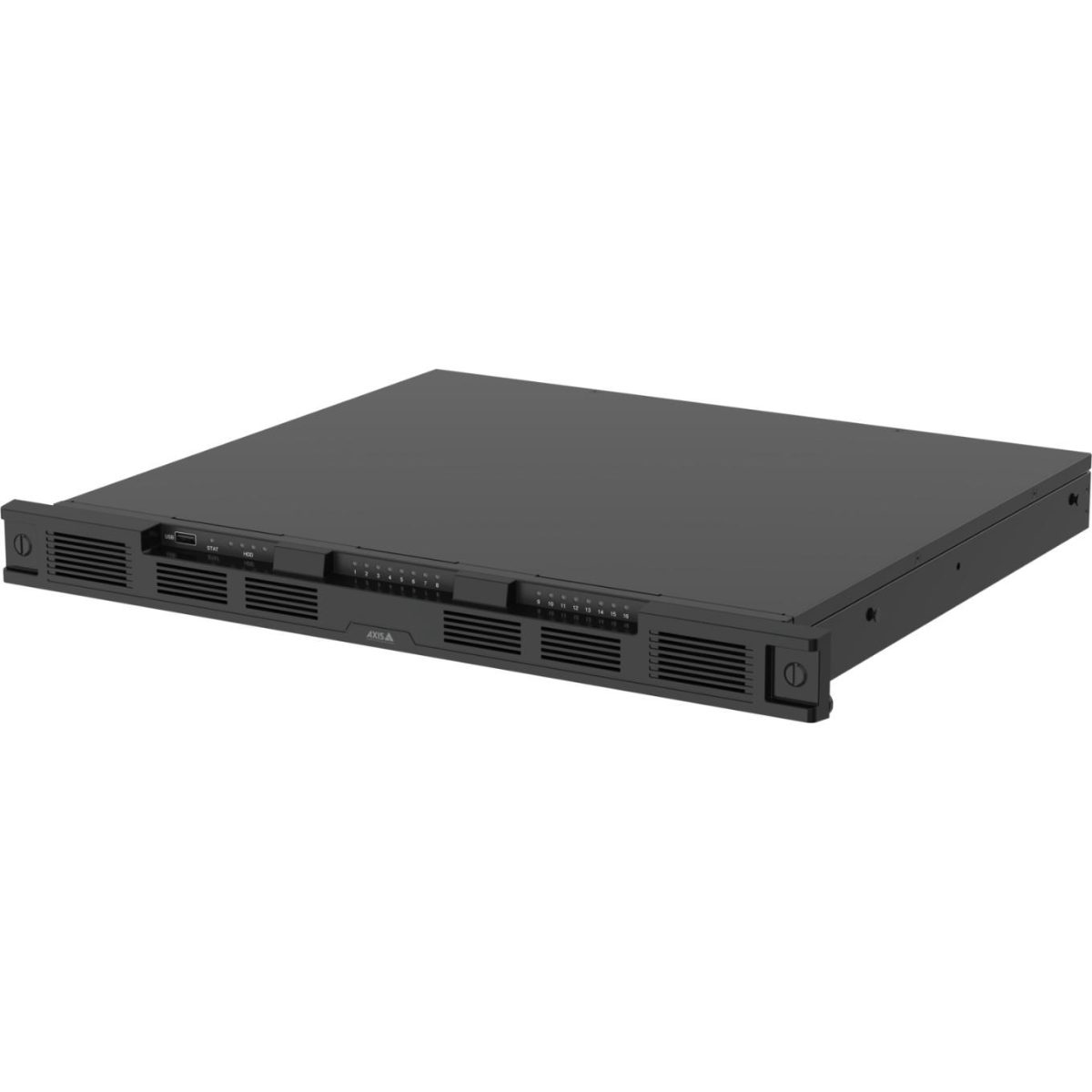

NET VIDEO RECORDER S3016/8TB 02527-002 AXIS
AXIS · 7331021078970
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 7331021078970
- Brand
- AXIS
Description
Reliable with RAID and secure with TPM
AXIS S3016 provides reliable recording thanks to the four surveillance-grade hard drives and different RAID levels. This high-performance recorder offers a gigabit switch for connecting network devices and a 2.5 gigabit uplink for video recordings in ultra-high definition. Thanks to the Trusted Platform Module 2.0, the recordings are encrypted, and you can be sure your data is protected. You can access your footage from anywhere using Axis Secure Remote Access, to fulfil high cybersecurity requirements.
Unbeatable Axis quality for the wide Axis portfolio
AXIS S3016 is extensively tested with our wide range of quality products to provide you with an affordable, end-to-end solution with unbeatable reliability. For instance, it’s possible to utilize network speakers to communicate with staff and deter intruders or network video door stations for audiovisual identification and remote entry control. All hardware components, including the PoE switch and surveillance-grade hard drives, are validated to meet the demands for reliable ultra-high definition surveillance. This easy-to-install solution provides you with everything you need to help ensure every installation is trouble-free.
Easy to use surveillance solution with AXIS Companion
AXIS S3016 together with AXIS Companion VMS connects and power up to sixteen devices and can be up and running with just a few clicks. AXIS Companion is an easy to use video management software. It offers video management and integrates with Axis cameras, intercoms and audio products. The solution can easily be scaled up from providing surveillance for a single site, to provide surveillance for multiple sites and whole national chains.
Easy to expand or scale your AXIS Camera Station system
A solution with AXIS S3016 is easily adapted to your business, and seamlessly expands as your needs grow. You can add additional recorders and other Axis devices to your existing AXIS Camera Station installation in a cost-efficient way. AXIS S3016 adds network ports, PoE and storage to your system without increasing load or maintenance on the server, while preserving the desired retention time. It can also scale multi-site AXIS Camera Station systems in a distributed storage setup without affecting other equipment and keeping the central management point for easy maintenance and
- 1U rack recorder with 16-port PoE switch
- Up to PoE class 4 per port
- Easy to install and operate
- Flexible storage options including RAID
Specifications
| Supported audio formats | AAC |
| Supported video formats | AVC/H.264/H.265/HEVC/MPEG4 |
| Video input channels | 16 channels |
| HDD capacity | 2000 GB |
| Maximum storage capacity | 8 TB |
| HDD count | 4 |
| Supported HDDs | 4 |
| RAID levels | 0/1/10/5/6 |
| RAID support | Yes |
| Storage capacity | 8000 GB |
| Ethernet (RJ-45) ports | 18 |
| Fiber ports | 1 |
| Networking standards | IEEE 802.3at |
| Power over Ethernet | Yes |
| PoE port count | 16 |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP , DNS/DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCPv4/v6, ARP, SSH, LLDP, IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| USB 2.0 ports | 1 |
| USB 3.2 Gen 1 Type-A ports | 1 |
| Compatible brands | Axis |
| Certification | UL/cUL, CE, VCCI, NOM, RCM, TAA, 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1, IEC/EN/U |
| LED indicators | Yes |
| Colour | Black |
| Rack capacity | 1U |
| Rack mountable | Yes |
| Built-in processor | Yes |
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Power consumption (max) | 31 W |
| Power consumption (typical) | 37 W |
| Total PoE budget | 305 W |
| Operating humidity | 10 - 85 % |
| Operating temperature | 0 - 45 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -20 - 65 °C |
| Certificates | REACH/RoHS |
| Free from | PVC |
| Depth | 402 mm |
| Height | 44.1 mm |
| Weight | 10240 g |
| Width | 484 mm |
| Cables included | AC |
| Quick start guide included | Yes |
| Model | S3016 |
| Model name | S3016 |
