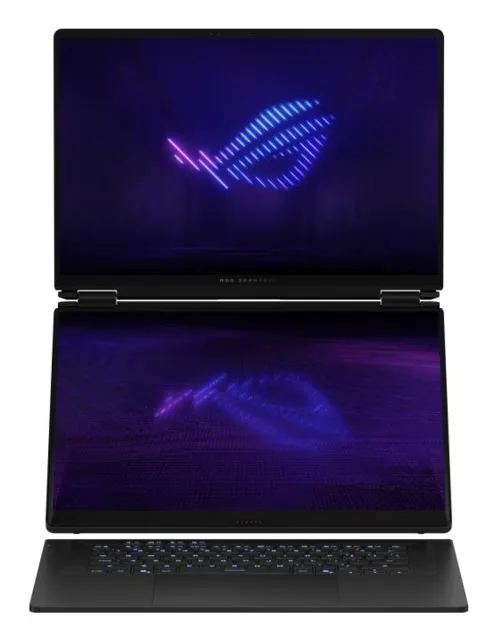

Notebook|ASUS|GX651AX-SR005X|ROG Zephyrus|GX651AX-SR005X|CPU Intel Core Ultra 9|386H|16 "|2880 x 1800 pixels|Yes|RAM 64 GB|LPDDR5x-SDRAM|SSD 2000 GB|Discrete graphics NVIDIA GeForce RTX 5090|24 GB|On-board graphics Yes|OS installed Windows 11 Pro|Colour Grey|Weight 2.82 kg|8533 MHz|90NR0NT2-M00080

About this product

DUO IT ALL
Flagship power
Harness the raw power of up to an NVIDIA® GeForce RTX™ 5090 Laptop GPU with a max TGP of 150W. This flagship GPU offers the latest gaming and AI features, including DLSS 4, 4th Gen ray-tracing cores, and up to 1824 TOPS of NPU compute for local AI applications, no cloud connection required. With a max TGP of 150W, you can pump up resolution, texture, and fidelity in all of the latest games.

Windows 11 Pro 64-bit
Intel Core Ultra 9 386H (18MB Cache)
16" WQXGA+ 2880 x 1800 OLED Touch, NVIDIA GeForce RTX 5090 (24GB GDDR7)
64GB (8533MHz) LPDDR5x-SDRAM & 2000GB SSD

Specifications

Unit Calculated Weight: 6.95 kg
Unit Calculated Volume: 0.0231746 cubm
Units per Shipping Box: 1
Additional model naming: GX651AX-SR005X
Summary: ASUS ROG Zephyrus Duo GX651AX-SR005X. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 40.6 cm (16"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey
Vendor Homepage: https://rog.asus.com/laptops/rog-zephyrus/rog-zephyrus-duo-2026/
Category Code: NB
Unit Box Height: 0.365
Unit Box Length: 0.572
Unit Box Width: 0.111
Model name: GX651AX-SR005X
NB Family name: ROG Zephyrus

Processor

Efficient cores: 8
Efficient-core base frequency: 1.6 GHz
Efficient-core Max Turbo Frequency: 3.9 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Low Power Efficient-cores: 4
Maximum turbo power: 80 W
Performance cores: 4
Performance-core base frequency: 2.1 GHz
Performance-core Max Turbo Frequency: 4.9 GHz
Processor base power: 25 W
Processor boost frequency: 4.9 GHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor cores: 16
Processor family: Intel Core Ultra 9
Processor generation: Intel® Core™ Ultra (Series 3)
Processor manufacturer: Intel
Processor model: 386H
Processor threads: 16

Display

Anti-glare screen: Yes
Colour gamut: 100 %
Contrast ratio (typical): 1000000:1
Display diagonal: 16 "
Display resolution: 2880 x 1800 pixels
Display response rise/fall: 0.2 ms
HD type: WQXGA+
High Dynamic Range (HDR) supported: Yes
Maximum display brightness (HDR): 1100 cd/m²
Maximum refresh rate: 120 Hz
Native aspect ratio: 16:10
Panel type: OLED
RGB colour space: DCI-P3
Touchscreen: Yes

Design

Colour name: Stellar Grey
Form factor: Convertible (Detachable)
Introduction year: 2026
Market positioning: Gaming
Product colour: Grey
Product type: Hybrid (2-in-1)

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 50 TOPs
Sparsity support: Yes
Windows Studio effects support: Yes

Memory

Internal memory: 64 GB
Internal memory type: LPDDR5x-SDRAM
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Memory clock speed: 8533 MHz
Memory form factor: On-board

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Number of SSDs installed: 1
NVMe: Yes
Optical drive type: No
SSD capacity: 2000 GB
SSD form factor: M.2
SSD interface: PCI Express 5.0
Storage media: SSD
Total SSDs capacity: 2000 GB
Total storage capacity: 2000 GB

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card: Yes
Discrete graphics card memory: 24 GB
Discrete graphics card model: NVIDIA GeForce RTX 5090
Discrete graphics memory type: GDDR7
NVIDIA G-SYNC: Yes
On-board GPU manufacturer: Intel
On-board graphics card: Yes
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Total Graphics Power (TGP): 150 W

Audio

Audio system: Smart Amp
Built-in microphone: Yes
Number of built-in speakers: 6

Camera

Front camera: Yes
Front camera HD type: Full HD
Front camera resolution: 1920 x 1080 pixels
Infrared (IR) camera: Yes

Network

Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 6.0
Mobile network connection: No
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)

Ports & interfaces

Combo headphone/mic port: Yes
HDMI ports quantity: 1
HDMI version: 2.1
Intel® Thunderbolt 4: Yes
Thunderbolt 4 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB Type-C DisplayPort Alternate Mode: Yes

Keyboard

Copilot key: Yes
Keyboard backlit: Yes
Keyboard backlit colour: RGB
Keyboard backlit zone: 1-zone RGB
Numeric keypad: No
Pointing device: Touchpad

Software

Bundled software: Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) Xbox Game Pass for PC_3 month
Microsoft Copilot: Yes
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: 1-month trial for new Microsoft 365 customers

Battery

Battery capacity: 90 Wh
Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4

Power

AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 12.5 A
AC adapter output voltage: 20 V
AC adapter power: 250 W
USB Power Delivery (USB PD): Yes
USB Type-C charging port: Yes

Security

Face recognition: Yes
Password protection: Yes
Password protection type: BIOS/User
Trusted Platform Module (TPM): Yes
Windows Hello: Yes

Weight & dimensions

Depth: 247 mm
Height (front): 19.9 mm
Height (rear): 24.9 mm
Weight: 2820 g
Width: 355 mm

Packaging content

AC adapter included: Yes
Stylus pen: Yes

Identifiers

Brand: ASUS
Categories: Laptops
Model: 90NR0NT2-M00080
EAN: 199291504660
