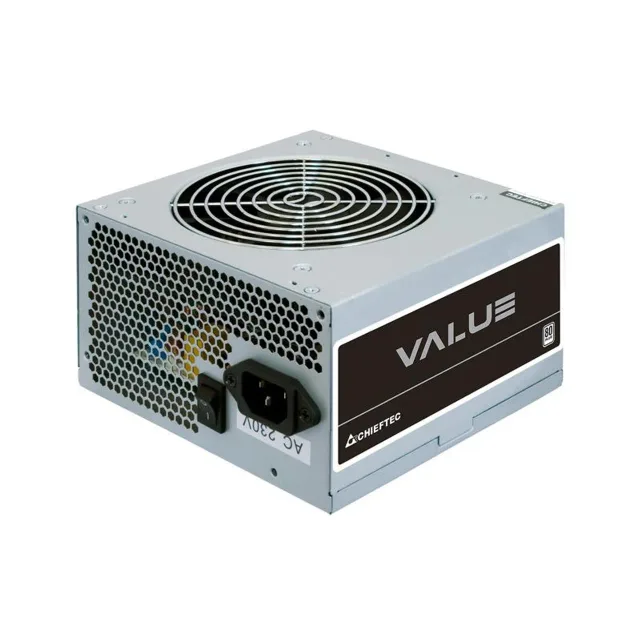

Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8

About this product

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

80PLUS 230V EU

Specifications

Unit Calculated Weight: 1.28 kg
Unit Calculated Volume: 0.004825 cubm
Units per Shipping Box: 10
Units per Pallet: 0
Summary: Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: 80PLUS 230V EU
Vendor Homepage: https://www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
Category Code: PSU
Unit Box Height: 0.16
Unit Box Length: 0.18
Unit Box Width: 0.09

Power

AC input frequency: 47 - 63 Hz
AC input voltage: 200 - 240 V
Combined power (+12V): 360 W
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 3.6 W
Input current: 3 A
Max output current (+12V): 30 A
Max output current (+3.3V): 17 A
Max output current (+5V): 16 A
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power protection features: Over voltage/Overload/Short circuit/Under voltage
Total power: 400 W

Ports & interfaces

Cabling type: Non-Modular
CPU power cable length: 350 mm
CPU power connector (4+4 pin): Yes
EPS power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Floppy drive power connector: 1
Motherboard power cable length: 350 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
PCI Express power cable length: 350 mm
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power cable length: 150/350 mm
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 150/350 mm

Performance

80 PLUS certification: 80 PLUS
ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
Purpose: PC/Server

Design

Fan diameter: 120 mm
Number of fans: 1 fan(s)
Product colour: Silver

Certificates

Certification: 80PLUS 230V EU

Weight & dimensions

Depth: 150 mm
Height: 87 mm
Width: 140 mm

Logistics data

Harmonized System (HS) code: 84733020

Identifiers

Brand: CHIEFTEC
Model: APB-400B8
EAN: 4710713230552
