CHIEFTEC

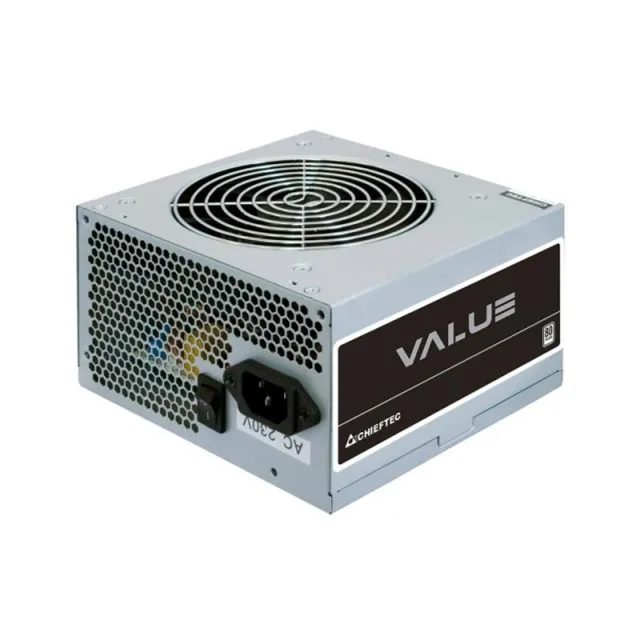

Power Supply|CHIEFTEC|600 Watts|Efficiency 80 PLUS|PFC Active|APB-600B8
About this product
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Specifications
- Unit Calculated Weight
- 1.58 kg
- Unit Calculated Volume
- 0.004455 cubm
- Units per Shipping Box
- 10
- Units per Pallet
- 0
- Summary
- Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
- Vendor Homepage
- https://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8
- Category Code
- PSU
- Unit Box Height
- 0.09
- Unit Box Length
- 0.22
- Unit Box Width
- 0.15
Power
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 552 W
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Max output current (+12V1)
- 46 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Maximum input current (@220V)
- 4.5 A
- Peak power
- 600 W
- Total power
- 600 W
Ports & interfaces
- Cabling type
- Non-Modular
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- No
- Floppy disk drive cable length
- 150 mm
- Floppy disk drive connector
- Yes
- Motherboard power cable length
- 550 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 4
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power cable length
- 150/500 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- SATA power cable length
- 150/500 mm
Performance
- 80 PLUS certification
- 80 PLUS
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Steel
Certificates
- Compliance certificates
- CE/RoHS
Weight & dimensions
- Depth
- 140 mm
- Height
- 87 mm
- Weight
- 1420 g
- Width
- 150 mm
Packaging data
- Package weight
- 1560 g
Logistics data
- Harmonized System (HS) code
- 84733020
Identifiers
- Brand
- CHIEFTEC
- Model
- APB-600B8
- EAN
- 753263077813
