CHIEFTEC

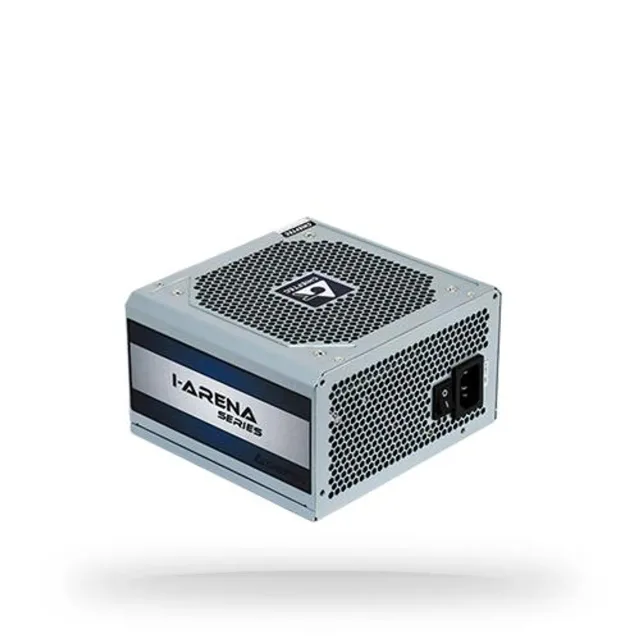

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|GPE-700S
About this product
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
Specifications
- Unit Calculated Weight
- 2.06 kg
- Unit Calculated Volume
- 0.005296 cubm
- Units per Shipping Box
- 10
- Units per Pallet
- 0
- Model name
- GPE-700S
- Summary
- Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
- Vendor Homepage
- https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html
- Category Code
- PSU
- Unit Box Height
- 0.105
- Unit Box Length
- 0.235
- Unit Box Width
- 0.175
Power
- AC input frequency
- 50 Hz
- AC input voltage
- 230 V
- Combined power (+3.3V)
- 130 W
- Combined power (+5Vsb)
- 12.5 W
- Input current
- 6.3 A
- Max output current (+12V1)
- 52.5 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 22 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overload/Short circuit/Under voltage
- Total power
- 700 W
Ports & interfaces
- Cabling type
- Non-Modular
- Motherboard power connector
- 24-pin ATX
- Number of SATA power connectors
- 6
- Peripheral (Molex) power connectors (4-pin)
- 2
Performance
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
Design
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Product colour
- Silver
Weight & dimensions
- Depth
- 150 mm
- Height
- 87 mm
- Width
- 140 mm
Logistics data
- Harmonized System (HS) code
- 84733020
Identifiers
- Brand
- CHIEFTEC
- Model
- GPE-700S
- EAN
- 4710713234208
