CHIEFTEC

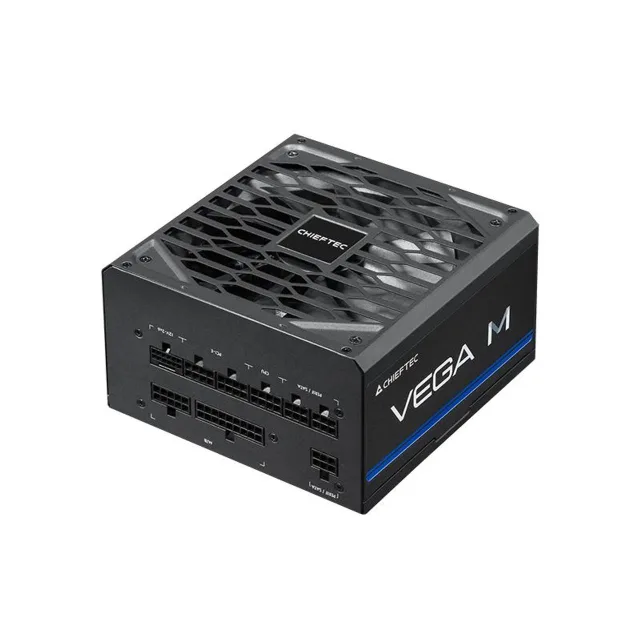

Power Supply|CHIEFTEC|ATX 750W|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-750-C
Specifications
- Unit Calculated Weight
- 2.5 kg
- Unit Calculated Volume
- 0.00759 cubm
- Units per Shipping Box
- 5
- Model name
- ATX 750W
- Summary
- Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
- Vendor Homepage
- www.chieftec.eu/products-detail/626/VEGA_M
- Category Code
- PSU
- Unit Box Height
- 0.21
- Unit Box Length
- 0.28
- Unit Box Width
- 0.105
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Max output current (+12V1)
- 62.5 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Total power
- 750 W
Ports & interfaces
- ATX power connector (20+4 pin)
- Yes
- ATX Power connector (24-pin)
- Yes
- Cabling type
- Fully-Modular
- CPU power cable length
- 650 mm
- CPU power connector (4+4 pin)
- Yes
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Motherboard power cable length
- 600 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (12+4 pin) cable length
- 600 mm
- PCI Express power connectors (6+2 pin)
- 4
- Peripheral (Molex) power cable length
- 400 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- SATA power cable length
- 400 mm
Performance
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- FDB
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 135 mm
- Illumination
- No
- Product colour
- Black
Certificates
- Certification
- 80PLUS Gold
Weight & dimensions
- Depth
- 150 mm
- Height
- 85 mm
- Weight
- 1960 g
- Width
- 150 mm
Packaging data
- Package weight
- 2430 g
Identifiers
- Brand
- CHIEFTEC
- Model
- PPG-750-C
- EAN
- 251112002462
