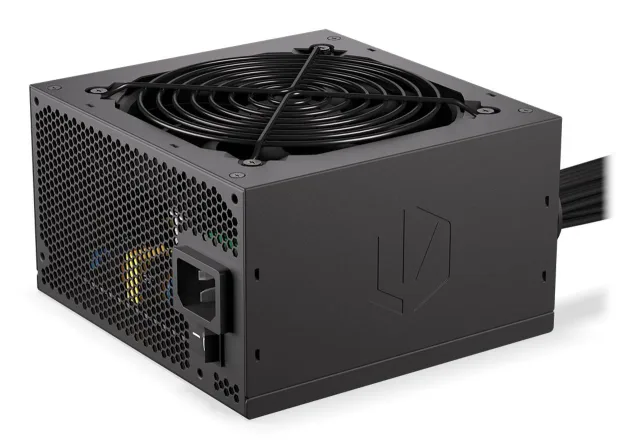

Power Supply|ENDORFY|Vero L5 Bronze 600 W|600 Watts|Efficiency 80 PLUS BRONZE|MTBF 80000 hours|EY7A005
About this product
When you're working and playing at 100%, you need components that can keep up with you your PC without breaking a sweat. Switch to God mode with a stable Vero L5 Bronze 600W power supply.
We gave it everything you need to squeeze the last juices from your PC – for example, Taiwanese Teapo capacitors and a silent Stratus fan with FDB bearing. A set worthy of 80 PLUS® Bronze certification (which Vero L5 Bronze 600W has, BTW).
The Vero L5 Bronze 600W is like a God Mode for you your PC.
It's a stable power supply with DC-DC converters to regulate voltages and deliver 500 W of continuous power. With Taiwanese Teapo electrolytic and aluminum-polymer capacitors inside, the Vero L5 Bronze 600W can operate at temperatures up to 105⁰C. No wonder this bad boy is 80 PLUS® Bronze certified.
The Vero L5 Bronze 600W is also protected against short circuits, system overloads and other mishaps. A quiet Stratus fan with FDB bearings keeps operating temperatures low. And with a chassis length of just 14 cm long, it can fit into a smaller PC too.
Specifications
- Unit Calculated Weight
- 2.2 kg
- Unit Calculated Volume
- 0.00658 cubm
- Units per Shipping Box
- 6
- Units per Pallet
- 0
- Model name
- Vero L5 Bronze 600 W
- Summary
- ENDORFY Vero L5 Bronze 600W. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 57 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
- Vendor Homepage
- https://endorfy.com/en/product/vero-l5-bronze-600w/
- Category Code
- PSU
- Unit Box Height
- 0.22
- Unit Box Length
- 0.095
- Unit Box Width
- 0.26
Power
- AC input frequency
- 50 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 588 W
- Combined power (+3.3V)
- 97 W
- Combined power (+5V)
- 97 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Input current
- 5 A
- Max output current (+12V)
- 49 A
- Max output current (+3.3V)
- 15 A
- Max output current (+5V)
- 15 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power protection features
- Over current/Over power/Over voltage/Short circuit/Under voltage
- Total power
- 600 W
Ports & interfaces
- ATX Power connector (24-pin)
- Yes
- Cabling type
- Non-Modular
- Motherboard power cable length
- 570 mm
- Motherboard power connector
- 24-pin ATX
- Number of SATA power connectors
- 5
- PCI Express power connectors (8-pin)
- 2
- Peripheral (Molex) power cable length
- 820 mm
- Peripheral (Molex) power connectors (4-pin)
- 1
- SATA power cable length
- 500 mm
Performance
- 80 PLUS certification
- 80 PLUS Bronze
- Mean time between failures (MTBF)
- 80000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- Supported motherboard form factors
- ATX
Design
- Built-in display
- No
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
Packaging content
- Cables included
- AC
Certificates
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
Weight & dimensions
- Depth
- 150 mm
- Height
- 87 mm
- Weight
- 1690 g
- Width
- 140 mm
Packaging data
- Package depth
- 220 mm
- Package height
- 95 mm
- Package type
- Box
- Package weight
- 2190 g
- Package width
- 260 mm
Technical details
- Sustainability compliance
- Yes
Logistics data
- Country of origin
- China
- Warranty period
- 3 year(s)
Identifiers
- Brand
- ENDORFY
- Model
- EY7A005
- EAN
- 5903018666143
