GIGABYTE

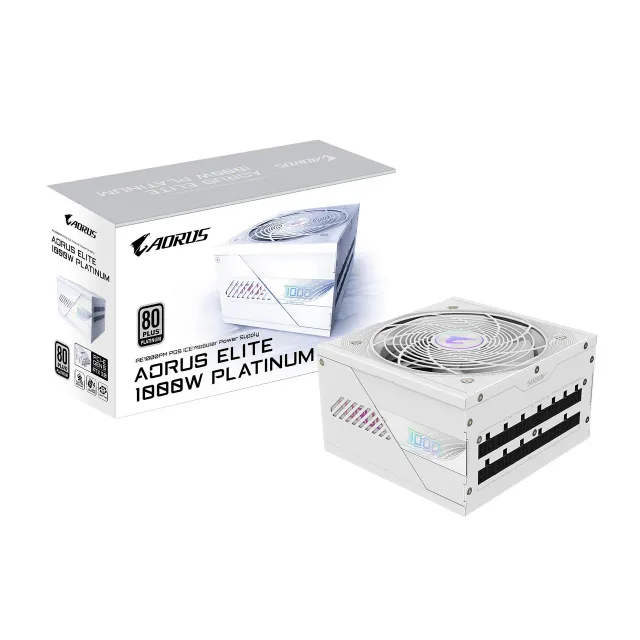

Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE
About this product
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty
Specifications
- Unit Calculated Weight
- 3.73 kg
- Unit Calculated Volume
- 0.01086 cubm
- Units per Shipping Box
- 5
- Model name
- AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug
- Summary
- GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
- Vendor Homepage
- https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10#kf
- Category Code
- PSU
- Unit Box Height
- 0.205
- Unit Box Length
- 0.34
- Unit Box Width
- 0.12
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+12V)
- 999.6 W
- Combined power (+3.3V)
- 125 W
- Combined power (+5V)
- 125 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 92 %
- Hold time
- 16 ms
- Input current
- 15 - 6.5 A
- Max output current (+12V)
- 83.3 A
- Max output current (+3.3V)
- 25 A
- Max output current (+5V)
- 25 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power Good signal delay range
- 100 - 150 ms
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Total power
- 1000 W
Ports & interfaces
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Fully-Modular
- CPU power connector (4+4 pin)
- Yes
- Floppy disk drive connector
- Yes
- Floppy drive power connector
- 2
- Motherboard power cable length
- 650 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express connector
- Yes
- PCI Express power connectors (6+2 pin)
- 6
- Peripheral (Molex) power connectors (4-pin)
- 4
Performance
- 80 PLUS certification
- 80 PLUS Platinum
- ATX version
- 3.1
- Bearing technology
- Ball bearing
- Mean time between failures (MTBF)
- 100000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- White
Weight & dimensions
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 3102 g
- Width
- 150 mm
Packaging data
- Package depth
- 206 mm
- Package height
- 120 mm
- Package type
- Box
- Package weight
- 3732 g
- Package width
- 340 mm
Logistics data
- Warranty period
- 10 year(s)
Identifiers
- Brand
- GIGABYTE
- Model
- GP-AE1000PMPG5ICE
- EAN
- 4719331554651
