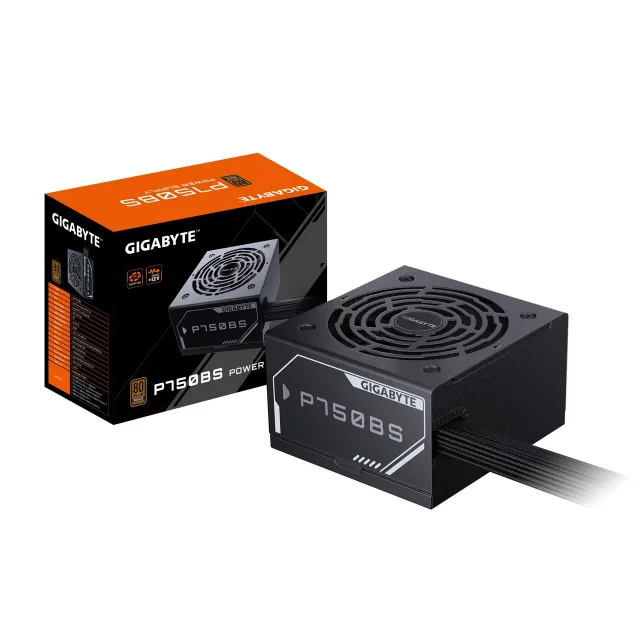

Power Supply|GIGABYTE|GP-P750BS|750 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MTBF 100000 hours|GP-P750BS
About this product
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- 80 PLUS Bronze certified (230V EU)
- 120mm Silent Fluid Dynamic Bearing (FDB) fan
- Soft-textured embossed cables
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifications
- Unit Calculated Weight
- 2.15 kg
- Unit Calculated Volume
- 0.007868 cubm
- Units per Shipping Box
- 5
- Model name
- GP-P750BS
- Summary
- GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
- Vendor Homepage
- https://www.gigabyte.com/
- Category Code
- PSU
- Unit Box Height
- 0.12
- Unit Box Length
- 0.256
- Unit Box Width
- 0.21
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 750 W
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 88 %
- Hold time
- 16 ms
- Input current
- 6 A
- Max output current (+12V)
- 62.5 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power Good signal delay range
- 100 - 150 ms
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Total power
- 750 W
Ports & interfaces
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Non-Modular
- CPU power connector (4+4 pin)
- Yes
- Floppy disk drive connector
- Yes
- Floppy drive power connector
- 2
- Motherboard power cable length
- 600 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 7
- PCI Express connector
- Yes
- PCI Express power connectors (6+2 pin)
- 4
- Peripheral (Molex) power cable length
- 150/600 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- SATA power cable length
- 150/500 mm
Performance
- 80 PLUS certification
- 80 PLUS Bronze
- Bearing technology
- FDB
- Mean time between failures (MTBF)
- 100000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
Weight & dimensions
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 2218 g
- Width
- 150 mm
Packaging data
- Package depth
- 206 mm
- Package height
- 117 mm
- Package type
- Box
- Package weight
- 2682 g
- Package width
- 254 mm
Logistics data
- Warranty period
- 3 year(s)
Identifiers
- Brand
- GIGABYTE
- Model
- GP-P750BS
- EAN
- 4719331555238
