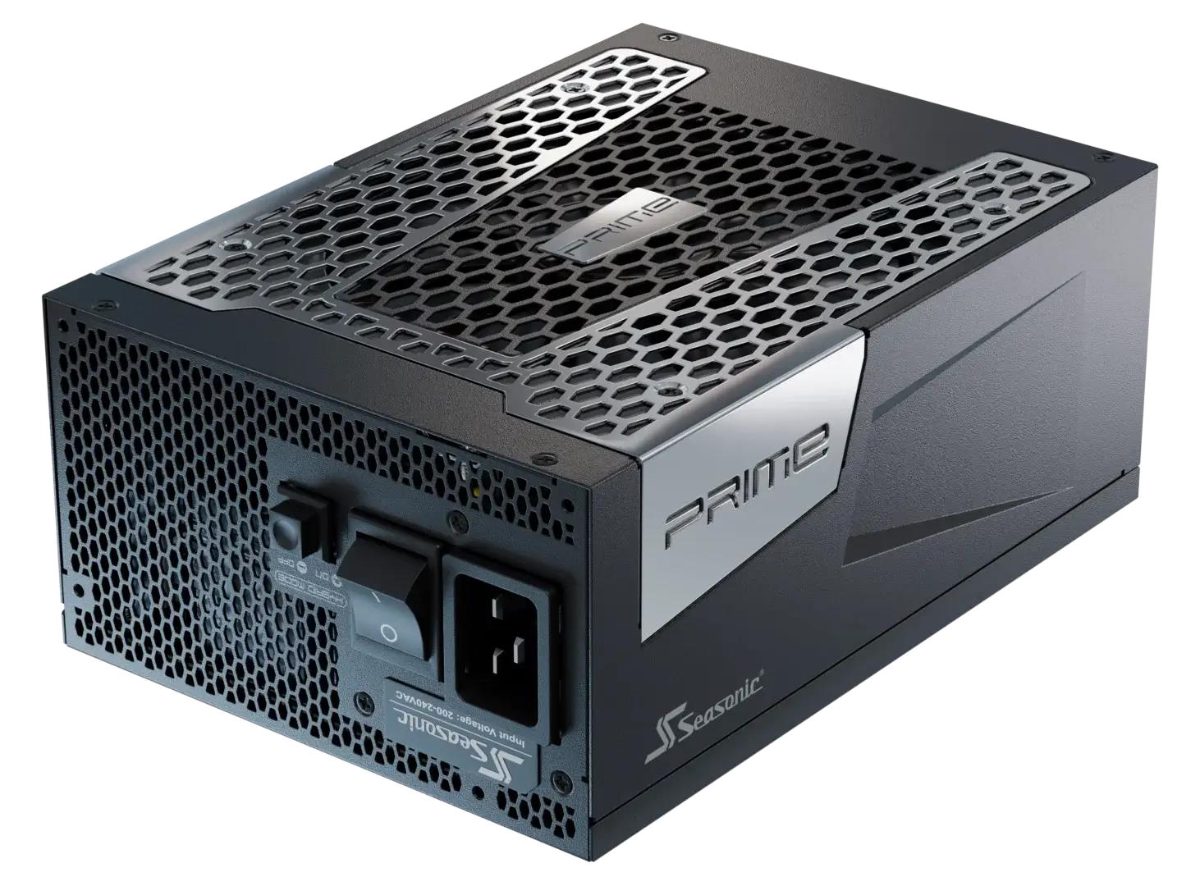

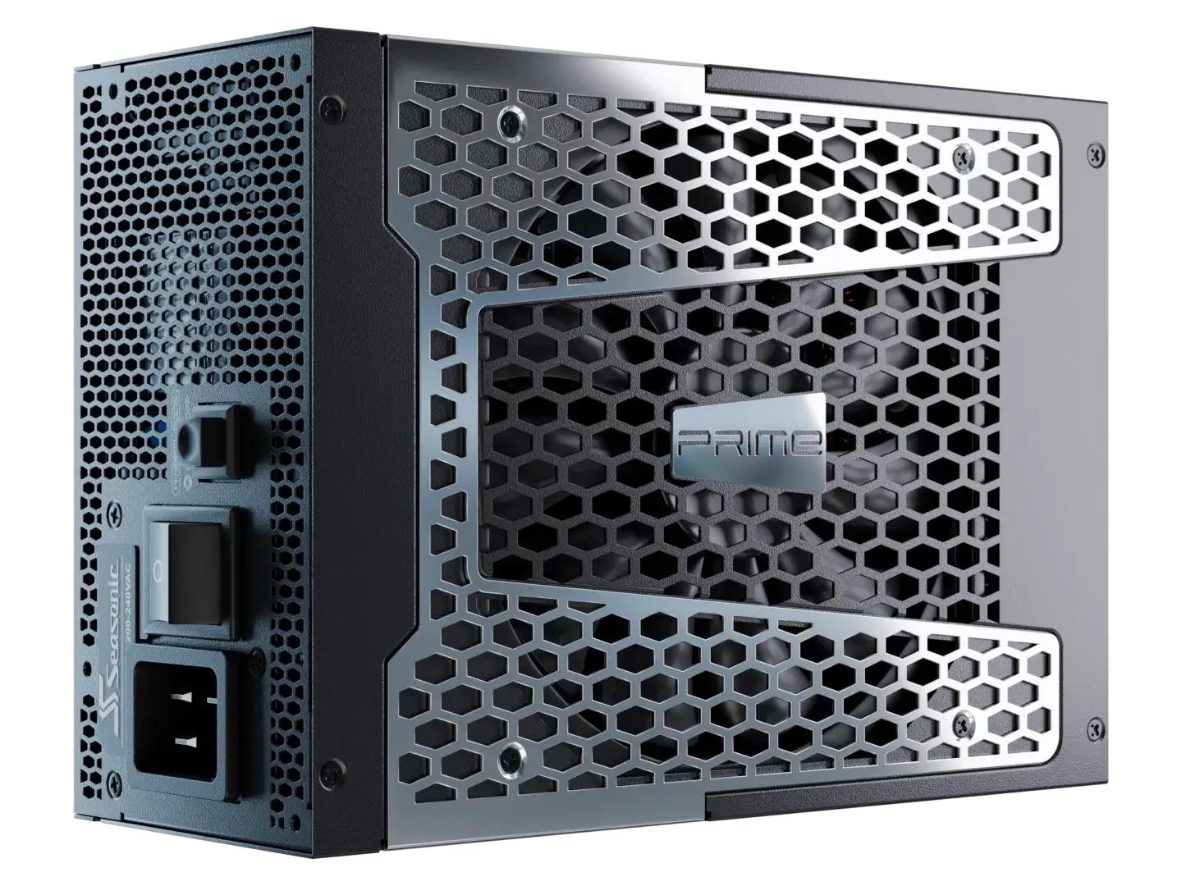

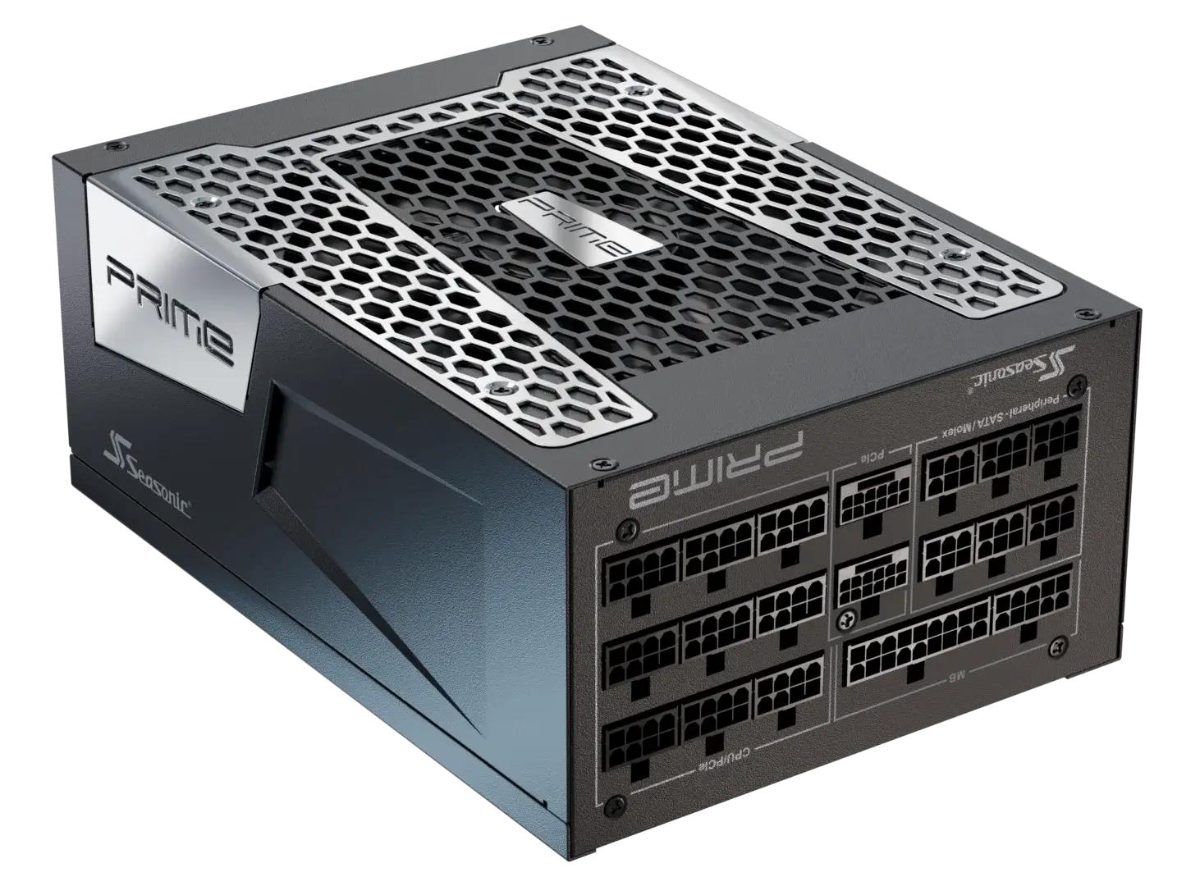

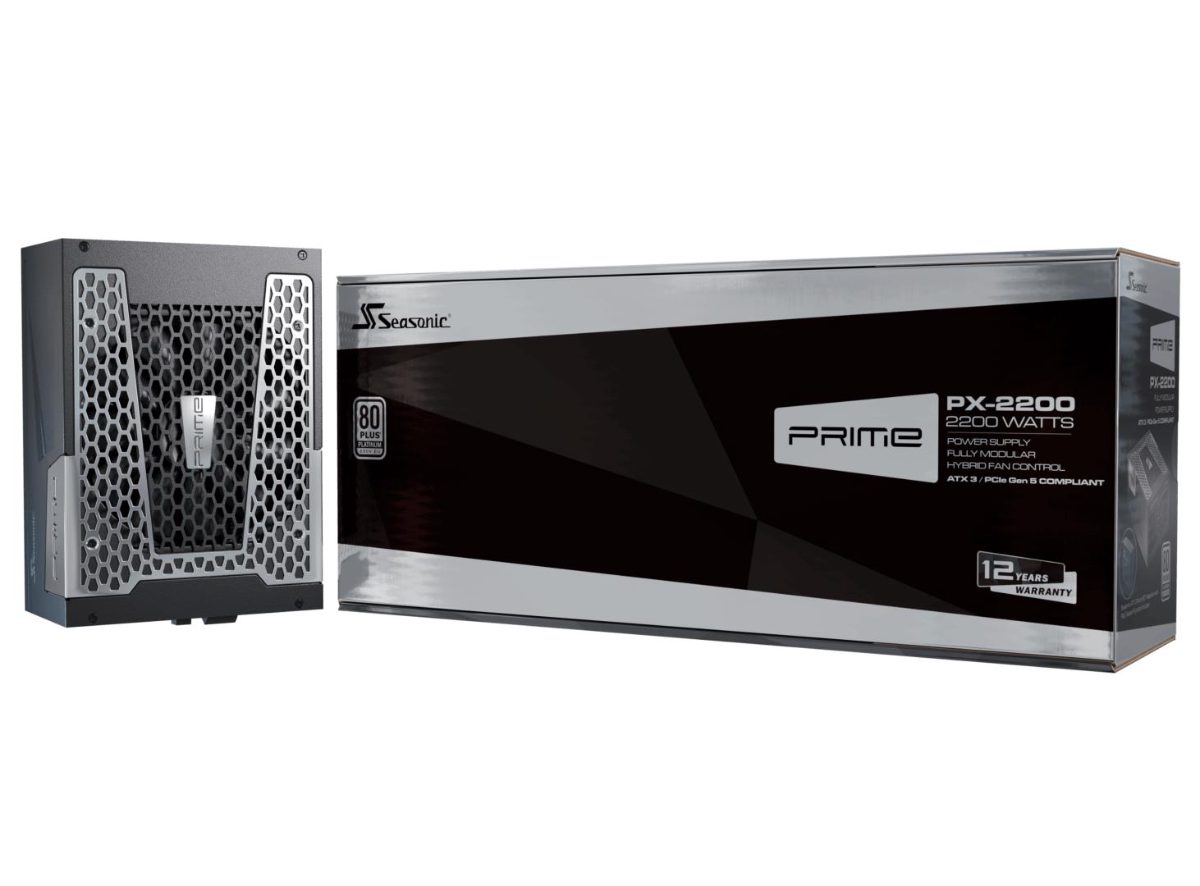

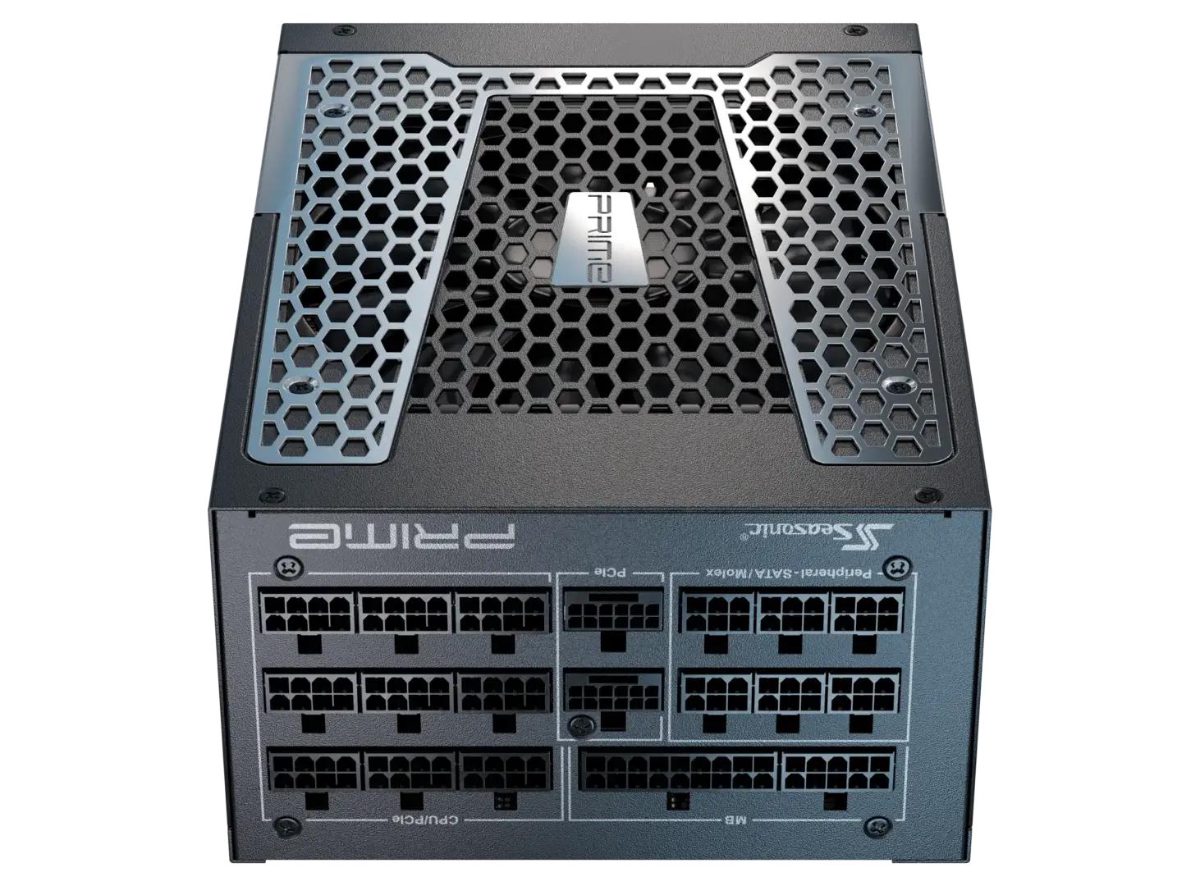

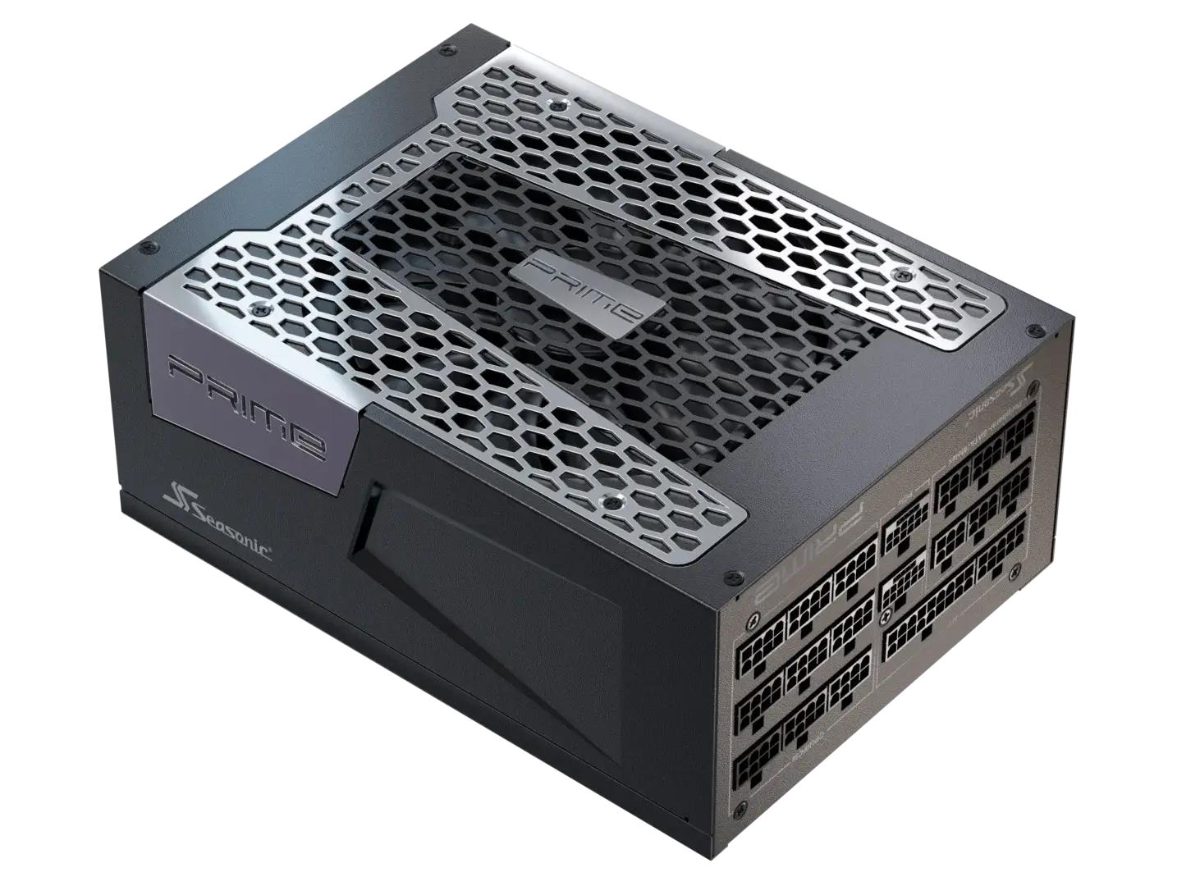

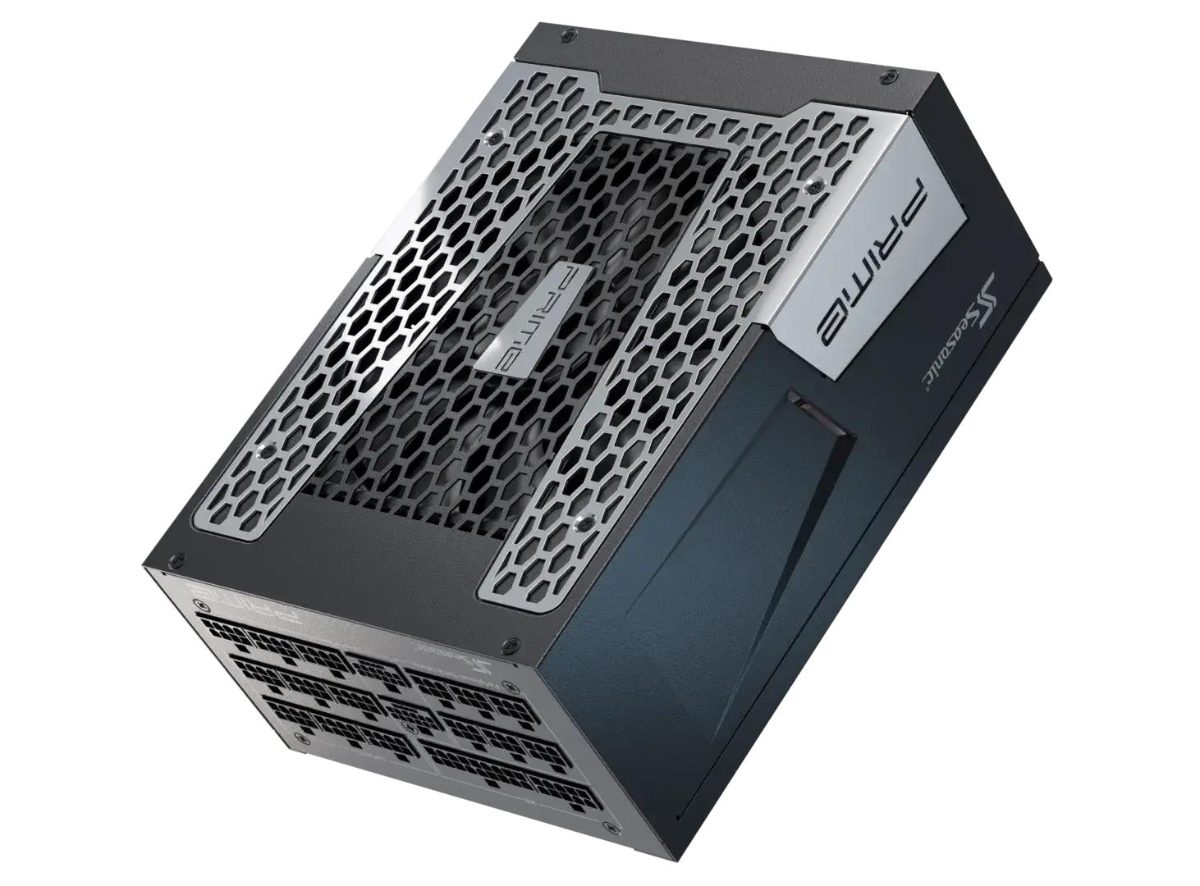

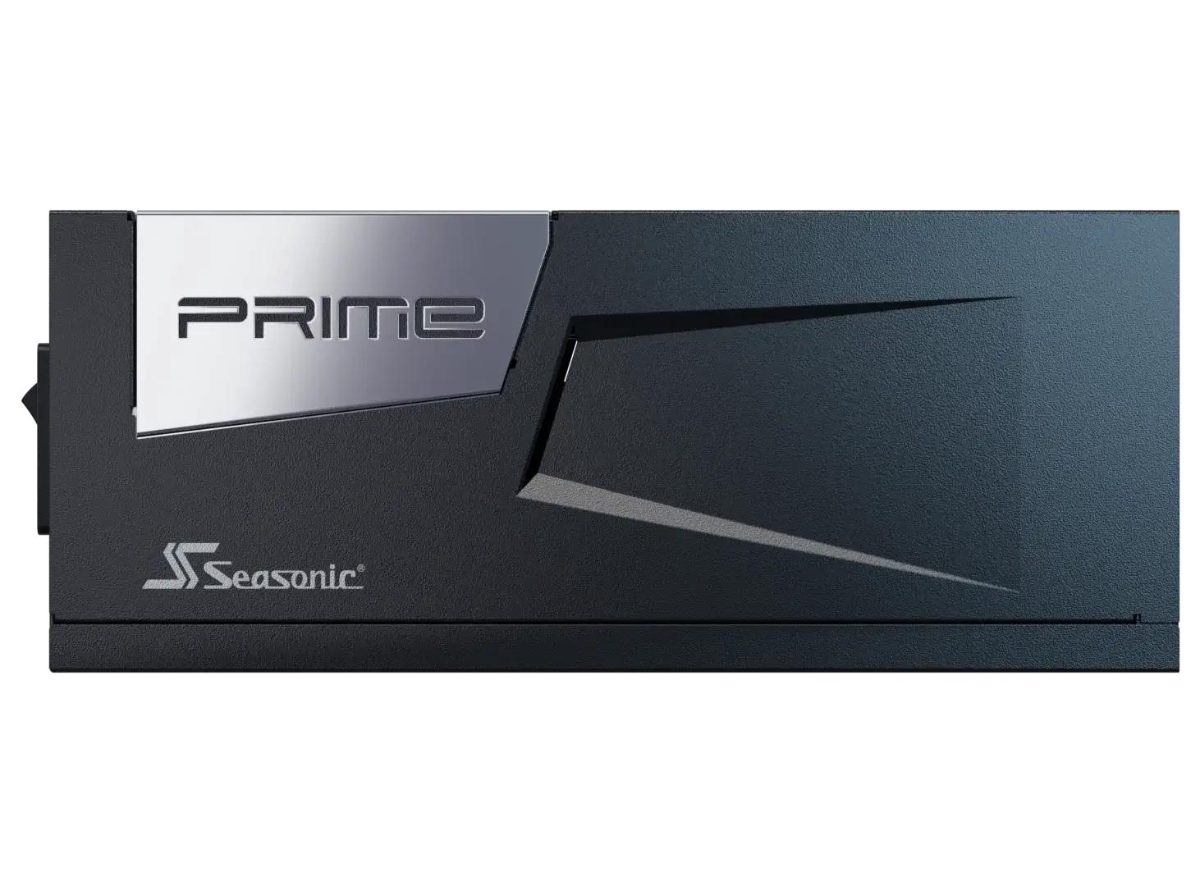

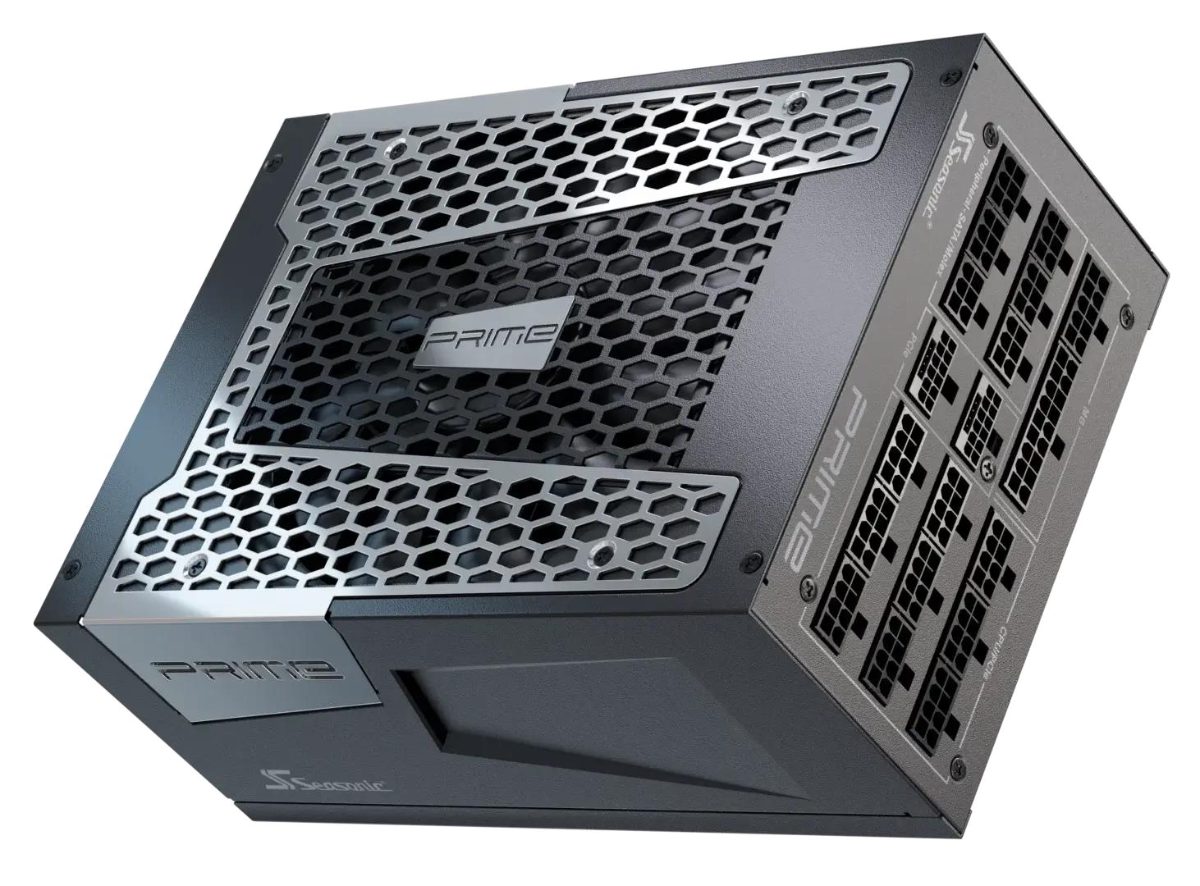

Power Supply, SEASONIC, PRIME PX ATX 3.1, 2200 Watts

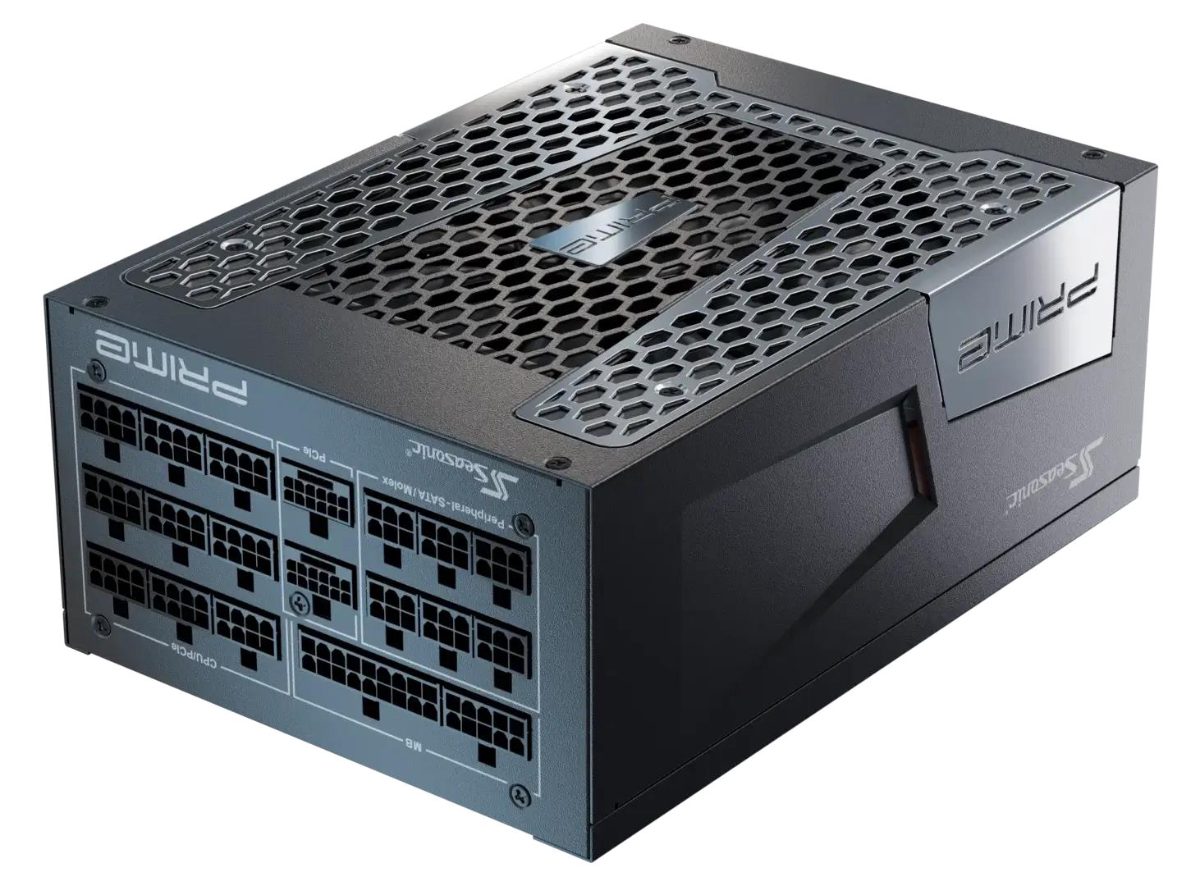

Power Supply, SEASONIC, PRIME PX ATX 3.1, 2200 Watts, Efficiency 80 PLUS PLATINIUM, MTBF 100000 hours, PRIME-PX-2200-ATX30
SEASONIC · 4711173878414
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 144 mo.
- Invoice: with every order
- EAN
- 4711173878414
- Brand
- SEASONIC
Description
PRIME PX ATX 3.1
Power. Performance. PRIME.
PRIME PX ATX 3
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.

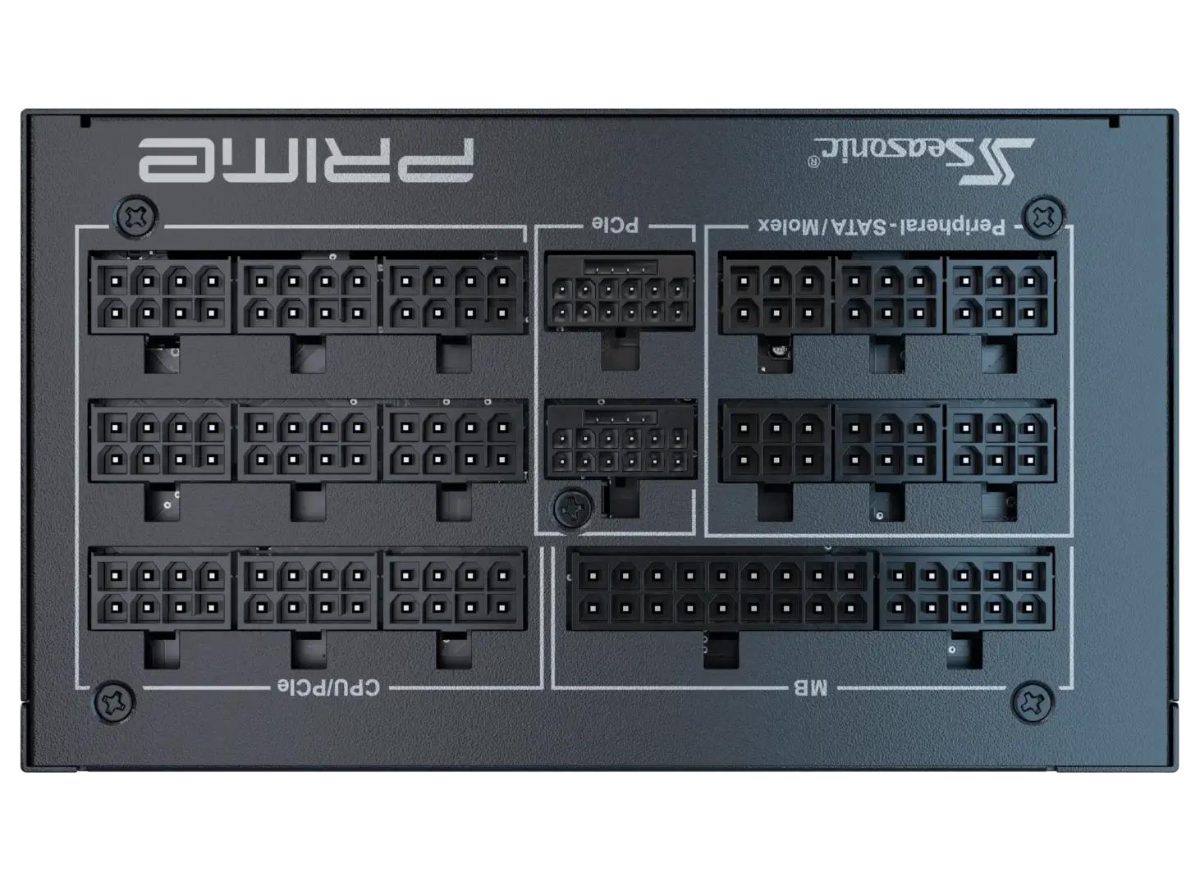

ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

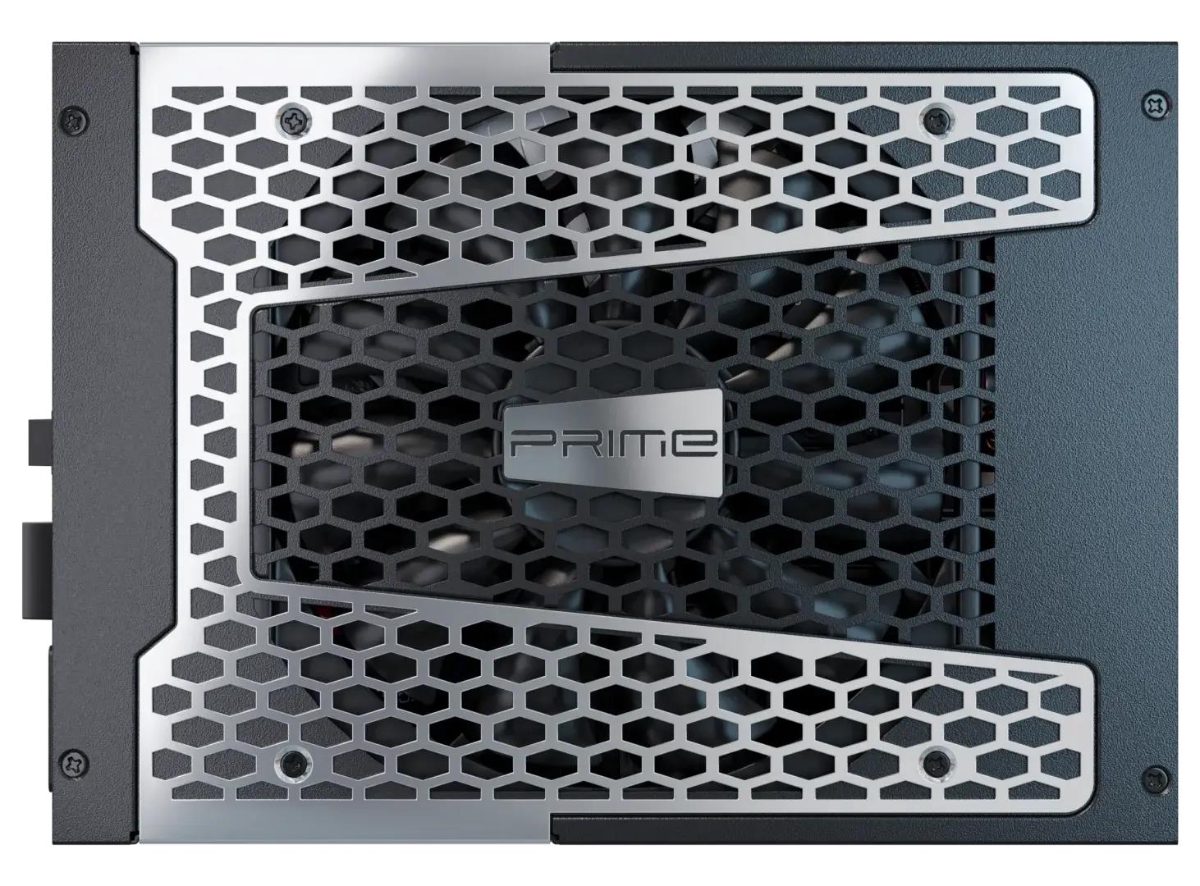

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Specifications
| Input voltage | 115 - 240 V |
| Combined power (+12V rail) | 2200 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Input current | 15 A |
| Max output current (+12V) | 183.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Rated power | 2200 W |
| PSU cabling type | Fully-Modular |
| CPU power cable length | 700 mm |
| EPS power connector | Yes |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 10 |
| Molex power cable length | 470/690 mm |
| Molex power connectors | 3 |
| SATA power cable length | 450/470/550/570/760/860/950 mm |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Bearing technology | FDB |
| MTBF | 150000 h |
| Form factor | ATX |
| Intended use | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Black |
| Operating temperature | 0 - 50 °C |
| Cable ties included | Yes |
| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Certificates | CCC/CE/REACH/RoHS/WEEE |
| Depth | 210 mm |
| Height | 86 mm |
| Width | 150 mm |
| Model name | PRIME PX ATX 3.1 |
