TECNOWARE

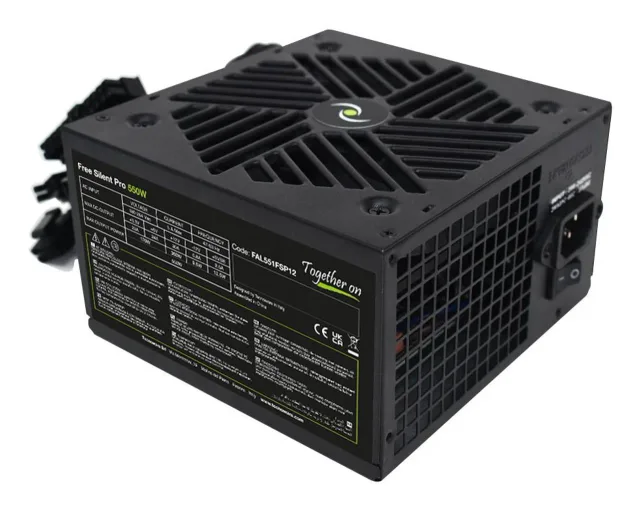

Power Supply|TECNOWARE|FAL551FSP12|ATX|550 W|FAL551FSP12
About this product
Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
Specifications
- Unit Calculated Weight
- 1.13 kg
- Unit Calculated Volume
- 0.0034 cubm
- Units per Shipping Box
- 8
- Units per Pallet
- 0
- Model name
- FAL551FSP12
- Summary
- Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS
- Vendor Homepage
- https://www.tecnoware.com/en-US/Dettaglio/Articolo/883
- Category Code
- PSU
- Unit Box Height
- 0.1
- Unit Box Length
- 0.2
- Unit Box Width
- 0.16
Power
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 180 - 264 V
- Combined power (+12V)
- 360 W
- Combined power (+3.3V)
- 170 W
- Combined power (+5V)
- 170 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 9.6 W
- Efficiency
- 85 %
- Input current
- 5 A
- Max output current (+12V)
- 30 A
- Max output current (+3.3V)
- 23 A
- Max output current (+5V)
- 24 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.8 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Overload/Short circuit/Surge protection
- Total power
- 550 W
Ports & interfaces
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Non-Modular
- CPU power cable length
- 550 mm
- CPU power connector (4+4 pin)
- Yes
- Motherboard power cable length
- 500 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 4
- PCI Express power cable length
- 500 mm
- PCI Express power connectors (6+2 pin)
- 1
- Peripheral (Molex) power connectors (4-pin)
- 2
Performance
- 80 PLUS certification
- No
- ATX version
- 2.31
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 40 °C
Certificates
- Compliance certificates
- CE/RoHS
Weight & dimensions
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 1000 g
- Width
- 140 mm
Packaging data
- Package type
- Box
Identifiers
- Brand
- TECNOWARE
- Model
- FAL551FSP12
- EAN
- 8026475183408
