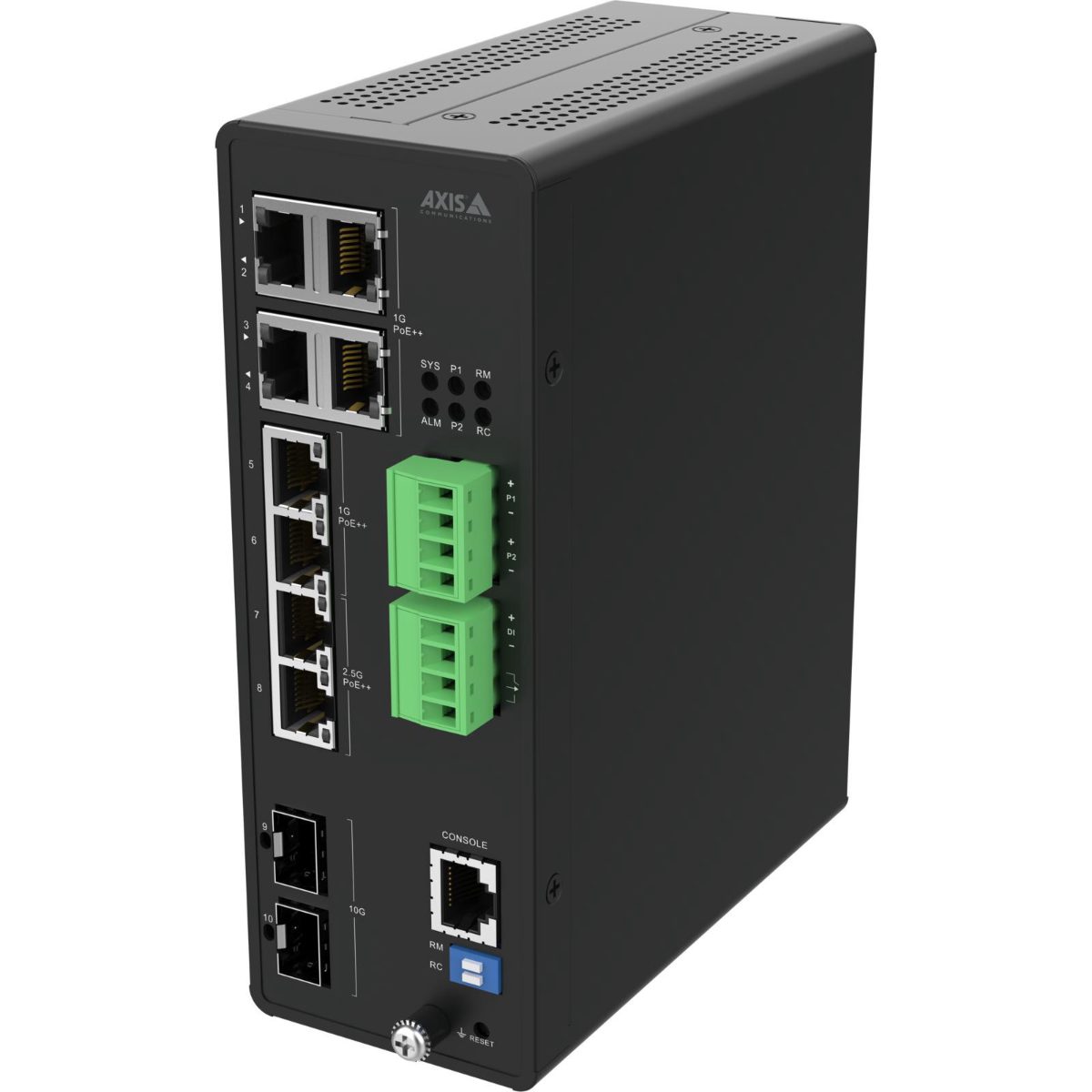

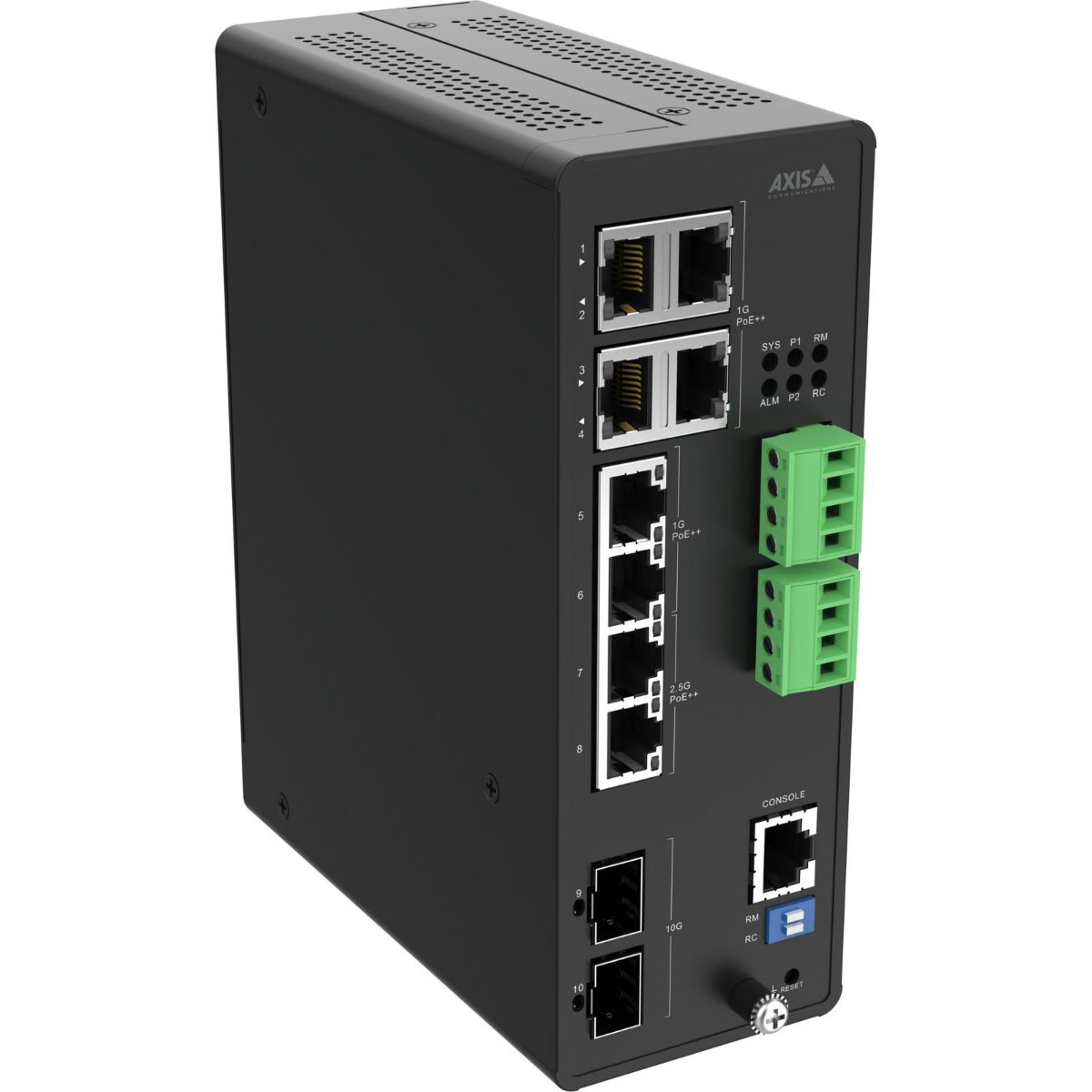

Switch, AXIS, 2x10GbE, 6x1GbE, 480 Watts, 02621-001

Name: Switch, AXIS, 2x10GbE, 6x1GbE, 480 Watts, 02621-001
Brand: AXIS
SKU: 7331021080225

AXIS · 7331021080225

—

The invoice is sent as soon as you order.

Out of stock

Payment: bank transfer or cash on delivery
Delivery: 1–3 working days, anywhere in Latvia
Warranty: 60 mo.
Invoice: with every order

EAN: 7331021080225
Brand: AXIS

Description

This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.

480 W power budget; Compliant with IEEE 802.3bt up to 90 W; Familiar and intuitive Axis interface; High availability with Rapid Ring; NEMA TS-2 Compliant

Specifications

ARP inspection	Yes
Switch type	Managed
2.5G Ethernet ports	2
Ethernet (RJ-45) ports	8
Ethernet type	10G Ethernet (100/1000/10000)
Console port type	RJ-45
Gigabit Ethernet (copper) ports	6
Installed SFP+ modules	2
10 Gigabit support	Yes
Networking standards	IEEE 802.1Q/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Virtual LAN features	Private VLAN
VLAN support	Yes
Jumbo frame size	10240
Jumbo frames	Yes
MAC address table size	16000 entries
Switching capacity	62 Gbit/s
Throughput	46.12 Mpps
Access control list (ACL)	Yes
DHCP features	DHCP snooping
Password protection	Yes
Security algorithms	HTTPS
Network protocols	IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP
Material	Aluminium
Colour	Black
Power source	DC/PoE
Power over Ethernet	Yes
PoE port count	8
PoE power per port	90 W
Total PoE budget	480 W
Operating humidity	5 - 95 %
Operating temperature	-40 - 60 °C
Non-operating relative humidity	5 - 95 %
Storage temperature	-40 - 85 °C
Depth	130 mm
Height	168 mm
Weight	892 g
Width	62 mm
Certification	EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 ed. 3 Environment IEC 600
Model	D8208-R
