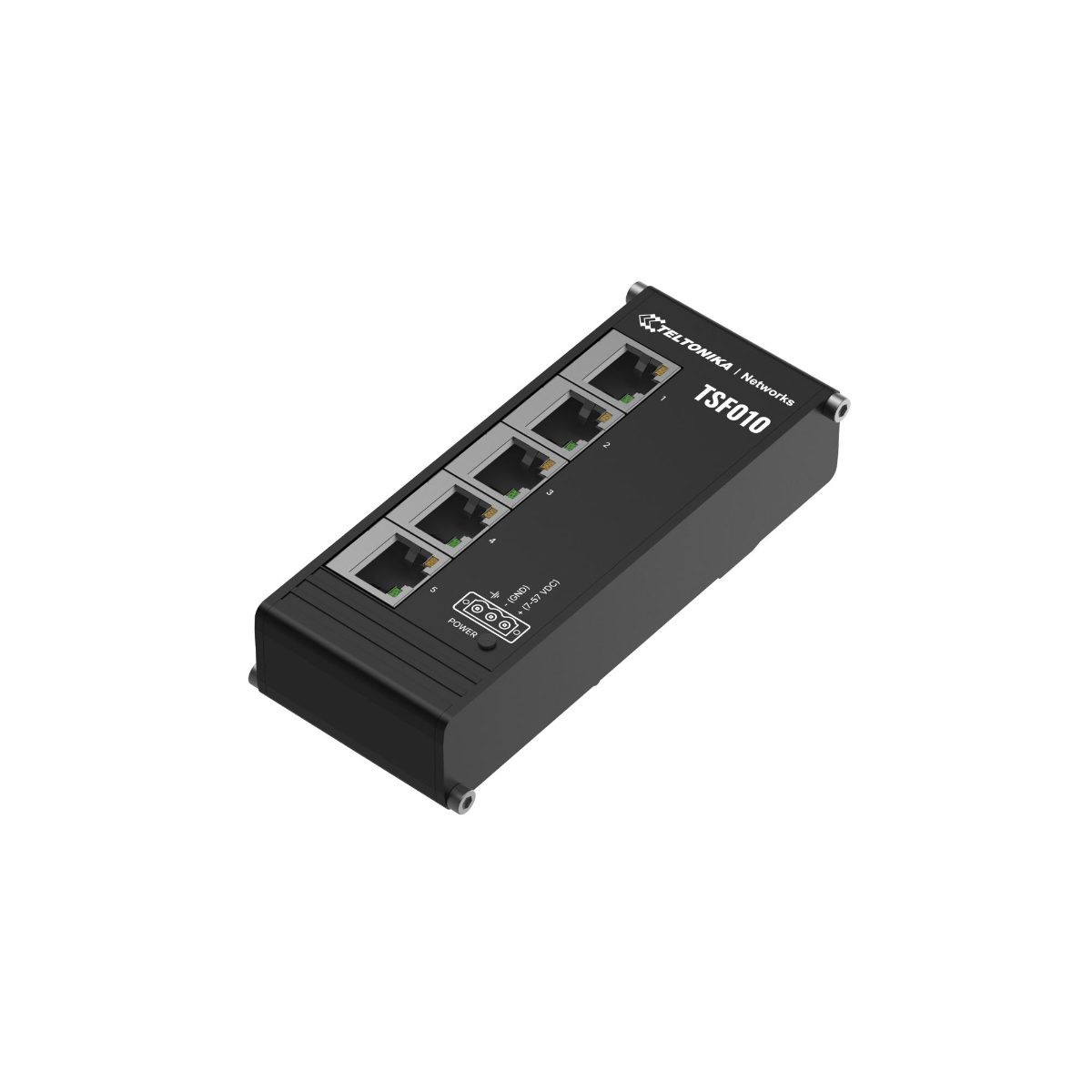

Industrial Switch, TSF010, Unmanaged, DIN rail mountable
Industrial Switch, TSF010, Unmanaged, DIN rail mountable, 10/100 Mbps (RJ-45) ports quantity 5, Power supply type 3-pin industrial DC power socket
Teltonika · 4779051841356
—
The invoice is sent as soon as you order.
Out of stock
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 24 mo.
- Invoice: with every order
- EAN
- 4779051841356
- Brand
- Teltonika
Description

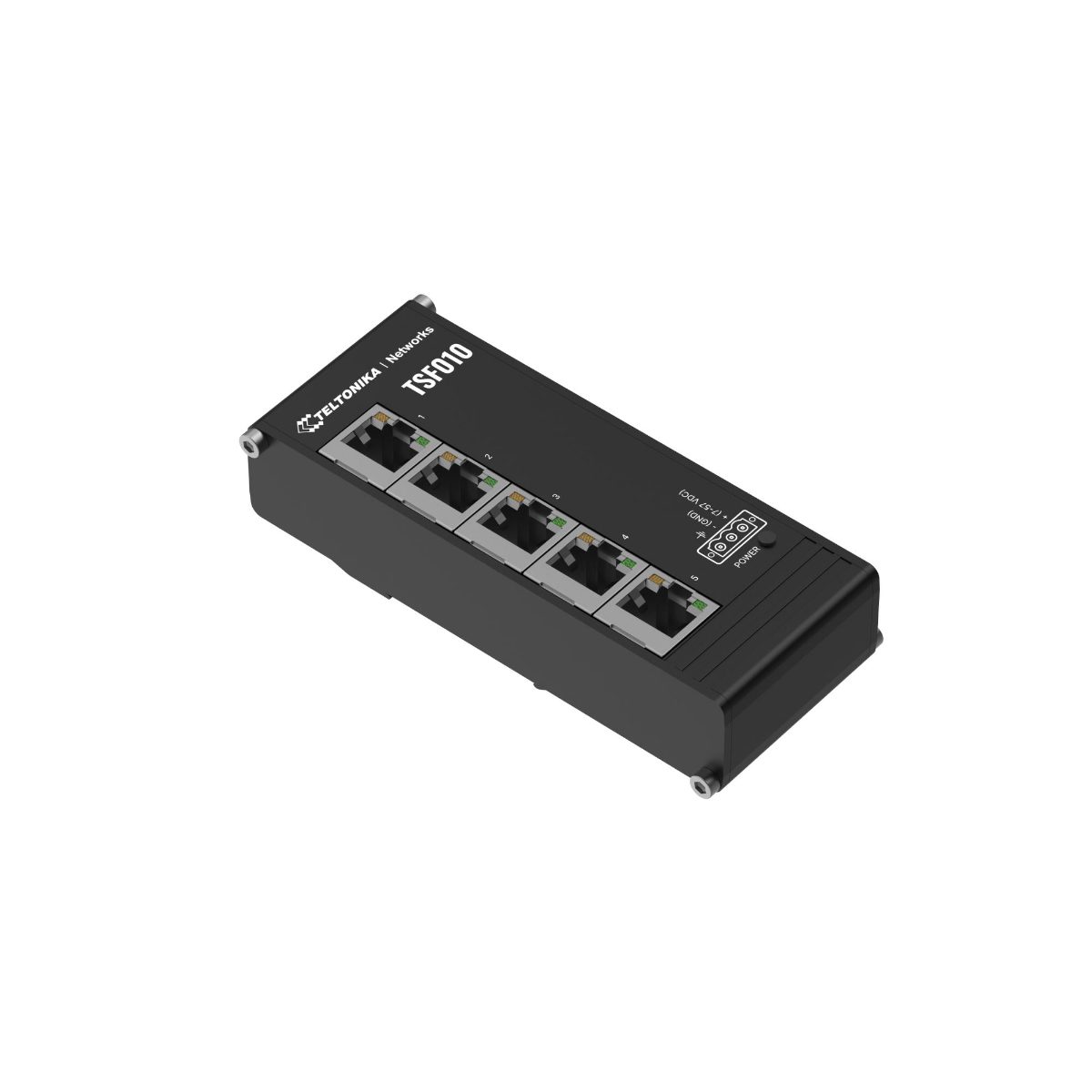

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

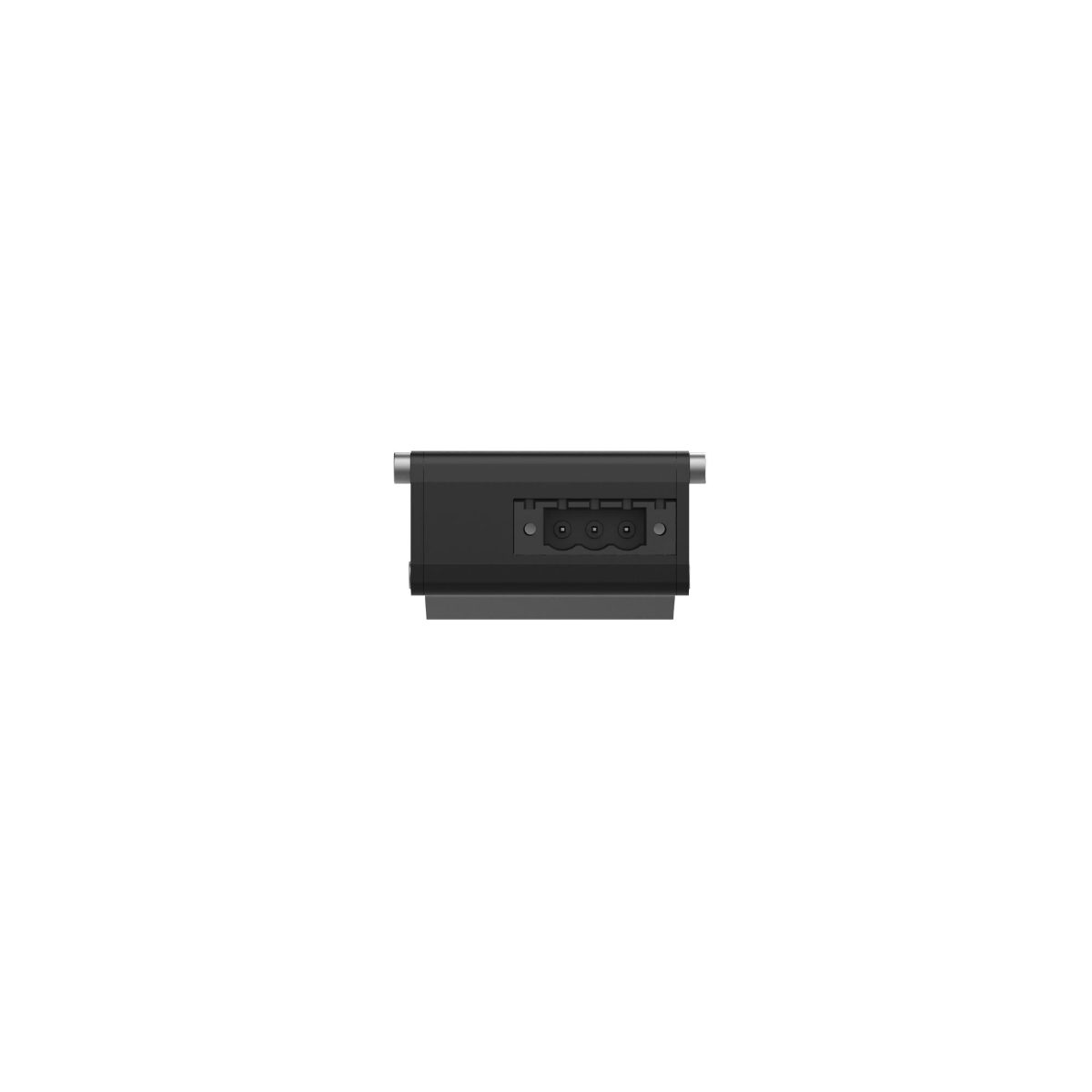

- 3-PIN POWER INPUT
- Flexible and tailor-made for industrial use
- FLAT & COMPACT
- Flat and compact design weighing only 142 g

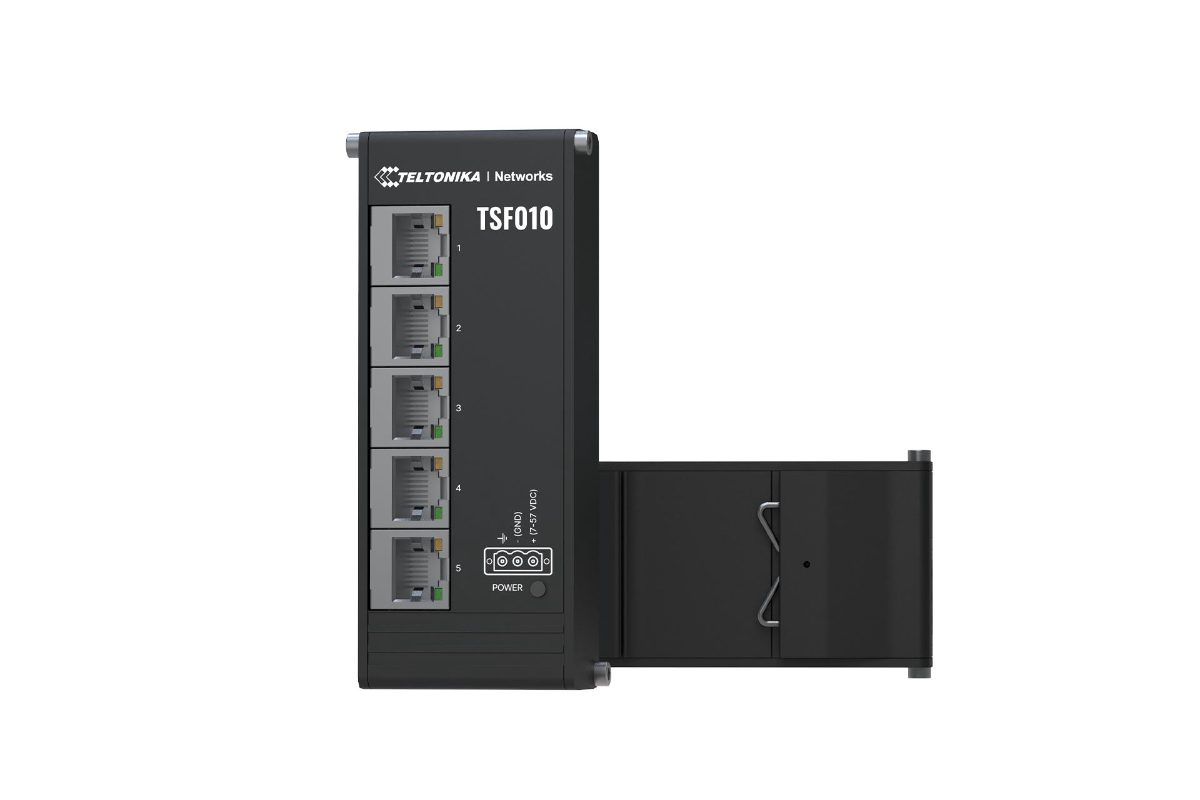

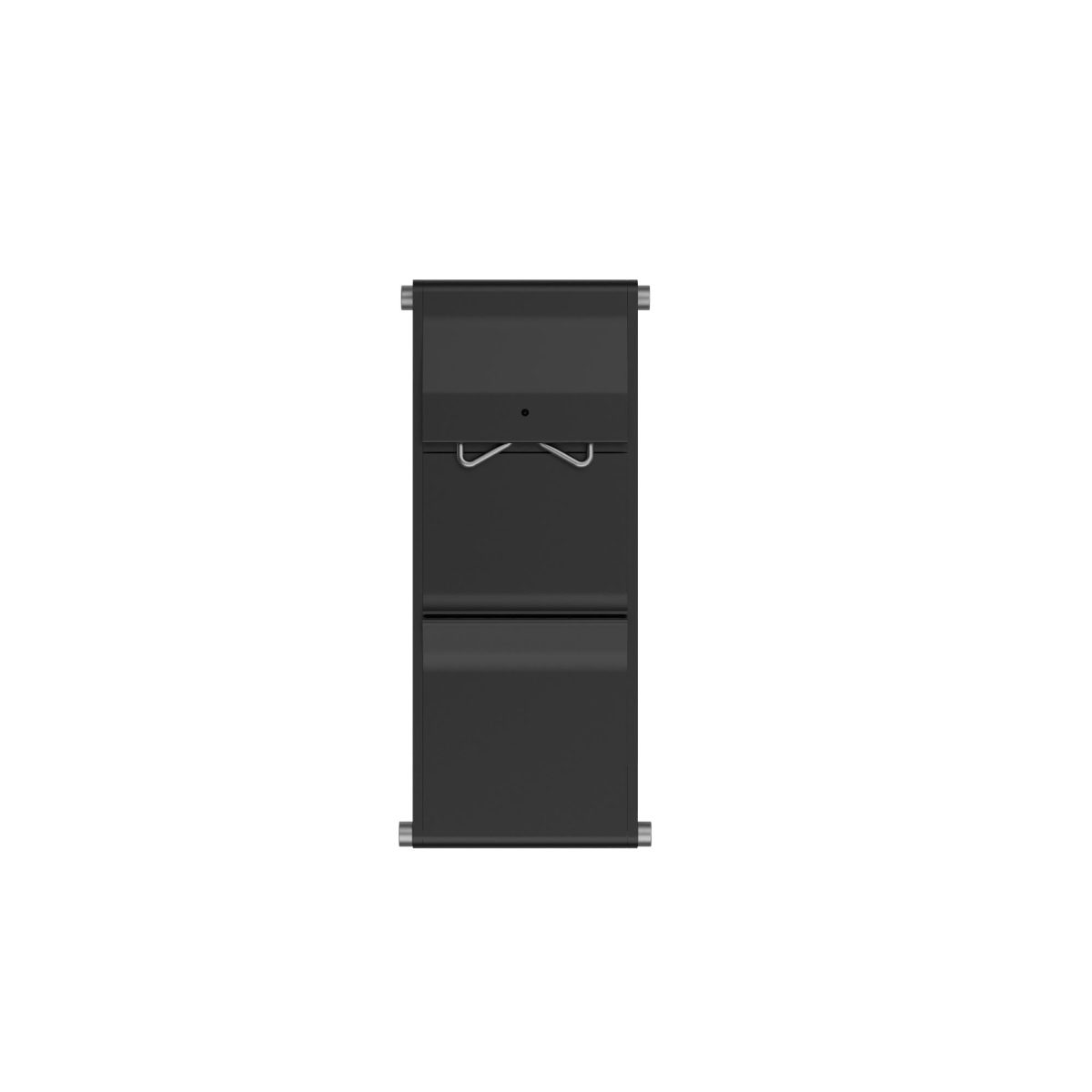

- INTEGRATED DIN RAIL BRACKET
- Easy mounting for plug-and-play deployment
- 7-57 VDC
- Suitable voltage range for industrial applications
Specifications
| Switch type | Unmanaged |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports | 5 |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Jumbo frame size | 9216 |
| Jumbo frames | Yes |
| MAC address table size | 2048 entries |
| Switching capacity | 10 Gbit/s |
| DIN rail mounting | Yes |
| Form factor | DIN rail |
| Material | Aluminium |
| IP rating | IP30 |
| Colour | Black |
| Rack mountable | No |
| Stackable | No |
| Input voltage | 7 - 57 V |
| Power consumption (max) | 1.5 W |
| Power consumption (typical) | 1 W |
| Power source | DC |
| Power supply included | No |
| Power over Ethernet | No |
| Operating humidity | 10 - 90 % |
| Operating temperature | -40 - 75 °C |
| Depth | 50 mm |
| Height | 28 mm |
| Weight | 142 g |
| Width | 113 mm |
