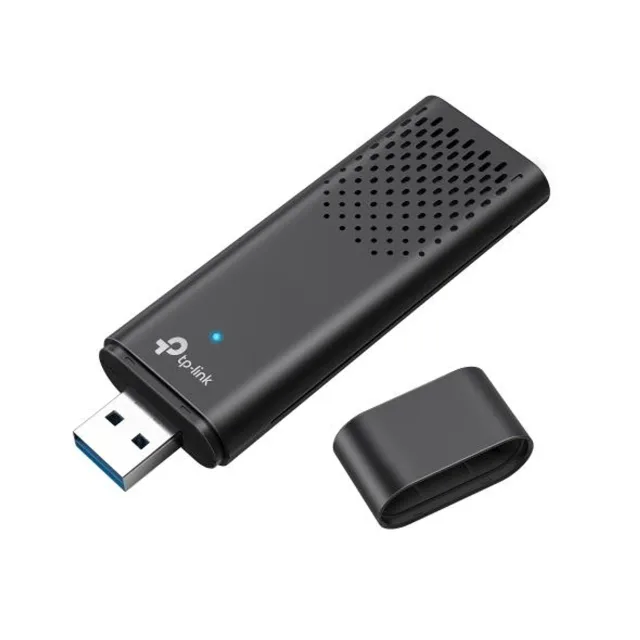

WRL ADAPTER 1800MBPS USB/ARCHER TX20U TP-LINK
About this product
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.
Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
- Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity
- Broader Coverage - Connect to your WiFi from wherever in your home with high-performance antennas and Beamforming
- Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
- Improved Security - WPA3 provides the latest security enhancements for personal password protection
- SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0
Specifications
- Unit Calculated Weight
- 0.16 kg
- Unit Calculated Volume
- 0.00156 cubm
- Units per Shipping Box
- 40
- Summary
- TP-Link Archer AX1800 Dual Band Wi-Fi 6 USB Adapter. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1201 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black
- Vendor Homepage
- https://www.tp-link.com/uk/home-networking/adapter/archer-tx20u/
- Category Code
- WRA
- Unit Box Height
- 0.04
- Unit Box Length
- 0.2
- Unit Box Width
- 0.155
- Model
- Archer TX20U
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB
- Interface
- WLAN
- USB connector form factor
- Straight
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
Network
- Maximum data transfer rate
- 1201 Mbit/s
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- Security algorithms
- WEP/WPA/WPA2/WPA2-PSK/WPA3/WPA-PSK
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- WLAN data transfer rates supported
- 11/300/400/54/574/867 Mbit/s
Design
- Component for
- PC
- Internal
- No
- LED indicators
- Status
- Operating modes
- Infrastructure mode
- Product colour
- Black
- Transmitting power (CE)
- 18.5 - 21.5 dBm
- Transmitting power (FCC)
- 19 dBm
System requirements
- Windows operating systems supported
- Windows 10/Windows 11
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
Weight & dimensions
- Depth
- 29.2 mm
- Height
- 12.9 mm
- Width
- 90.2 mm
Packaging data
- Package depth
- 200 mm
- Package height
- 39 mm
- Package weight
- 110 g
- Package width
- 150 mm
Packaging content
- Quick installation guide
- Yes
Technical details
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
Identifiers
- Brand
- TP-LINK
- Categories
- Networking
- Model
- ARCHERTX20U
- EAN
- 4895252503487
