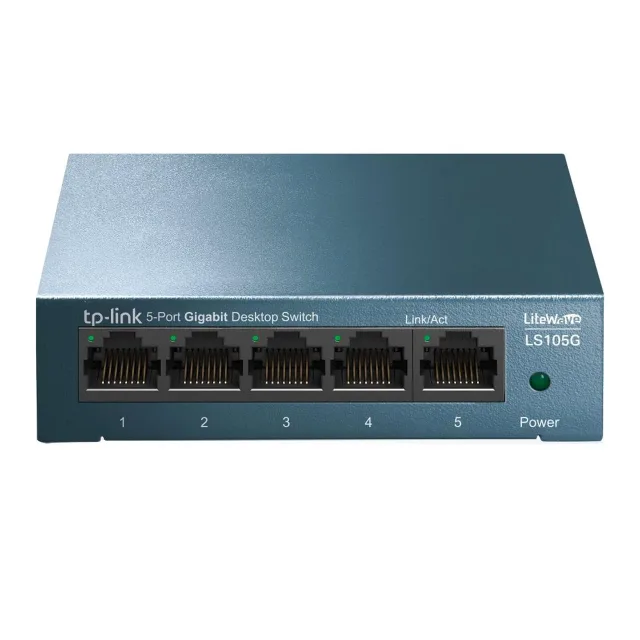

Switch|TP-LINK|LS105G|5x10Base-T / 100Base-TX / 1000Base-T|LS105G
About this product
Increase Your Network Speed and Save Energy
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Specifications
- Unit Calculated Weight
- 0.372 kg
- Unit Calculated Volume
- 0.001787 cubm
- Units per Shipping Box
- 36
- Units per Pallet
- 0
- Summary
- TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
- Vendor Homepage
- https://www.tp-link.com/uk/business-networking/unmanaged-switch/ls105g/#overview
- Category Code
- SWI
- Unit Box Height
- 0.093
- Unit Box Length
- 0.13
- Unit Box Width
- 0.125
- Model name
- 5-Port 10/100/1000Mbps Desktop Network Switch
- Model
- LS105G
Management features
- Quality of Service (QoS) support
- Yes
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 5
- Power connector
- DC-in jack
Network
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Networking standards
- IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Data transmission
- Forwarding rate
- 7.4 Mpps
- Jumbo frames
- 16000
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 1 MB
- Switching capacity
- 10 Gbit/s
Design
- Housing material
- Metal
- LED indicators
- Activity/LAN/Power
- Product colour
- Blue
- Rack mounting
- No
- Wall mountable
- Yes
Power
- Input current
- 0.6 A
- Input voltage
- 5 V
- Power consumption (max)
- 2.776 W
- Power source
- DC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Heat dissipation
- 9.466 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
Weight & dimensions
- Depth
- 98 mm
- Height
- 25 mm
- Width
- 99.8 mm
Packaging content
- Quick start guide
- Yes
Packaging data
- Package depth
- 128 mm
- Package height
- 92 mm
- Package weight
- 290 g
- Package width
- 125 mm
Certificates
- Certification
- CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
Identifiers
- Brand
- TP-LINK
- Categories
- Networking
- Model
- LS105G
- EAN
- 6935364085445
