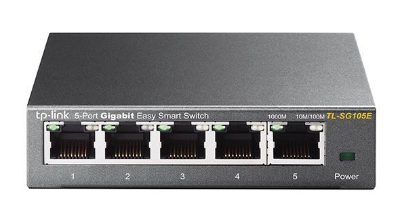

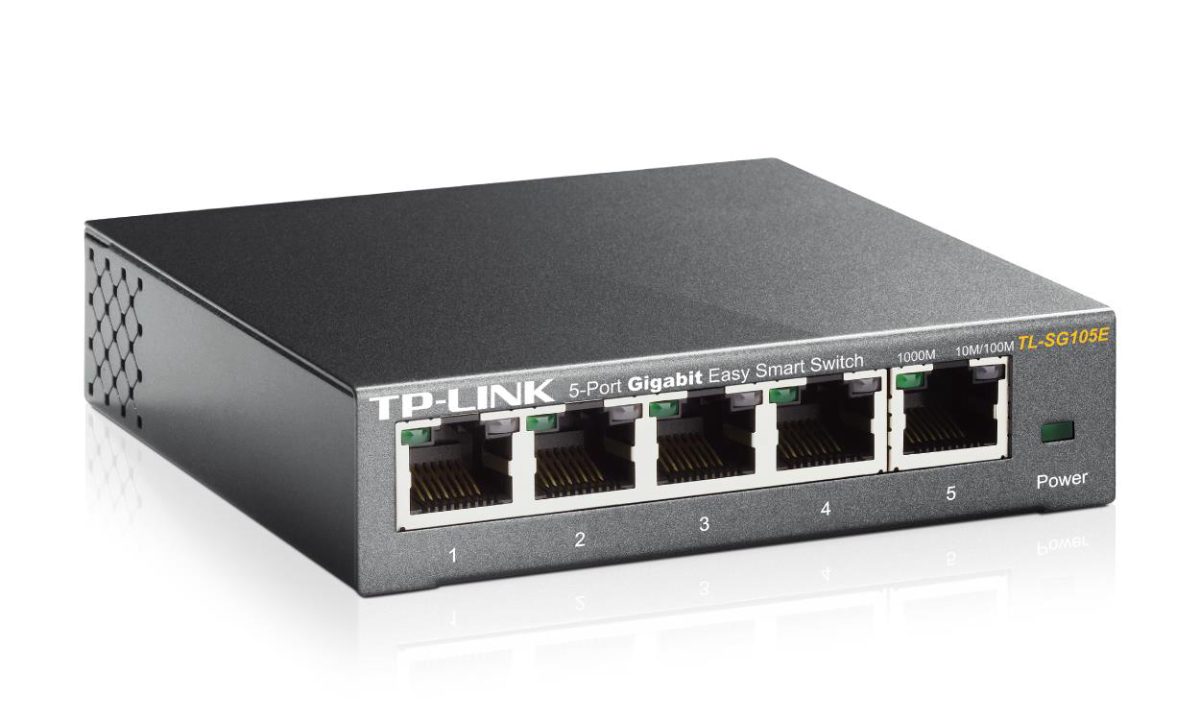

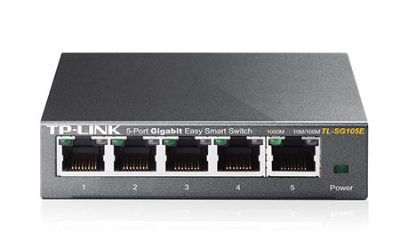

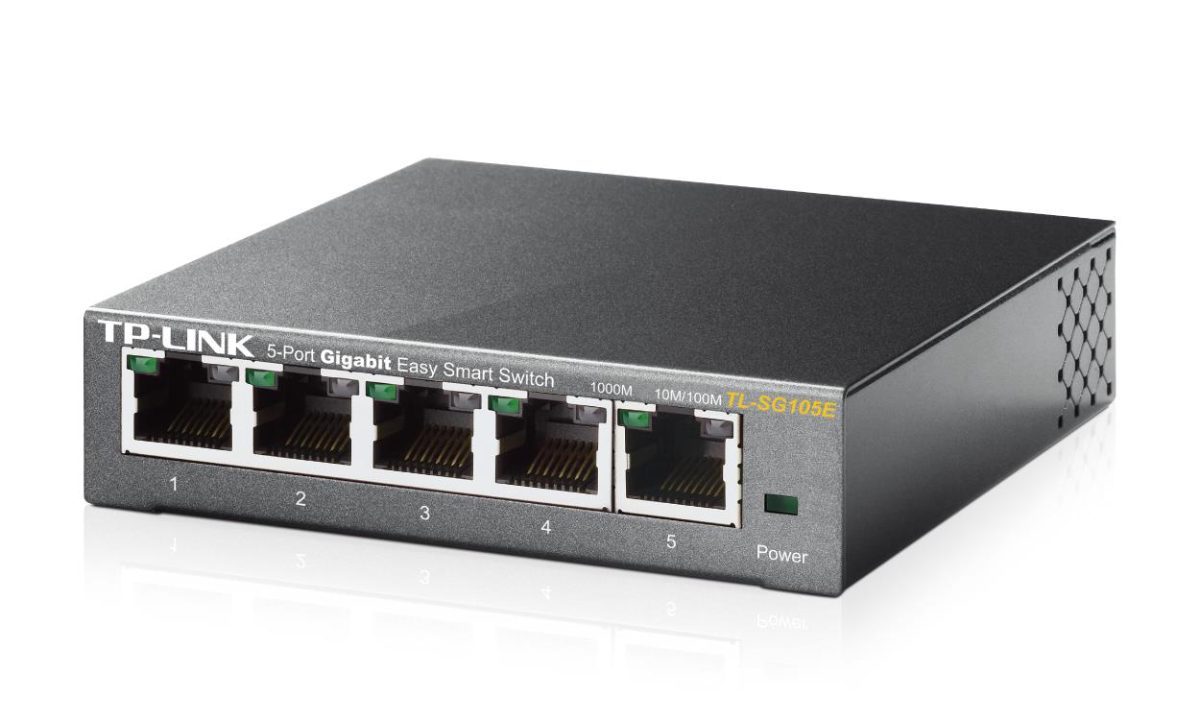

Switch, TL-SG105E, Web managed, Wall mountable
Switch, TL-SG105E, Web managed, Wall mountable, Gigabit Ethernet (copper) ports quantity 5, Power supply type External, 36 month(s)
TP-LINK · 6935364022037
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Expected: around 26.08.
- Warranty: 60 mo.
- Invoice: with every order
- EAN
- 6935364022037
- Brand
- TP-LINK
Description
Easily Expand Your Gigabit Network and Save Energy
5-Port Gigabit Easy Smart Switch
Link Your Devices, Create Convenient Business
The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

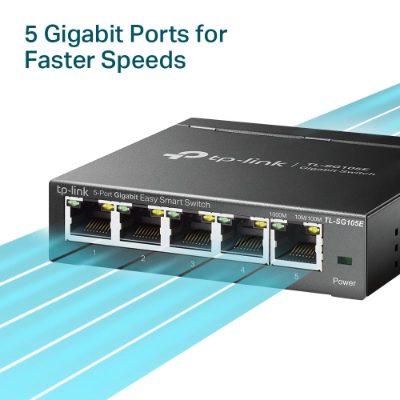

Gigabit Ports for Maximum Speed
5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.
More Features,More Choices
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups
Management Made Easy
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

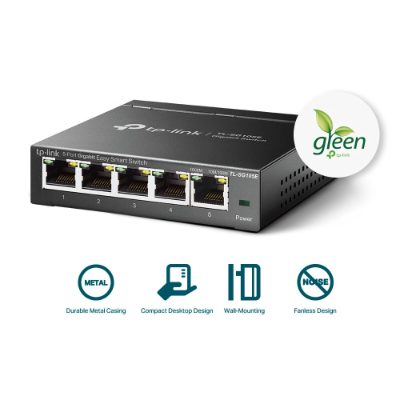

Durable Metal Casing
The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.
Go Green with Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
| Quality of Service (QoS) | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Ethernet (RJ-45) ports | 5 |
| Ethernet type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports | 5 |
| 10 Gigabit support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable type | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Forwarding rate | 7.44 Mpps |
| Jumbo frame size | 16000 |
| Jumbo frames | Yes |
| MAC address table size | 2000 entries |
| Packet buffer memory | 1 MB |
| Store and forward | Yes |
| Switching capacity | 10 Gbit/s |
| IGMP snooping | Yes |
| LED indicators | Yes |
| Colour | Black |
| Compatible operating systems | Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 2.82 W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet | No |
| Heat dissipation | 9.07 BTU/h |
| Operating humidity | 10 - 90 % |
| Operating temperature | 0 - 40 °C |
| Non-operating relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Depth | 98 mm |
| Height | 25 mm |
| Width | 100 mm |
| Cables included | AC |
| Quick start guide included | Yes |
| Rack mount kit included | Yes |
| Manual included | Yes |
| Certification | FCC, CE, RoHS |
| Model | TL-SG105E |
| Model name | 5-Port Gigabit Easy Smart Switch |
