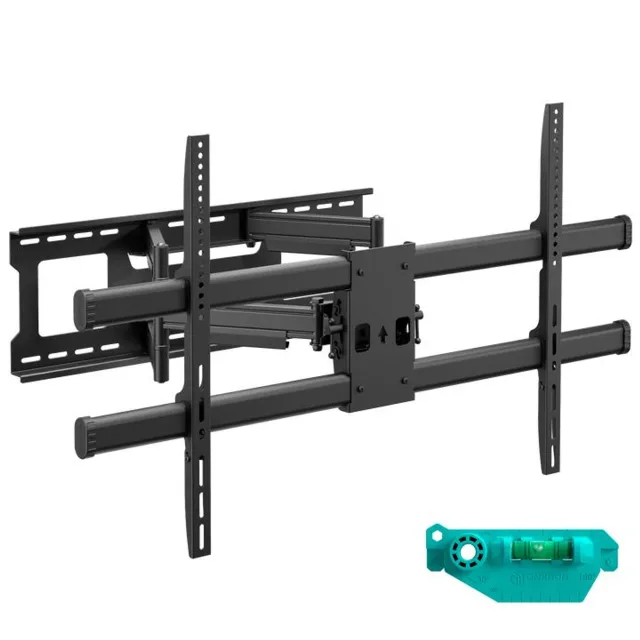

TV SET ACC WALL MOUNT/42-120"/BLACK M10-B ONKRON

Specifications

Unit Calculated Weight: 16.5 kg
Unit Calculated Volume: 0.0525 cubm
Units per Shipping Box: 1
Units per Pallet: 0
Summary: ONKRON Full Motion Wall Mount 42"-120" max 220lbs, Black. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 1000 x 600 mm. Tilt angle range: -13 - 9°, Swivel angle range: -45 - 45°, Distance to the wall (min): 9 cm, Distance to the wall (max): 60 cm. Product colour: Black
Vendor Homepage: https://onkron.us/products/m10-b
Category Code: TMS
Unit Box Height: 0.37
Unit Box Length: 0.86
Unit Box Width: 0.165
Model: M10

Maximum screen size: 120 "
Maximum VESA mount: 1000 x 600 mm
Maximum weight capacity: 100 kg
Maximum weight capacity (per display): 100 kg
Minimum screen size: 42 "
Minimum VESA mount: 200 x 100 mm
Mounting type: Wall
Number of displays supported: 1
Panel mounting interface: 200 x 100/200 x 200/200 x 300/200 x 400/200 x 600/300 x 400/300 x 500/300 x 600/400 x 200/400 x 300/400 x 400/400 x 500/400 x 600/500 x 200/500 x 400/500 x 500/500 x 600/600 x 200/600 x 300/600 x 400/600 x 600/700 x 400/700 x 500/800 x/800 x 200/800 x 400 mm
