TV SET ACC WALL MOUNT MEDICAL/10-30" FPMA-HAW100HC NEOMOUNTS
NEOMOUNTS
The invoice is sent as soon as you order.
- Payment: bank transfer or cash on delivery
- Delivery: 1–3 working days, anywhere in Latvia
- Warranty: 60 mo.
- Invoice: with every order
- Brand
- NEOMOUNTS
Description
The Neomounts wall mount, model FPMA-HAW100HC is a tilt- and swivel wall mount for medical flat screens up to 32". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.
Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

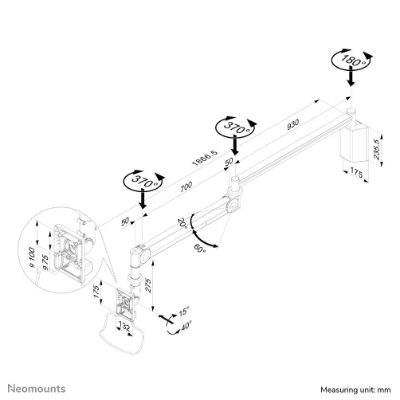

Neomounts FPMA-HAW100HC has two pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 6 - 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Specifications
| Maximum distance to wall | 1700 mm |
| Maximum screen size | 32 " |
| Maximum VESA pattern | 100 x 100 mm |
| Maximum load | 12 kg |
| Maximum load per display | 12 kg |
| Minimum screen size | 10 " |
| Minimum VESA pattern | 75 x 75 mm |
| Mounting type | Wall |
| Supported displays | 1 |
| VESA pattern | 100 x 100/75 x 75 mm |
| Cable management | Yes |
| Depth adjustment range | 0 - 1870 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 1700 mm |
| Height adjustment type | Gas spring |
| Number of pivot points | 3 |
| Swivel | Yes |
| Swivel angle | 370 ° |
| Swivel angle range | 0 - 370 ° |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 55 ° |
| Material | Aluminium |
| Colour | White |
| Depth | 1870 mm |
| Height | 1700 mm |
| Weight | 17800 g |
| Minimum weight | 6 kg |
| Country of origin | Taiwan |
