WESTERN DIGITAL

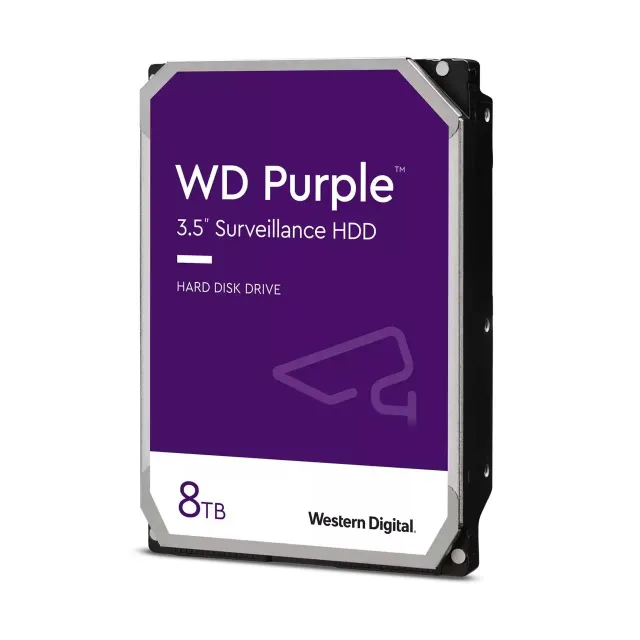

HDD|WESTERN DIGITAL|Purple|8TB|SATA 3.0|256 MB|5640 rpm|3,5"|WD85PURZ

About this product

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Industry-Leading Storage. Surveillance You Can Trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most. WD Purple delivers smart video storage that you can trust and are backed by a 3-year limited warranty6.

Western Digital's Exclusive AllFrame™ Technology
All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced Workload Ratings
WD Purple drives feature a workload rating of up to 180TB/year2 - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple Cameras, Multiple Streams
Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Designed for Surveillance Solutions
With an MTBF of up to 1 million hours3, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components7 and support in storage systems with more than eight drive bays4, WD Purple drives deliver reliable operation even in harsh environments.

Wide Compatibility. Seamless Integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.

  • Engineered for mainstream surveillance systems
  • WD AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to mainstream surveillance applications
  • Supports up to 180TB/yr workload rate and up to 16 bays

Specifications

Unit Calculated Weight
0.755 kg
Unit Calculated Volume
0.001463 cubm
Units per Shipping Box
20
Summary
Western Digital Blue Purple. HDD capacity: 8 TB, HDD speed: 5400 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III
Vendor Homepage
https://www.westerndigital.com/products/internal-drives/wd-purple-sata-hdd#WD30PURZ
Category Code
HDU
Unit Box Height
0.03
Unit Box Length
0.15
Unit Box Width
0.1
HDD Family name
Purple

Features

Component for
Surveillance system
HDD capacity
8000 GB
HDD interface transfer rate
6 Gbit/s
HDD size
3.5 "
HDD speed
5400 RPM
HDD sustained transfer rate
210 MiB/s
Interface
Serial ATA III
Mean time between failures (MTBF)
1000000 h
Start/stop cycles
300000
Storage drive buffer size
256 MB
Type
HDD

Power

Operating voltage
5 / 12 V
Power consumption (idle)
23 W

Operational conditions

Non-operating shock
250 G
Operating shock
30 G
Operating temperature (T-T)
0 - 65 °C
Storage temperature (T-T)
-40 - 70 °C

Weight & dimensions

Depth
147 mm
Height
26.1 mm
Weight
650 g
Width
101.6 mm

Packaging data

Quantity per pack
1 pc(s)

Other features

Compliance certificates
RoHS

Identifiers

Brand
WESTERN DIGITAL
Categories
Storage
Model
WD85PURZ
EAN
718037889245
